Camshaft Timing Oil Control Vale ASSY RH: Components

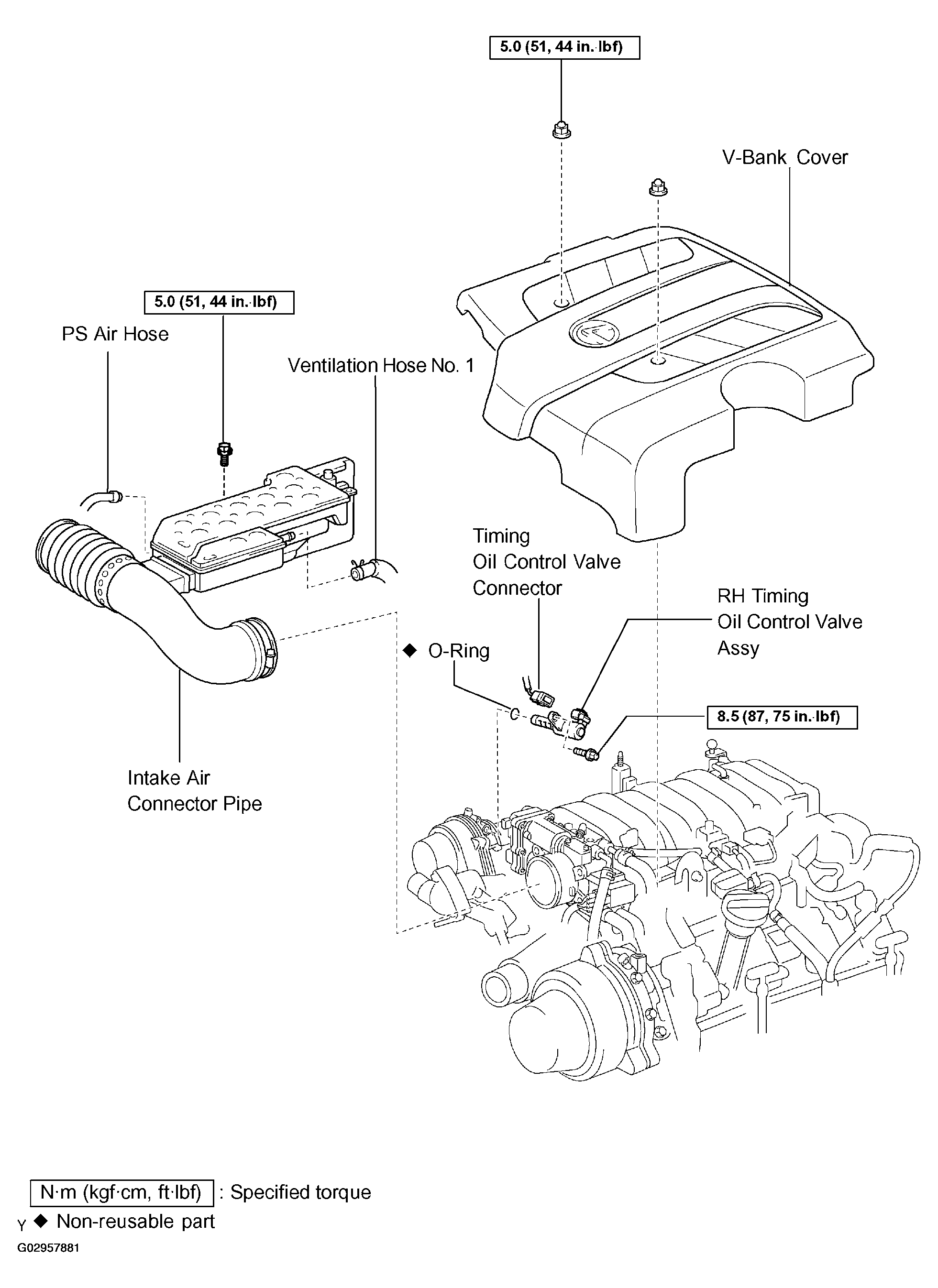

Fig 1: Identifying Camshaft Timing Oil Control Vale Assy RH Components & Replacements
G02957881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
