Location
SFI System: Location

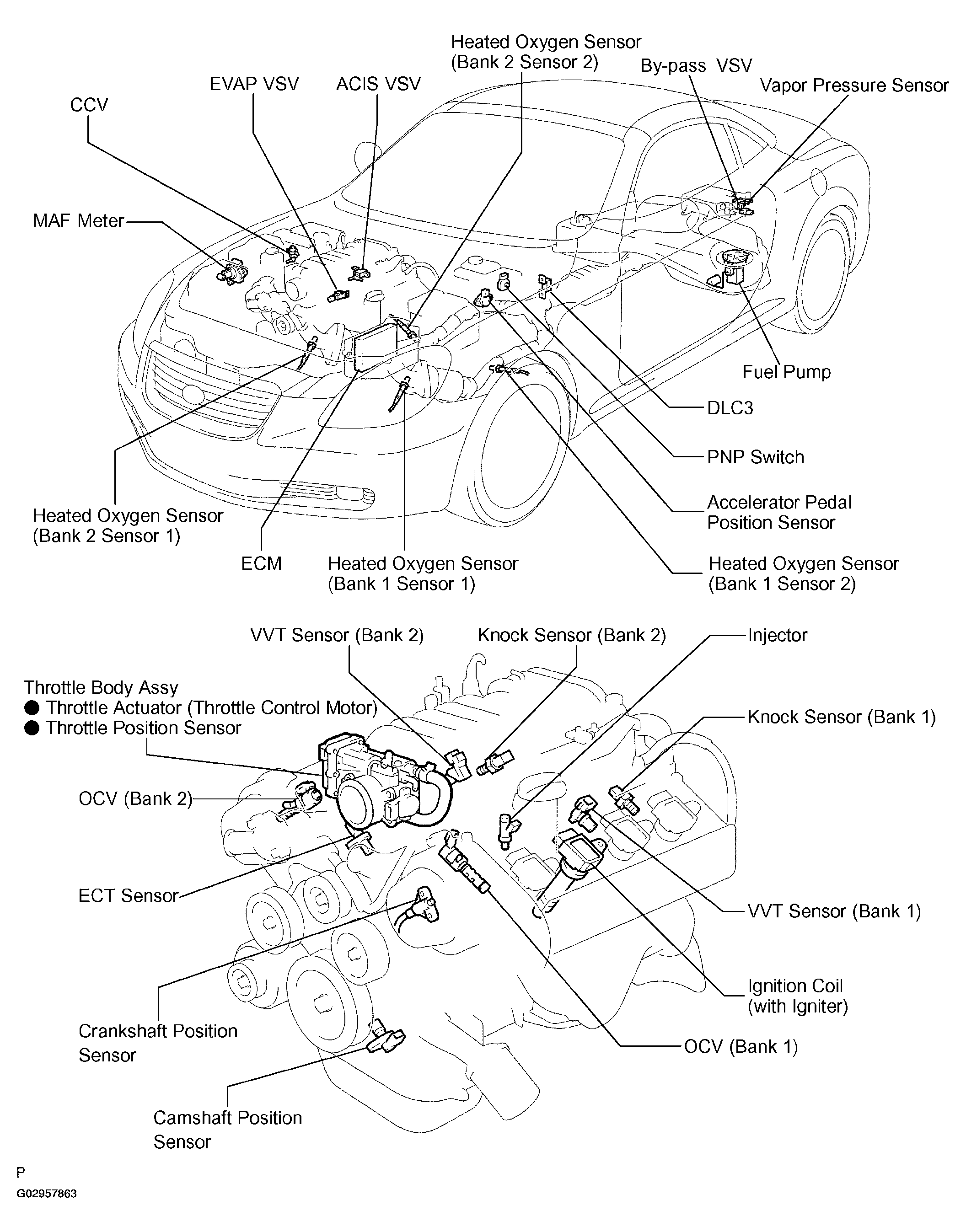

Fig 1: Identifying Location Of SFI System Components & Replacements
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
