Throttle Body ASSY: Components

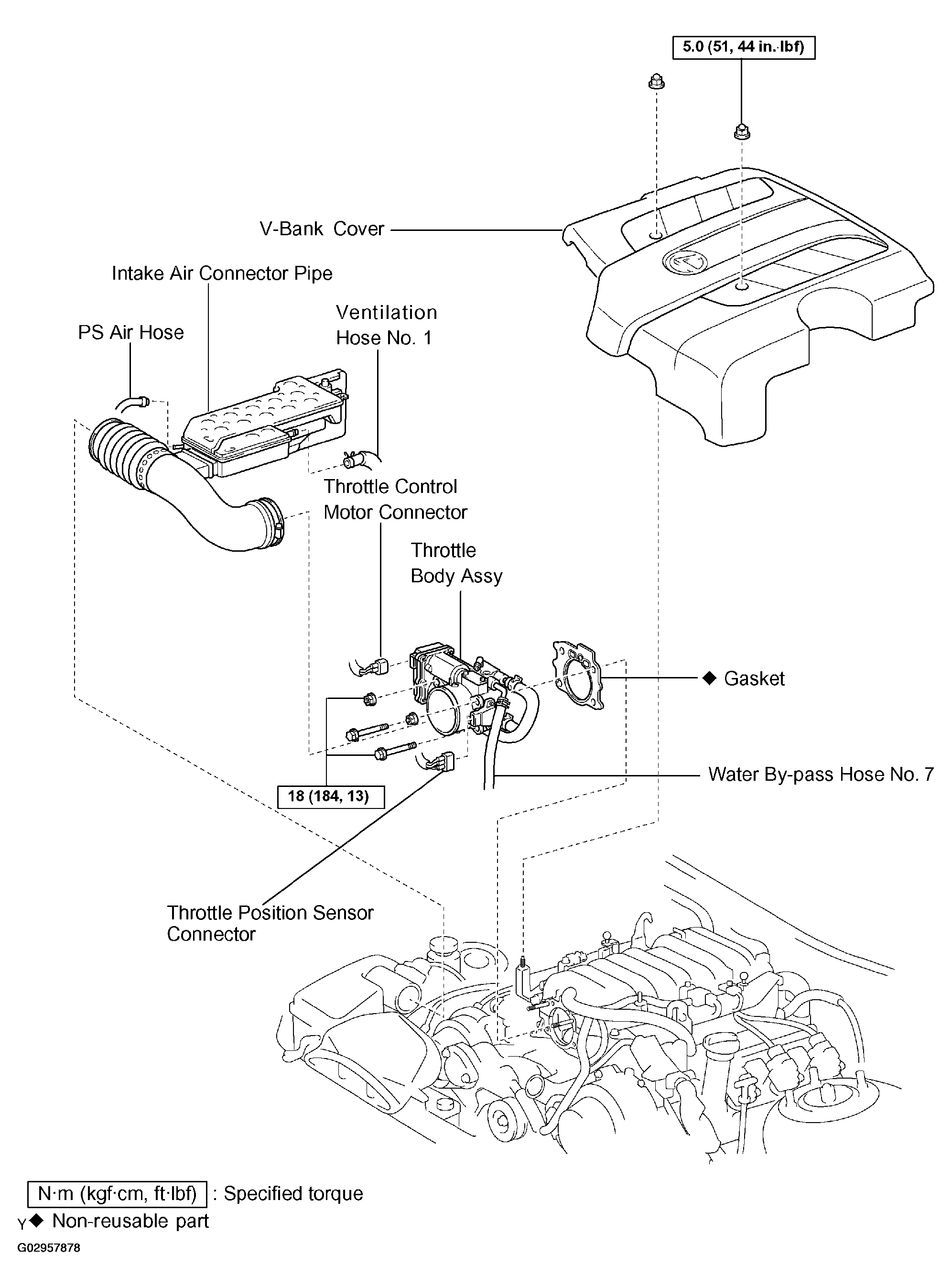

Fig 1: Identifying Throttle Body Assy Components & Replacements
G02957878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
