System Diagram — 2005 Lexus SC 430 Service Manual ~ FixVault

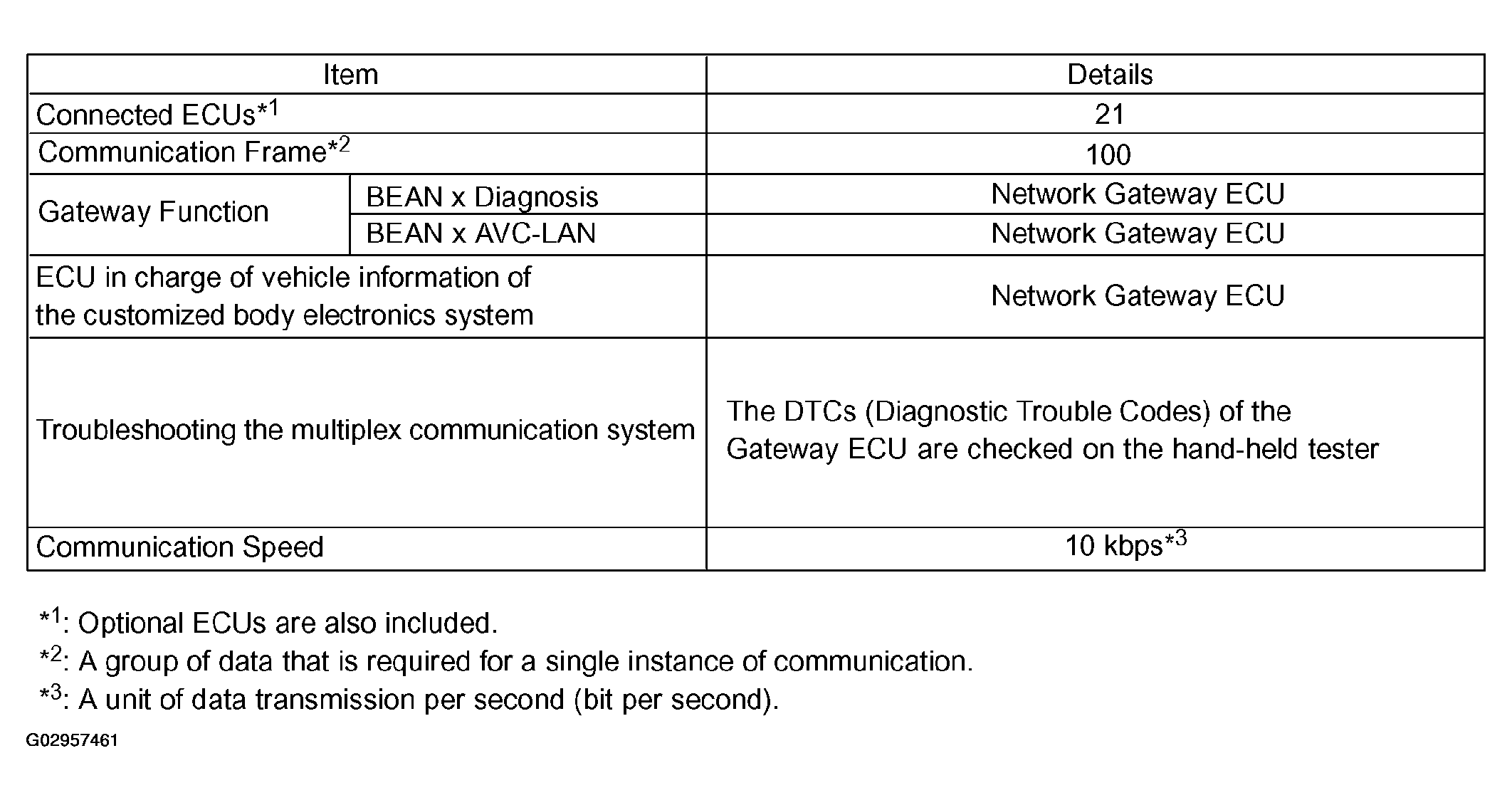

Fig 1: Multiplex Communication - System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

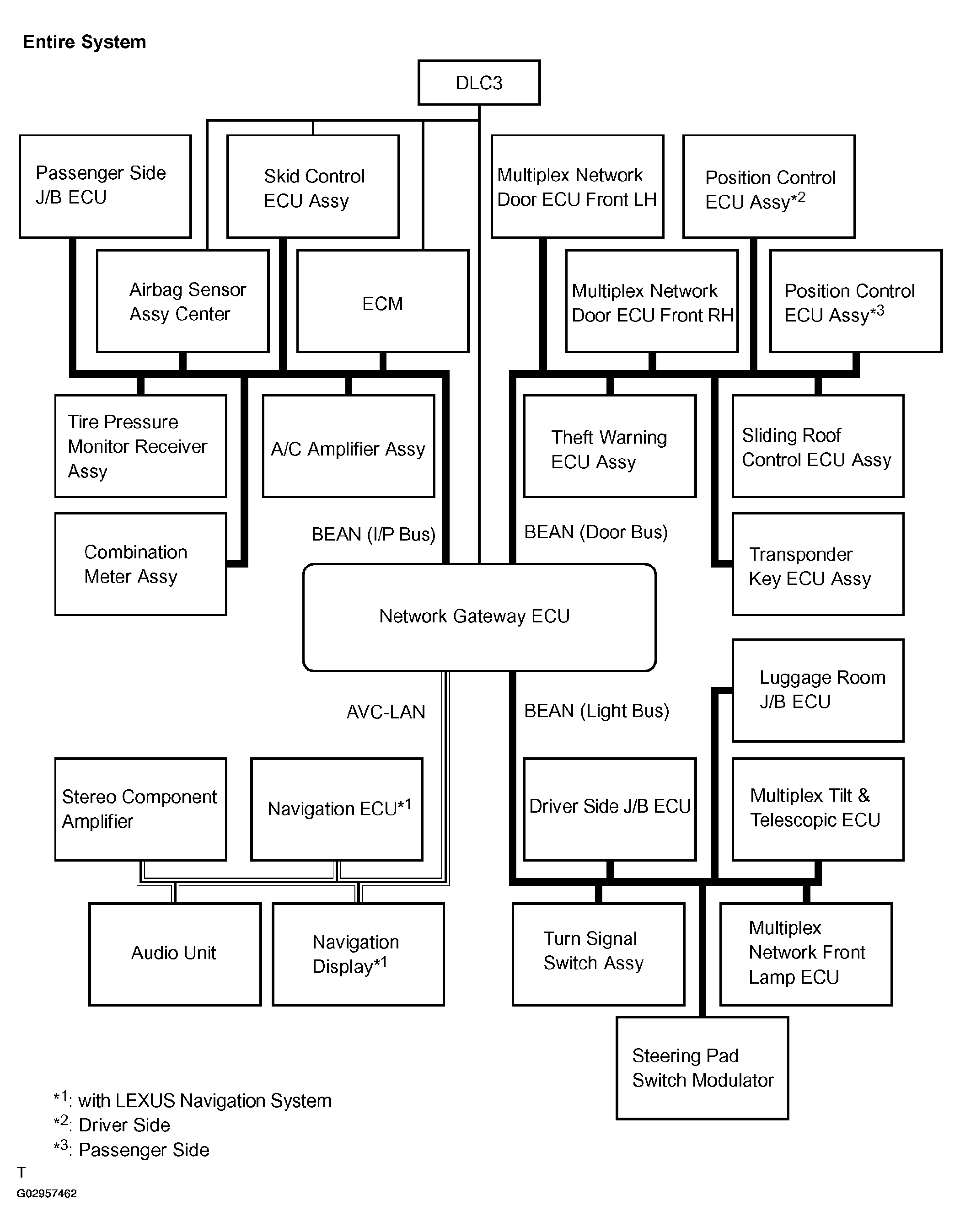

Fig 2: Multiplex Communication - Entire System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

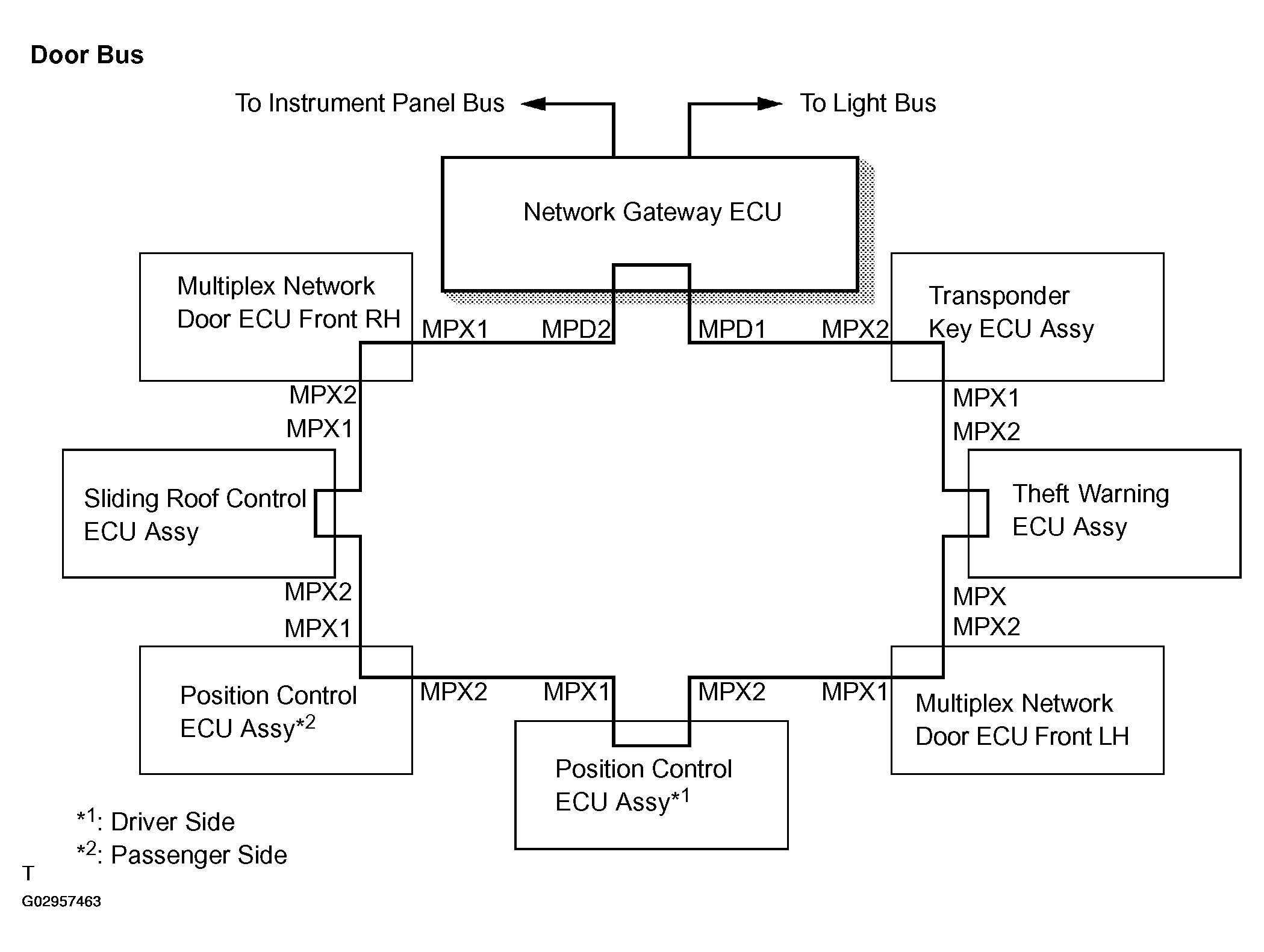

Fig 3: Multiplex Communication - Door Bus System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

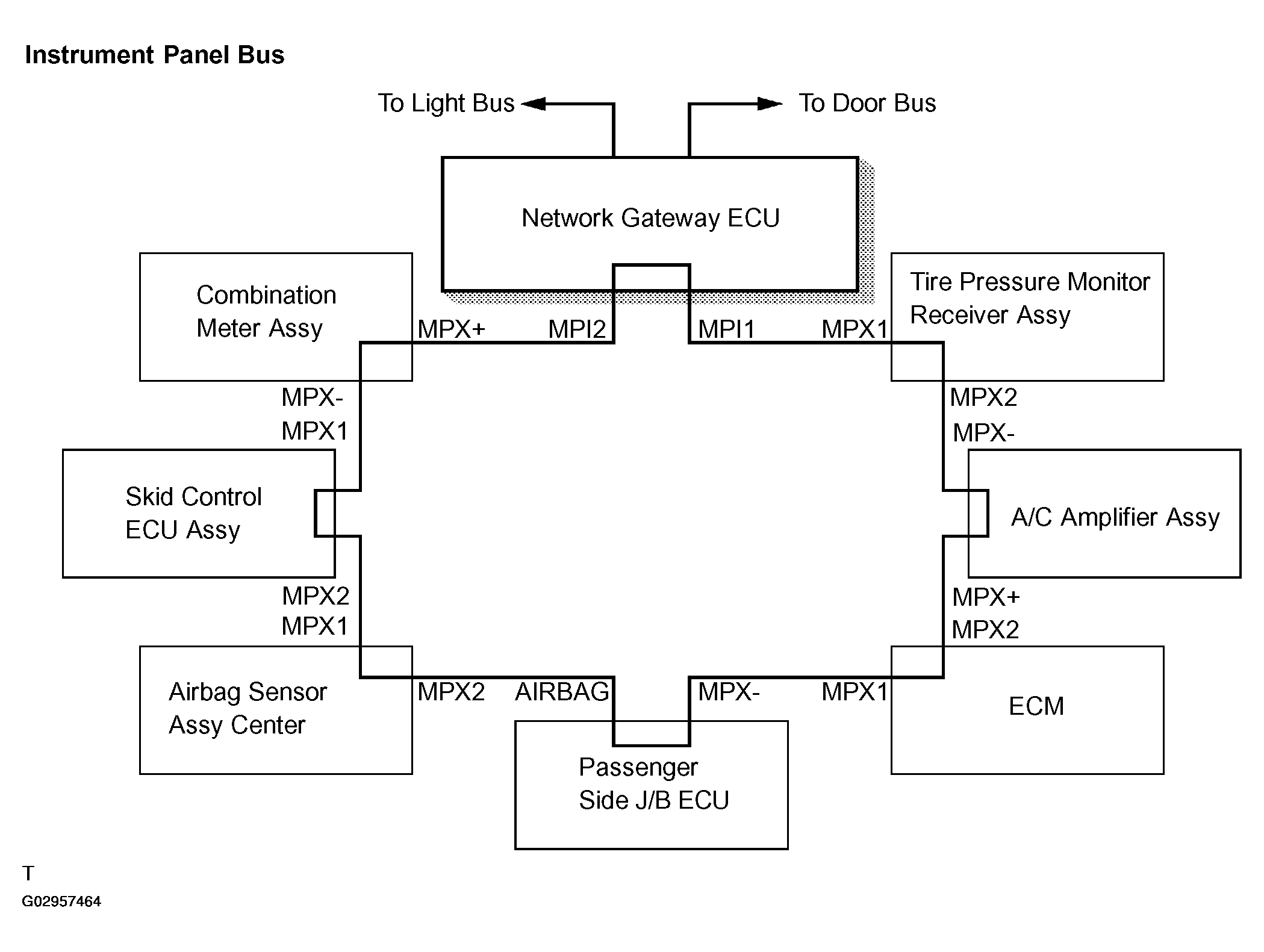

Fig 4: Multiplex Communication - Instrument Panel Bus System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

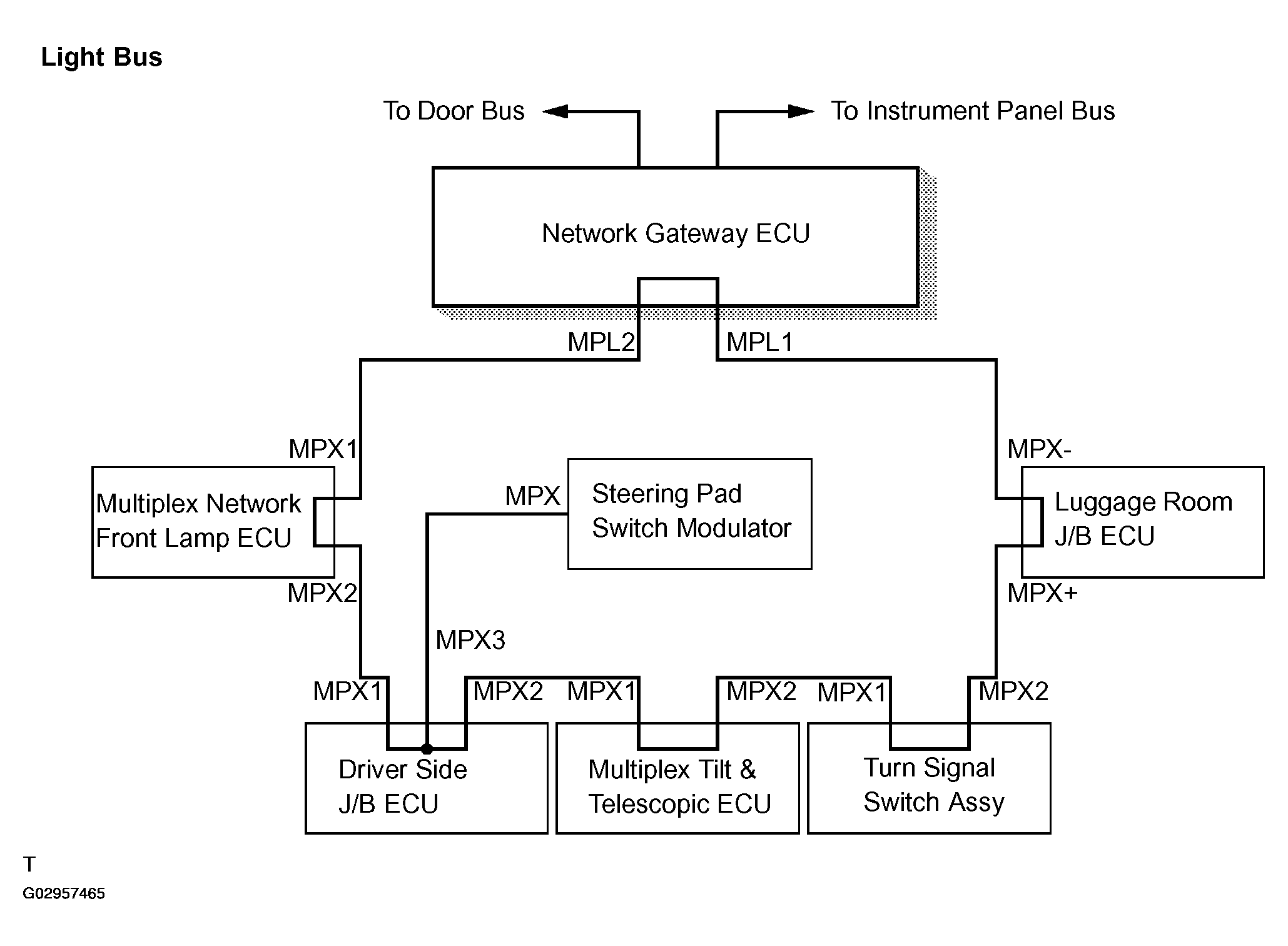

Fig 5: Multiplex Communication - Light Bus System Diagram

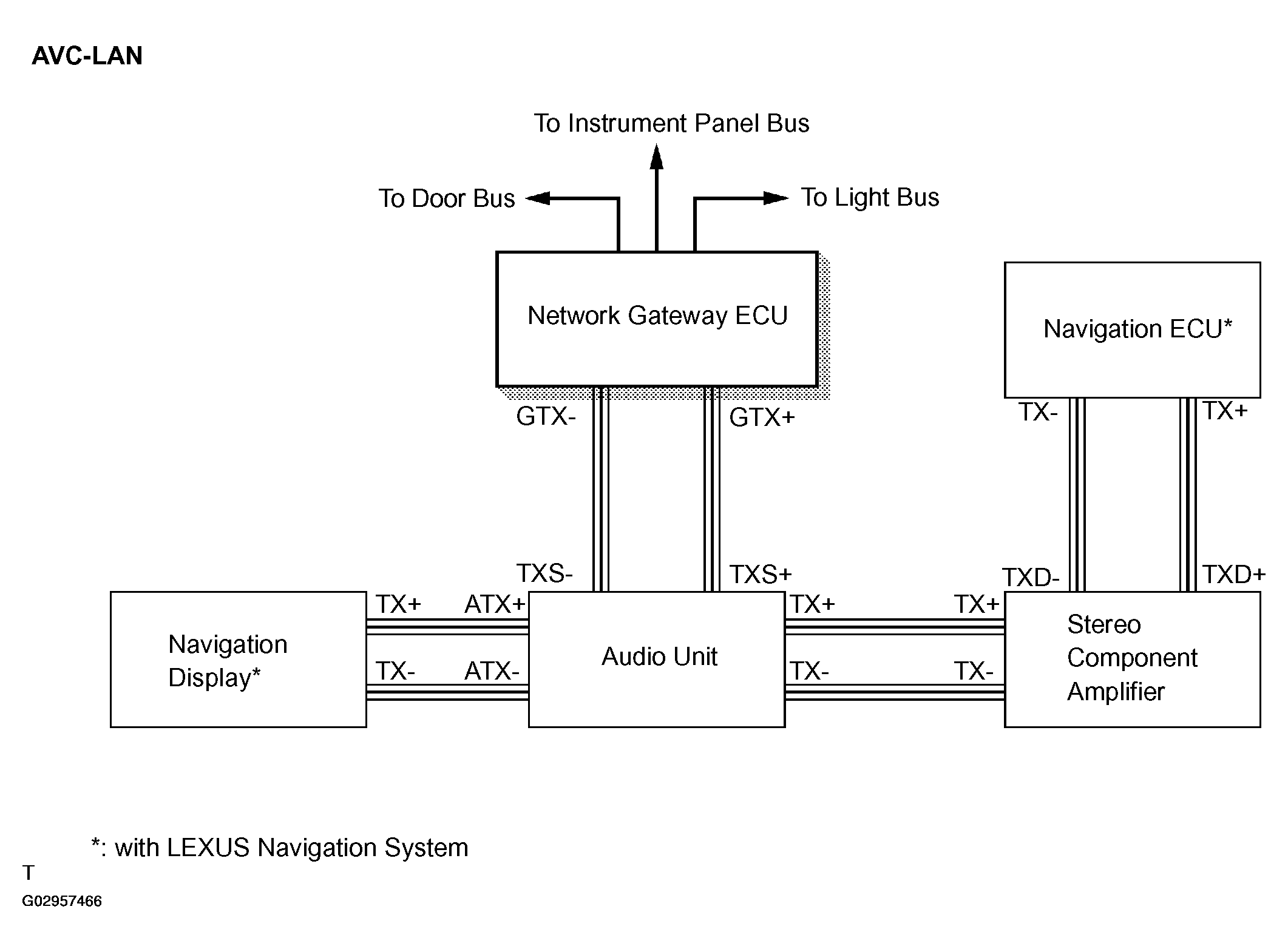

Fig 6: Multiplex Communication - AVC-LAN System Diagram
