Diagnostic Trouble Code Table

If a trouble code is indicated during the DTC check, check the circuit listed for that code in Fig 1. Then proceed to the appropriate DTC.

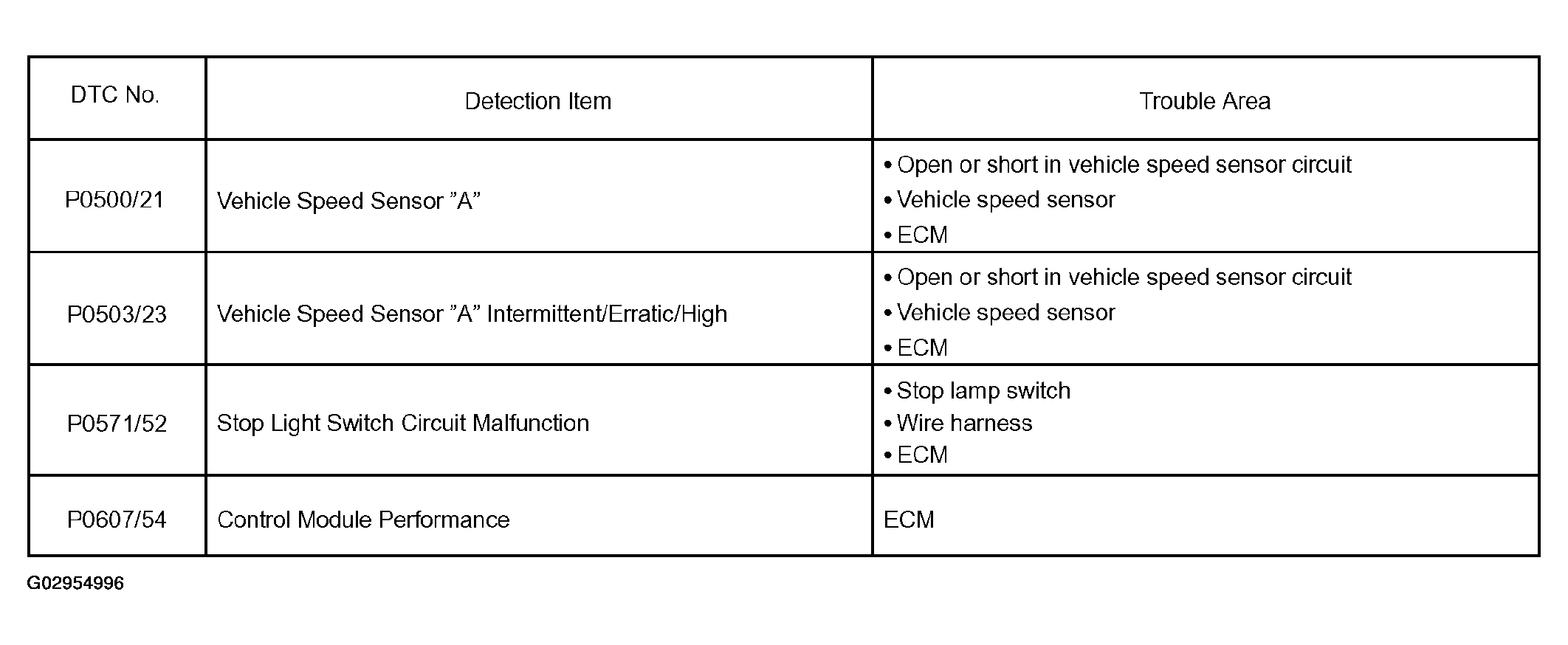

Fig 1: Diagnostic Trouble Code Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
