Cruise Control System - Diagnostics
›
TC Terminal Circuit
›
Wiring Diagram
TC Terminal Circuit: Wiring Diagram

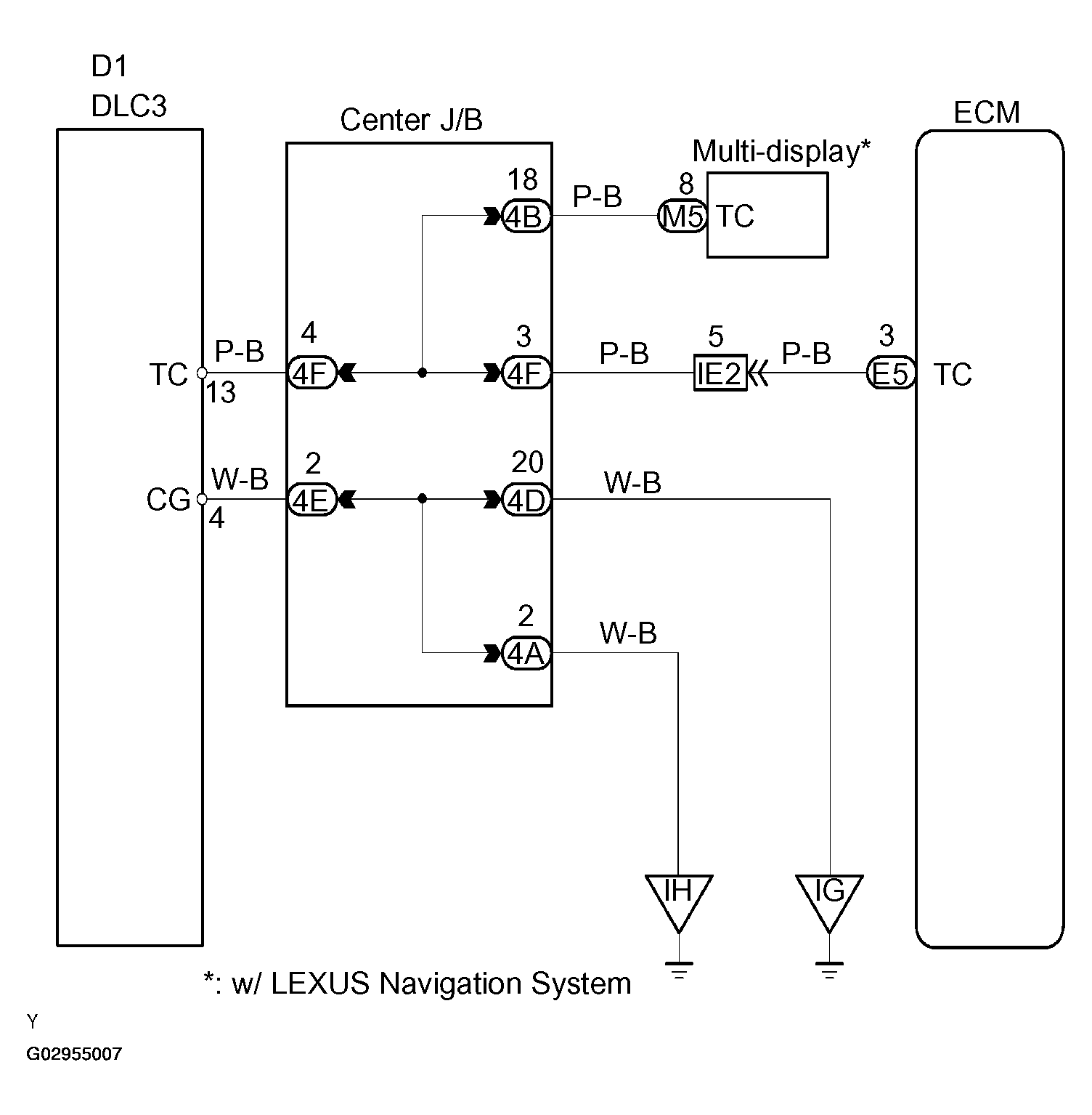

Fig 1: Wiring Diagram - TC Terminal Circuit
