Network Gateway Ecu: Components

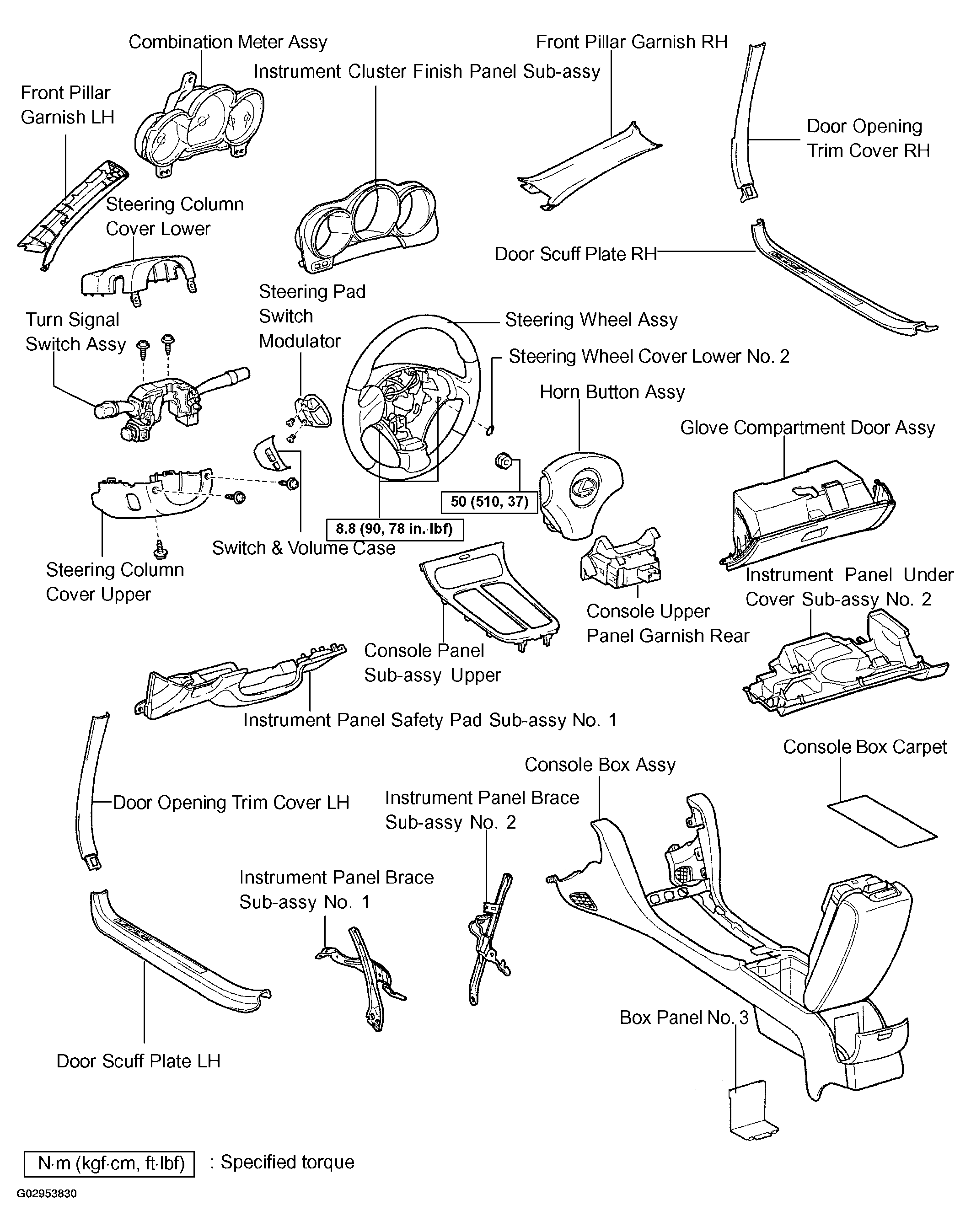

Fig 1: Exploded View Of Network Gateway ECU Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

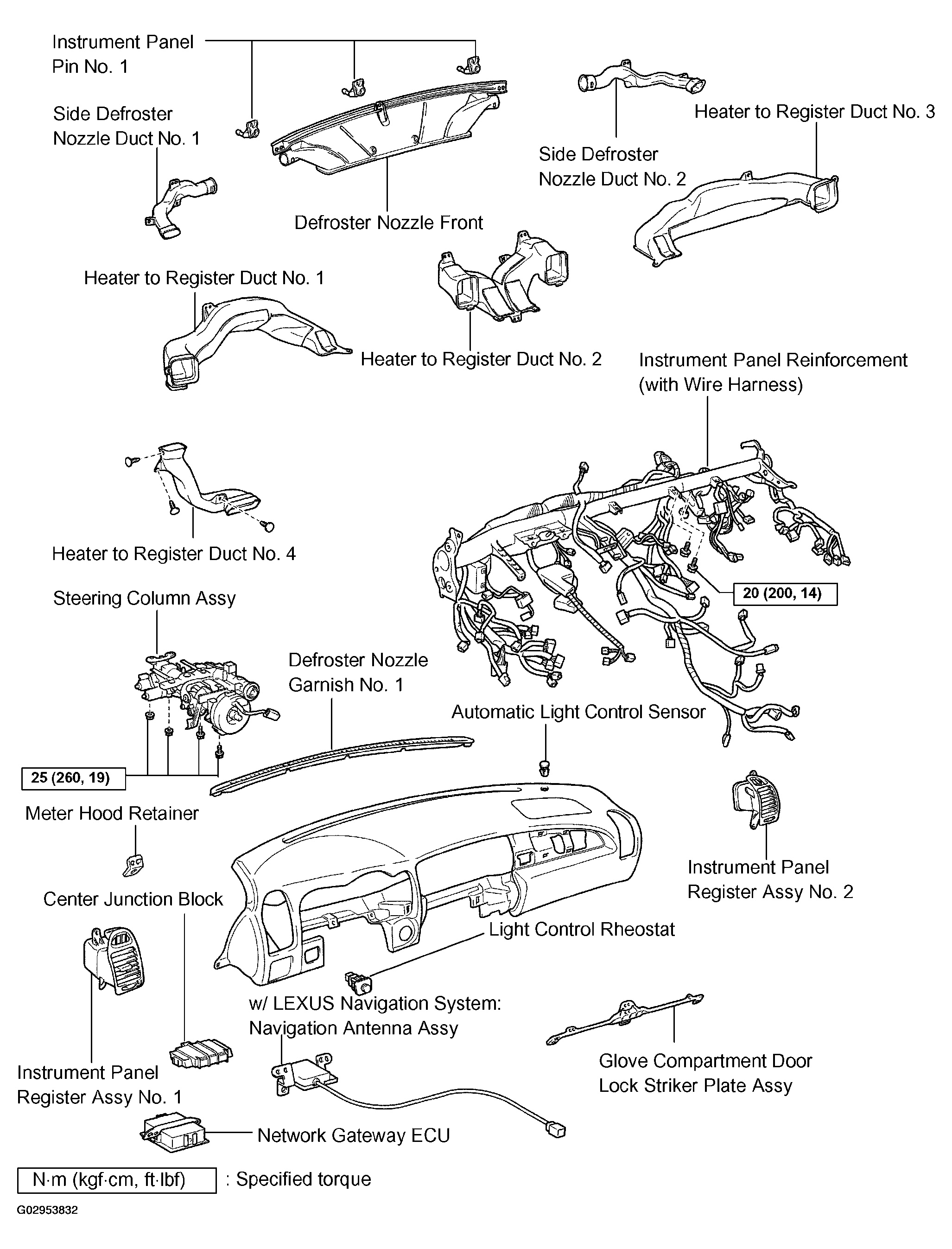

Fig 2: Exploded View Of Network Gateway ECU Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

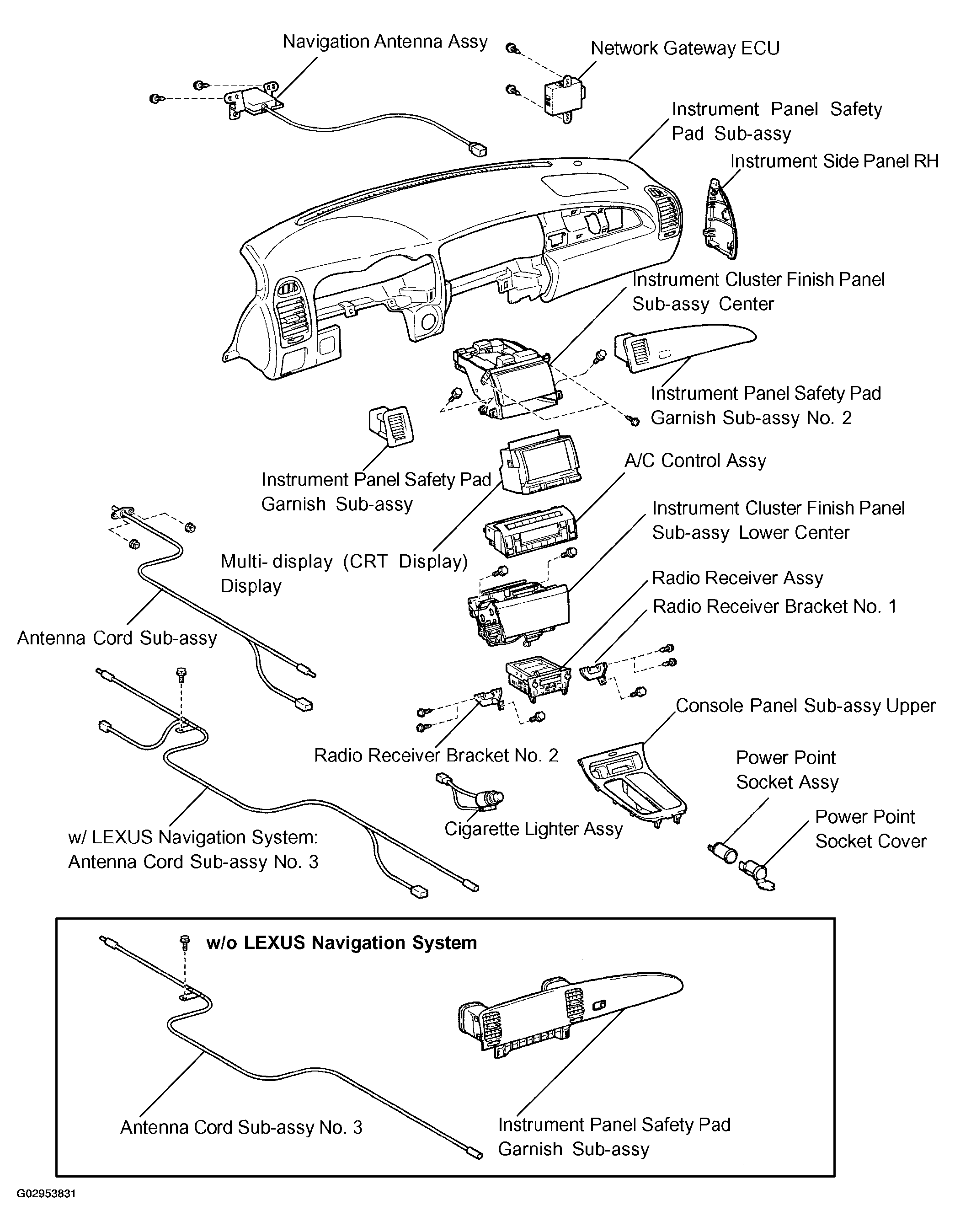

Fig 3: Exploded View Of Network Gateway ECU Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
