Stereo Component Amplifier ASSY: Replacement

HINT:

• See COMPONENTS  .
• The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
   CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE REAR FLOOR FINISH PLATE (See  REPLACEMENT  )
3. REMOVE LUGGAGE COMPARTMENT FLOOR MAT (See  REPLACEMENT  )
4. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH (See  REPLACEMENT  )
5. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH (See  REPLACEMENT  )
6. REMOVE SPARE WHEEL COVER ASSY (See  REPLACEMENT  )
7. REMOVE TOOL BOX COVER (See  REPLACEMENT  )
8. REMOVE LUGGAGE COMPARTMENT TRIM COVER SUB-ASSY REAR (See  REPLACEMENT  )
9. REMOVE TONNEAU COVER ASSY (See  REPLACEMENT  )
10. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LOWER (See  REPLACEMENT  )
11. REMOVE LUGGAGE COMPARTMENT FLOOR MAT (See  REPLACEMENT  )
12. REMOVE STEREO COMPONENT AMPLIFIER ASSY
    1. Remove the 2 bolts and nut.

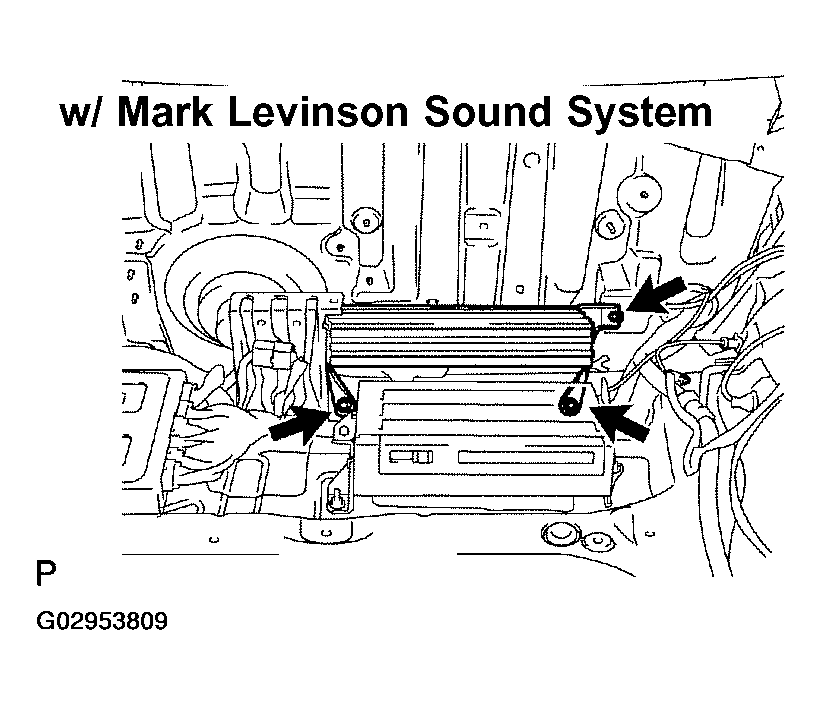

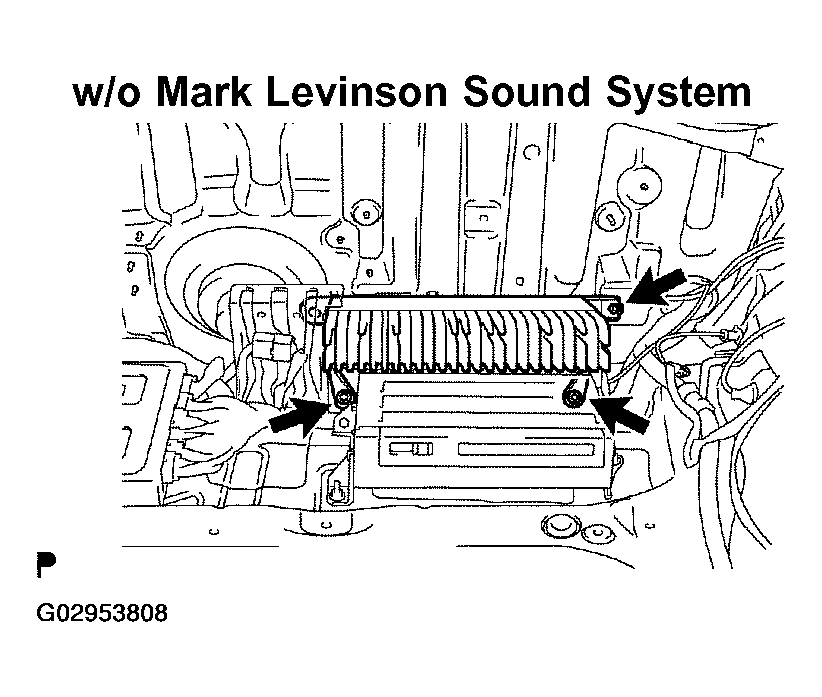

       Fig 1: Removing Bolts & Nut

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 2 connectors, then remove the amplifier.
       Fig 2: Disconnecting Connectors & Removing Stereo Component Amplifier

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. REMOVE AMPLIFIER BRACKET NO.1
    1. Remove the 2 screws and bracket.

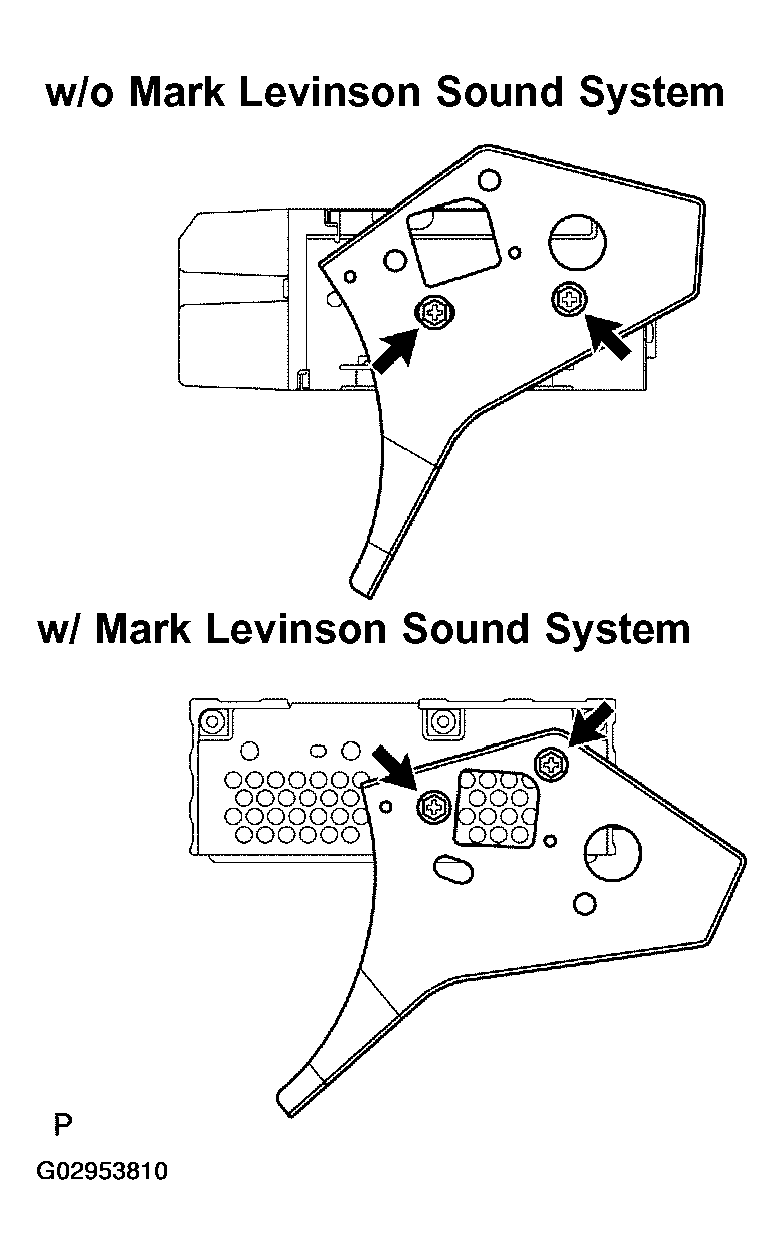

       Fig 3: Removing Amplifier Bracket No. 1 With Screws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
14. REMOVE AMPLIFIER BRACKET NO.2
    1. Remove the 2 screws and bracket.

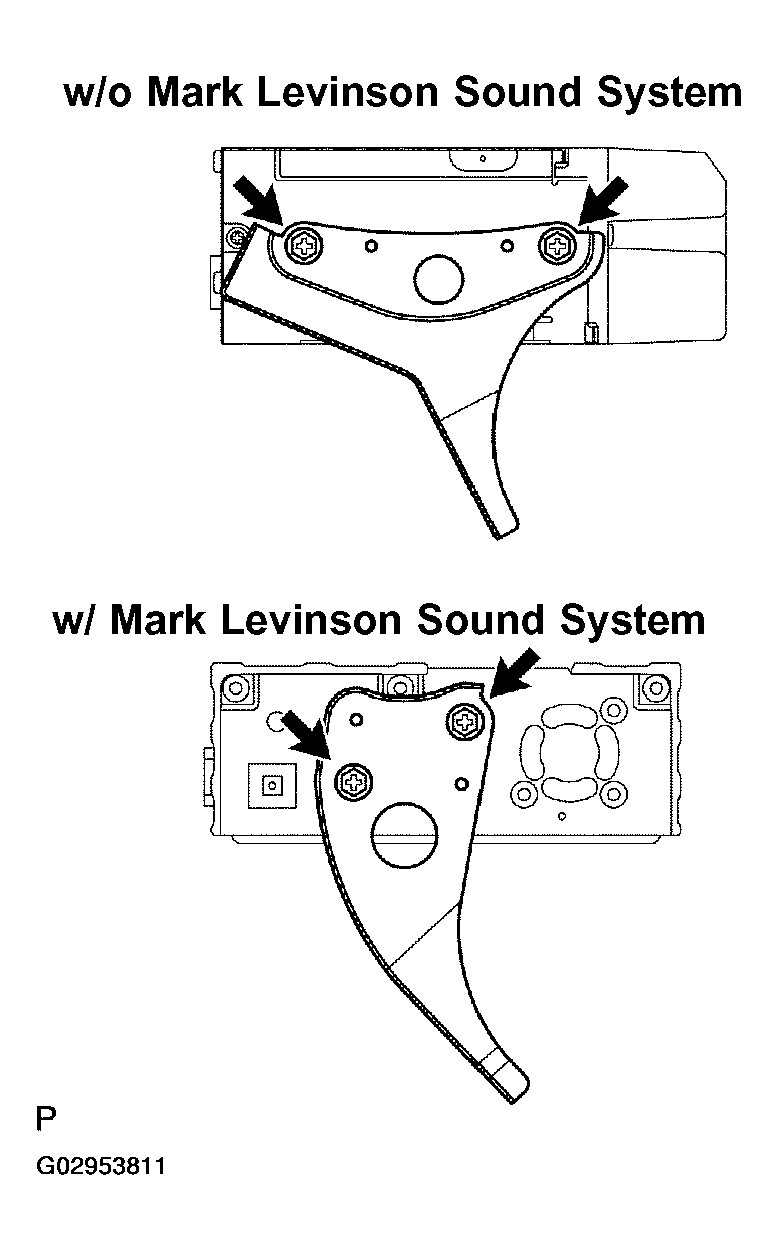

       Fig 4: Removing Amplifier Bracket No. 2 With Screws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
16. PERFORM INITIALIZATION (See  INITIALIZATION  )
    NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
