Turn Signal Switch ASSY: Replacement

HINT:

The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
   CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY (See  REPLACEMENT  )
3. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY NO. 1 (See  REPLACEMENT  )
4. REMOVE STEERING COLUMN COVER LOWER (See  OVERHAUL  )
5. REMOVE STEERING COLUMN COVER UPPER (See  OVERHAUL  )
6. REMOVE TURN SIGNAL SWITCH ASSY
   1. Disconnect the connector.
   2. Remove the 2 screws and switch.

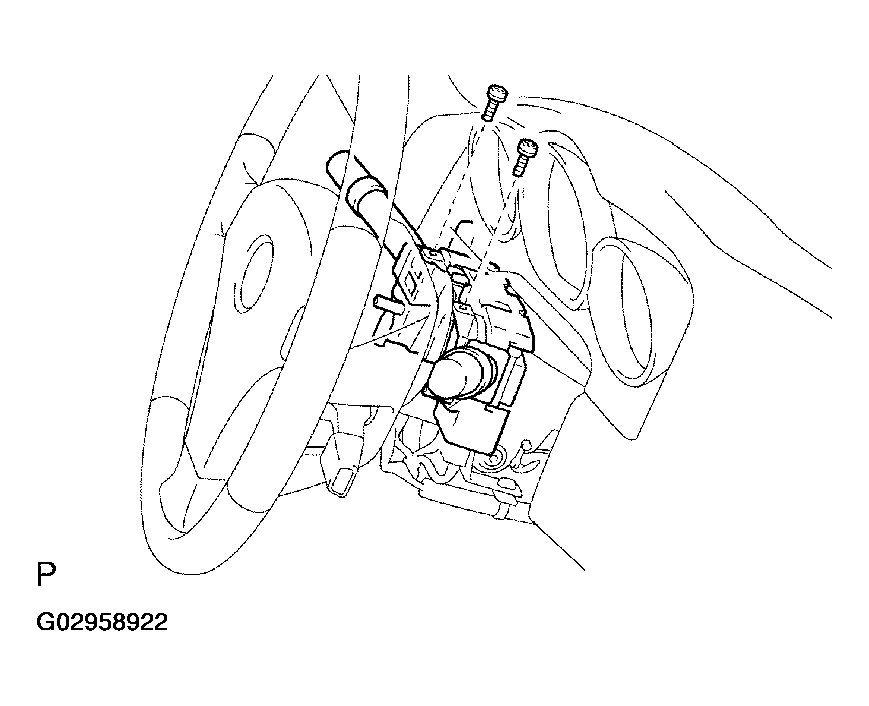

      Fig 1: Removing Turn Signal Switch Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY
8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
9. PERFORM INITIALIZATION (See  INITIALIZATION  )
   NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
10. CHECK SRS WARNING LAMP (See  ON-VEHICLE INSPECTION  )
