Diagnostic Trouble Code Table

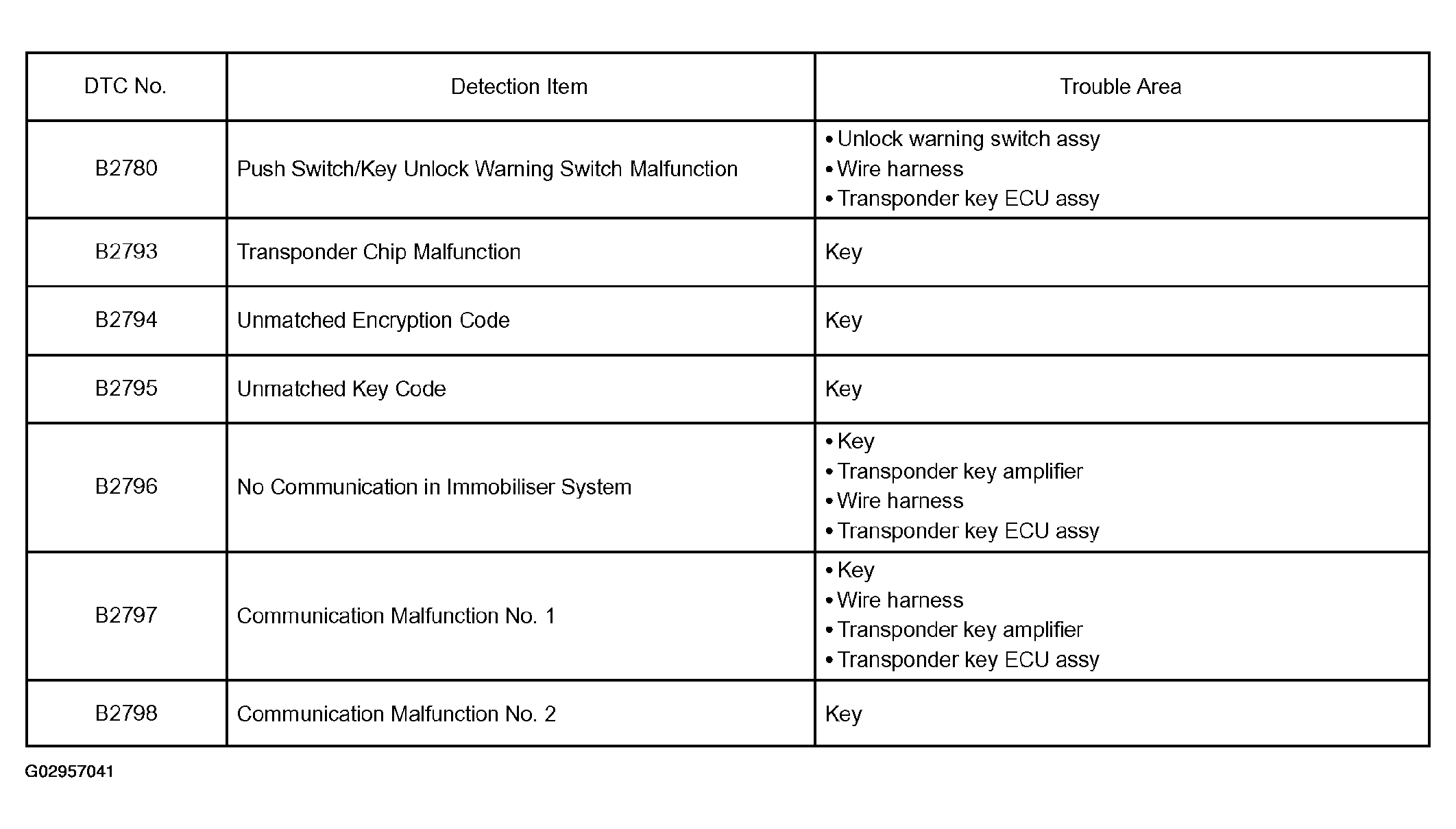

DIAGNOSTIC TROUBLE CODE TABLE
| DTC | Description |
|---|---|
| DTC B2780 | PUSH SWITCH/KEY UNLOCK WARNING SWITCH MALFUNCTION |
| DTC B2793 | TRANSPONDER CHIP MALFUNCTION |
| DTC B2794 | UNMATCHED ENCRYPTION CODE |
| DTC B2795 | UNMATCHED KEY CODE |
| DTC B2796, DTC B2798 | NO COMMUNICATION IN IMMOBILIZER SYSTEM |
| DTC B2797 | COMMUNICATION MALFUNCTION NO.1 |
| DTC B2799 | ENGINE IMMOBILIZER SYSTEM MALFUNCTION |
- TRANSPONDER KEY ECU DTC TABLE
- ECM DTC TABLE NOTE: The DTCs for the immobilizer system are specified above. If the other codes are output, check the SFI system's DTC table.
