Key Confinement Prevention Function Does Not Work Properly (Unlock Warning Switch Circuit): Wiring Diagram

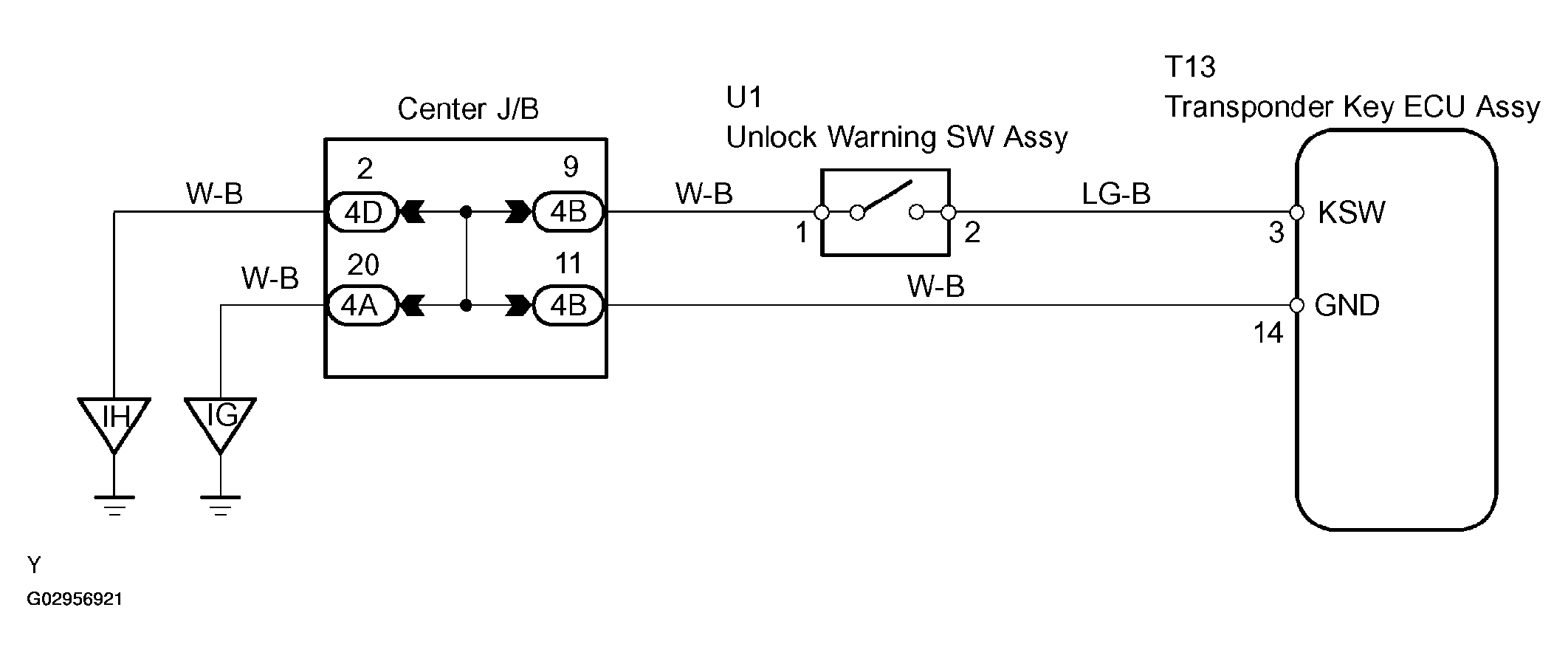

Fig 1: Identifying Warning Switch Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
