Data List/Active Test

HINT:

Using the hand-held tester's DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to save time.

1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch ON.
3. Read the DATA LIST.

Transponder key ECU assy:

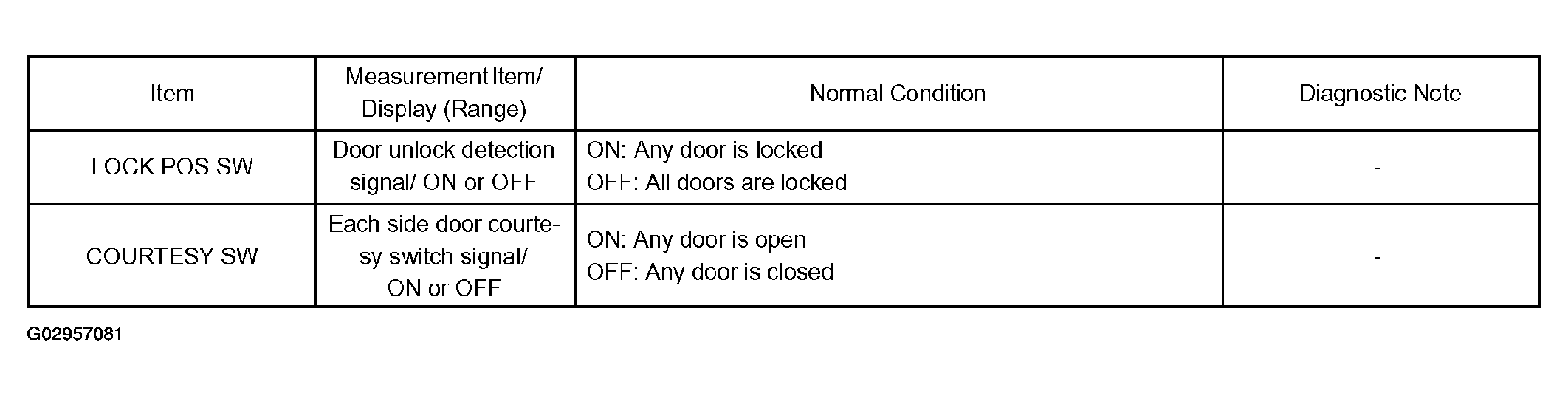

Fig 1: Read Data List Table - Transponder Key ECU Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Driver side J/B ECU:

Fig 2: Read Data List Table - Driver Side J/B ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Luggage room J/B ECU:

Fig 3: Read Data List Table - Luggage Room J/B ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Multiplex network door ECU front LH (driver door ECU):

Fig 4: Read Data List Table - Multiplex Network Door ECU Front LH (Driver Door ECU)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Multiplex network door ECU front RH (passenger door ECU):

Fig 5: Read Data List Table - Multiplex Network Door ECU Front RH (Passenger Door ECU)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Performing the hand-held tester's ACTIVE TEST allows relay, VSV, actuator and other items to be operated without removing any parts. Performing the ACTIVE TEST early in troubleshooting is one way to save time.

The DATA LIST can be displayed during the ACTIVE TEST.

1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch ON.
3. Perform the ACTIVE TEST by following the directions on the tester screen.

Transponder key ECU assy:

Theft warning ECU assy:
