Wireless Door Lock Control System - Diagnostics
›
Only Wireless Control Function Is Inoperative
›
Wiring Diagram
Only Wireless Control Function Is Inoperative: Wiring Diagram

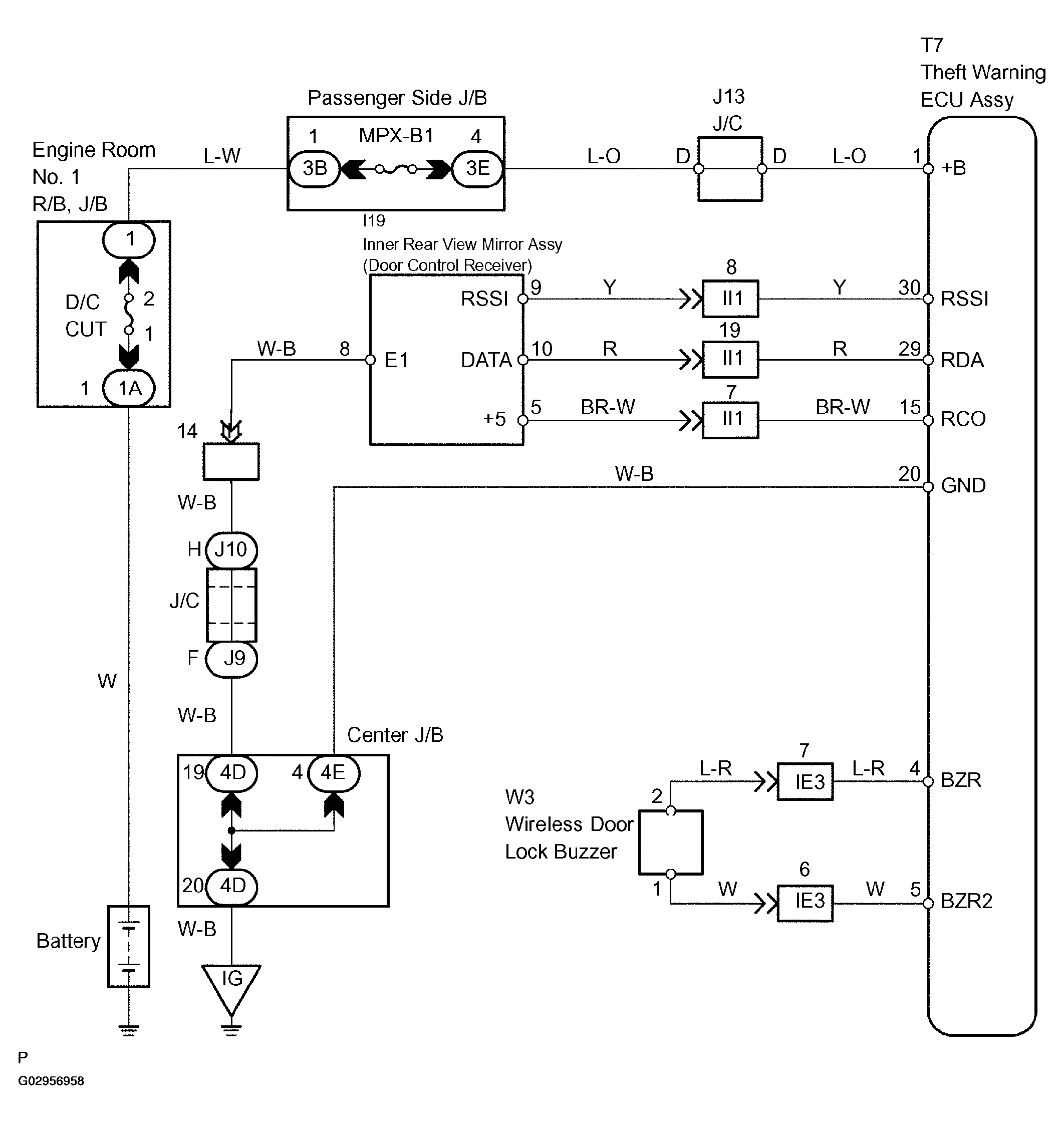

Fig 1: Wireless Control Function Inoperative - Wiring Diagram
