Wireless Door Lock Control System - Diagnostics
›
System Diagram
System Diagram

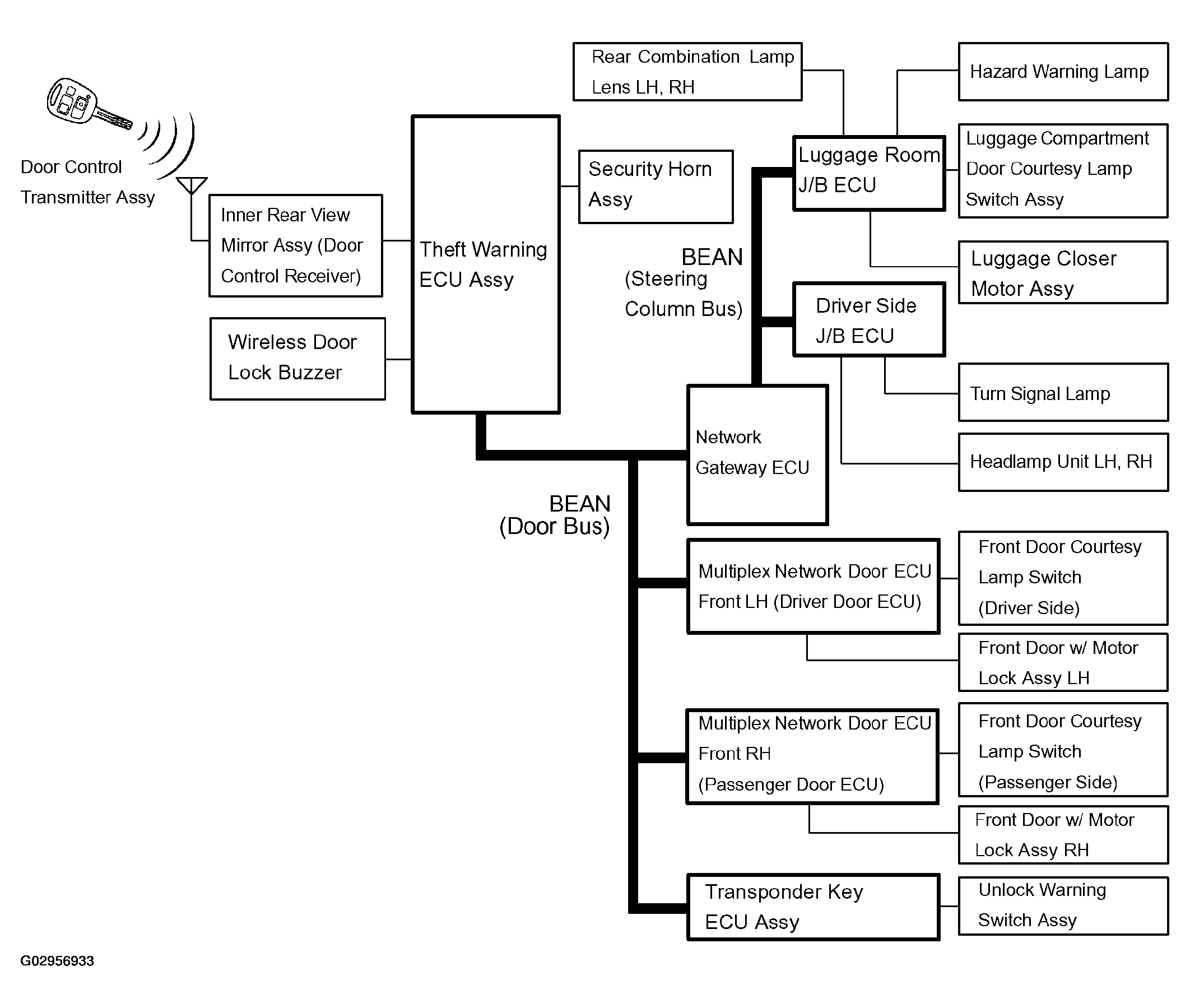

Fig 1: Wireless Door Lock Control System Diagram
