Power Mirror Control System - Diagnostics
›
Power Mirror Does Not Turn To Memorized Direction
›
Wiring Diagram
Power Mirror Does Not Turn To Memorized Direction: Wiring Diagram

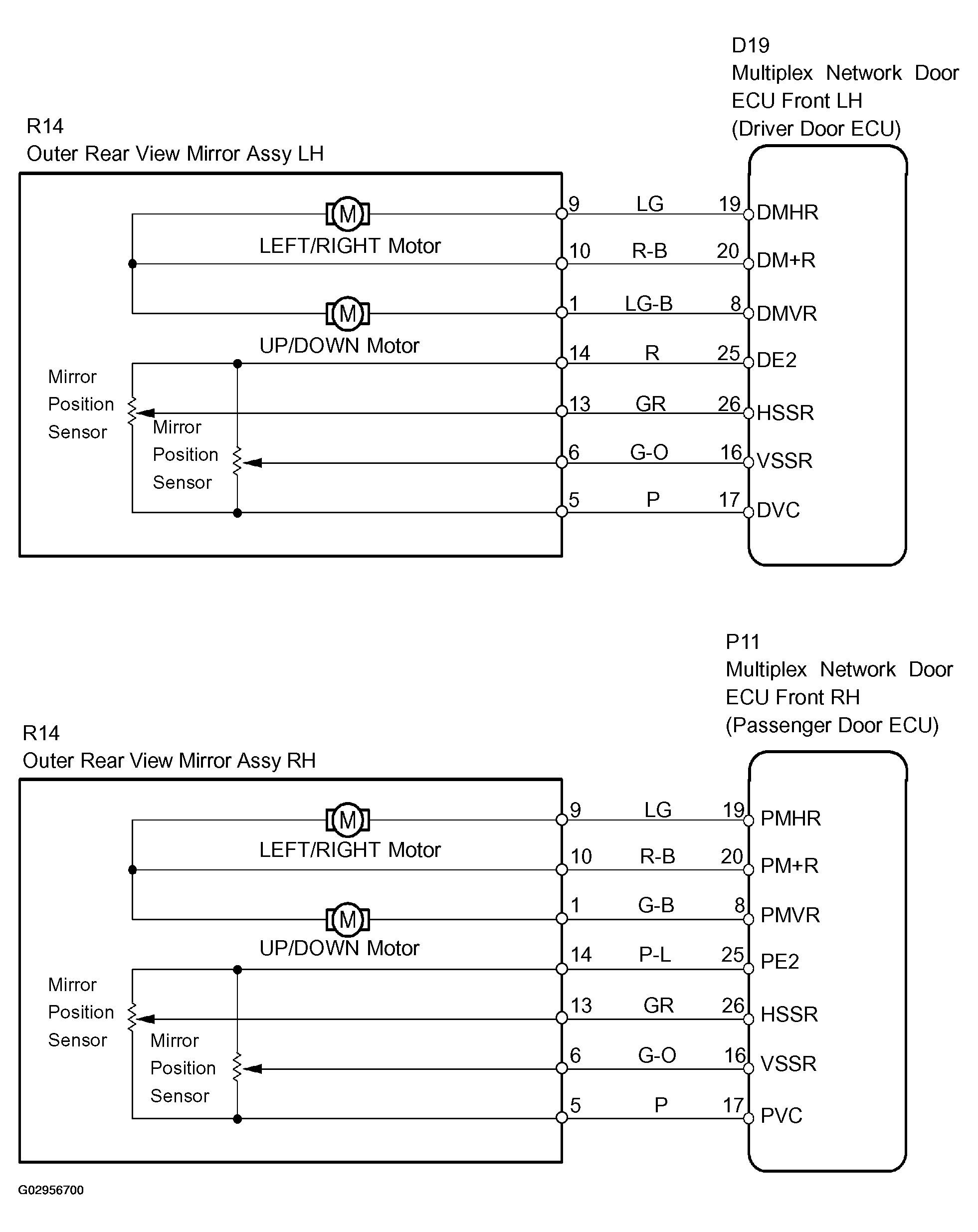

Fig 1: Power Mirror Does Not Turn To Memorized Direction Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
