Automatic Glare-Resistant EC Mirror
›
Location
Automatic Glare-Resistant EC Mirror: Location

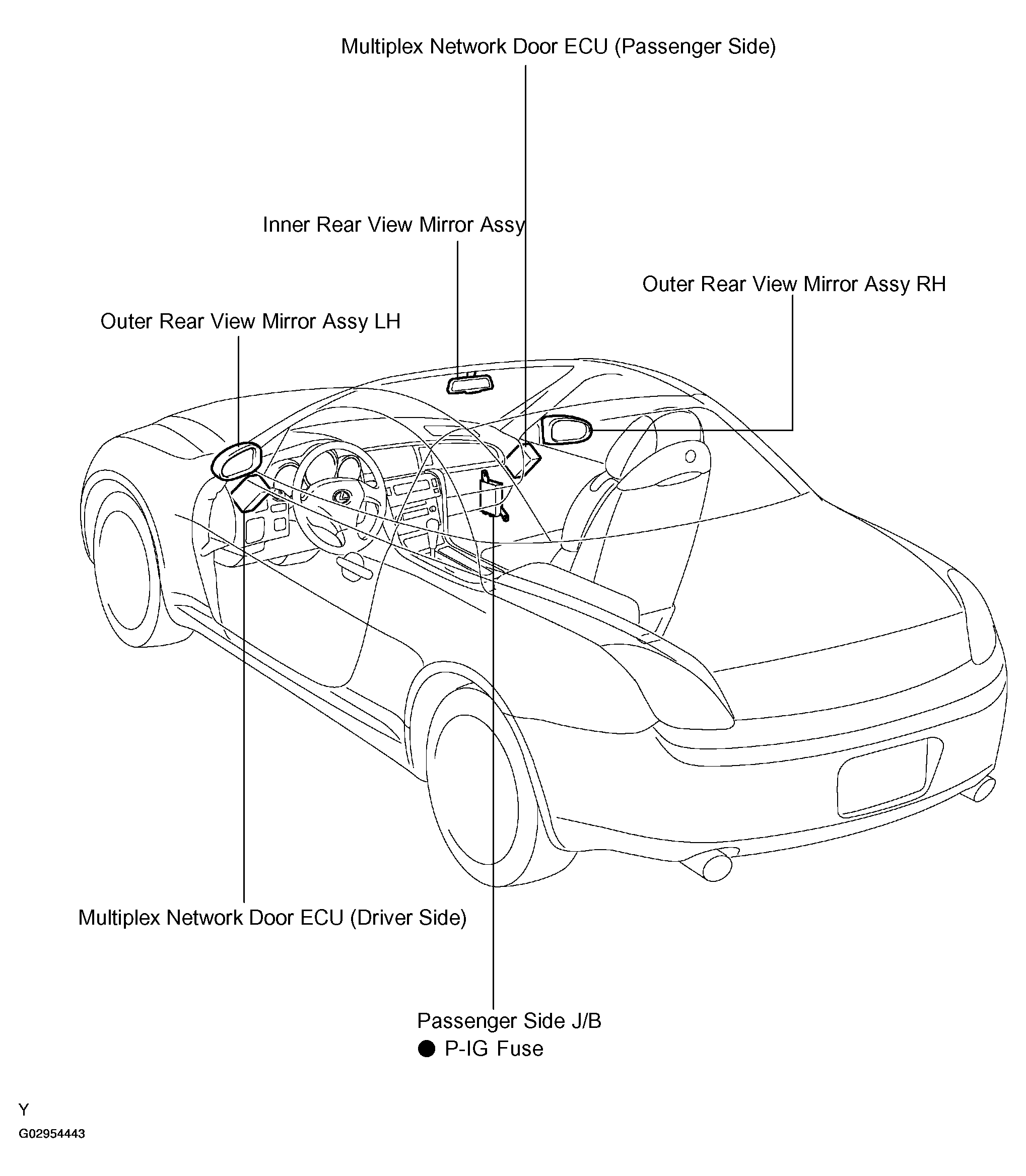

Fig 1: Identifying Location Of Automatic Glare-Resistant EC Mirror Components & Replacements
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
