Position Cannot Be Memorized: Wiring Diagram

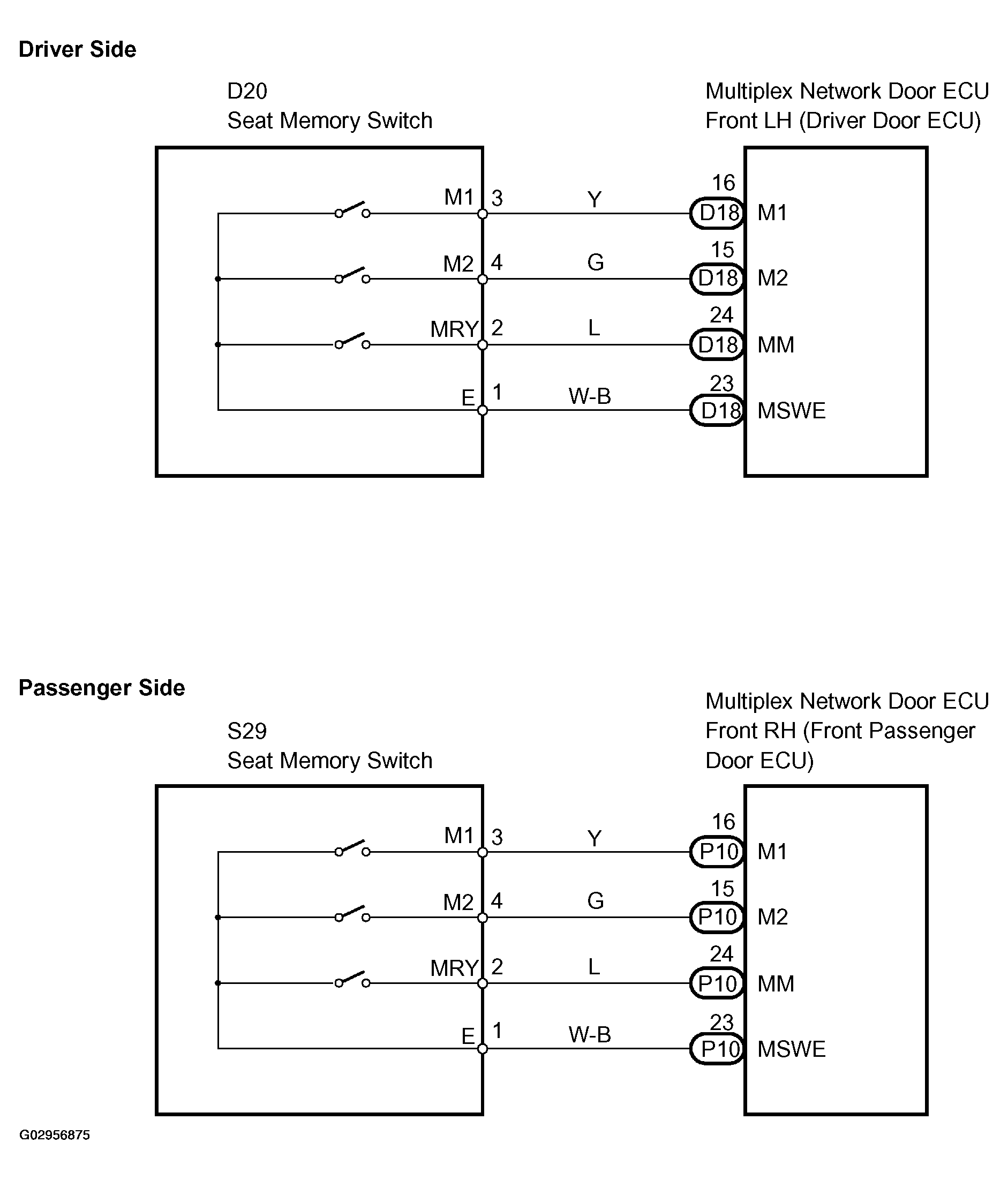

Fig 1: Position Cannot Be Memorized Wiring Diagram
G02956875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
