Front Seat: Components

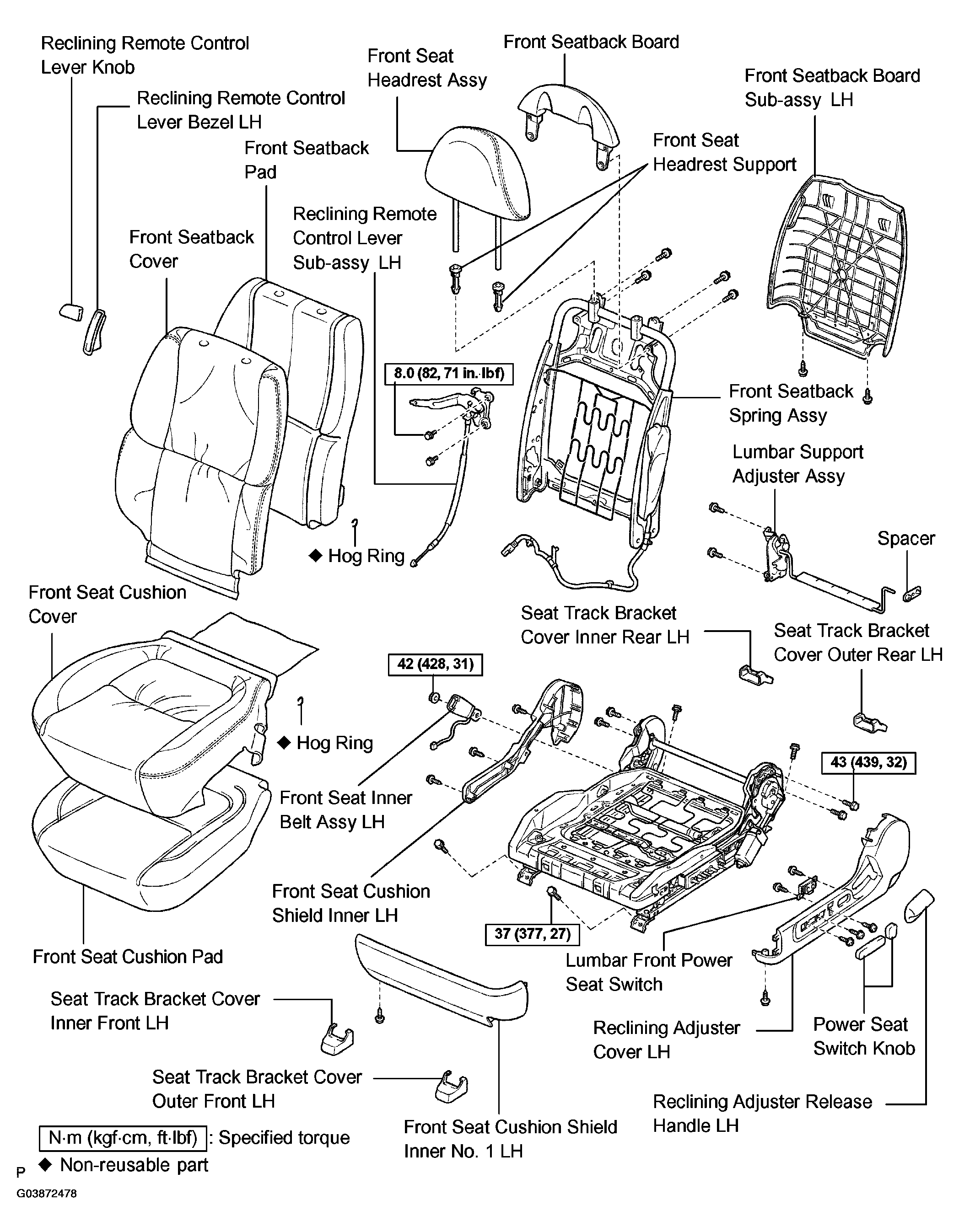

Fig 1: Identifying Front Seat Components & Replacements (1 Of 2)
G03872478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

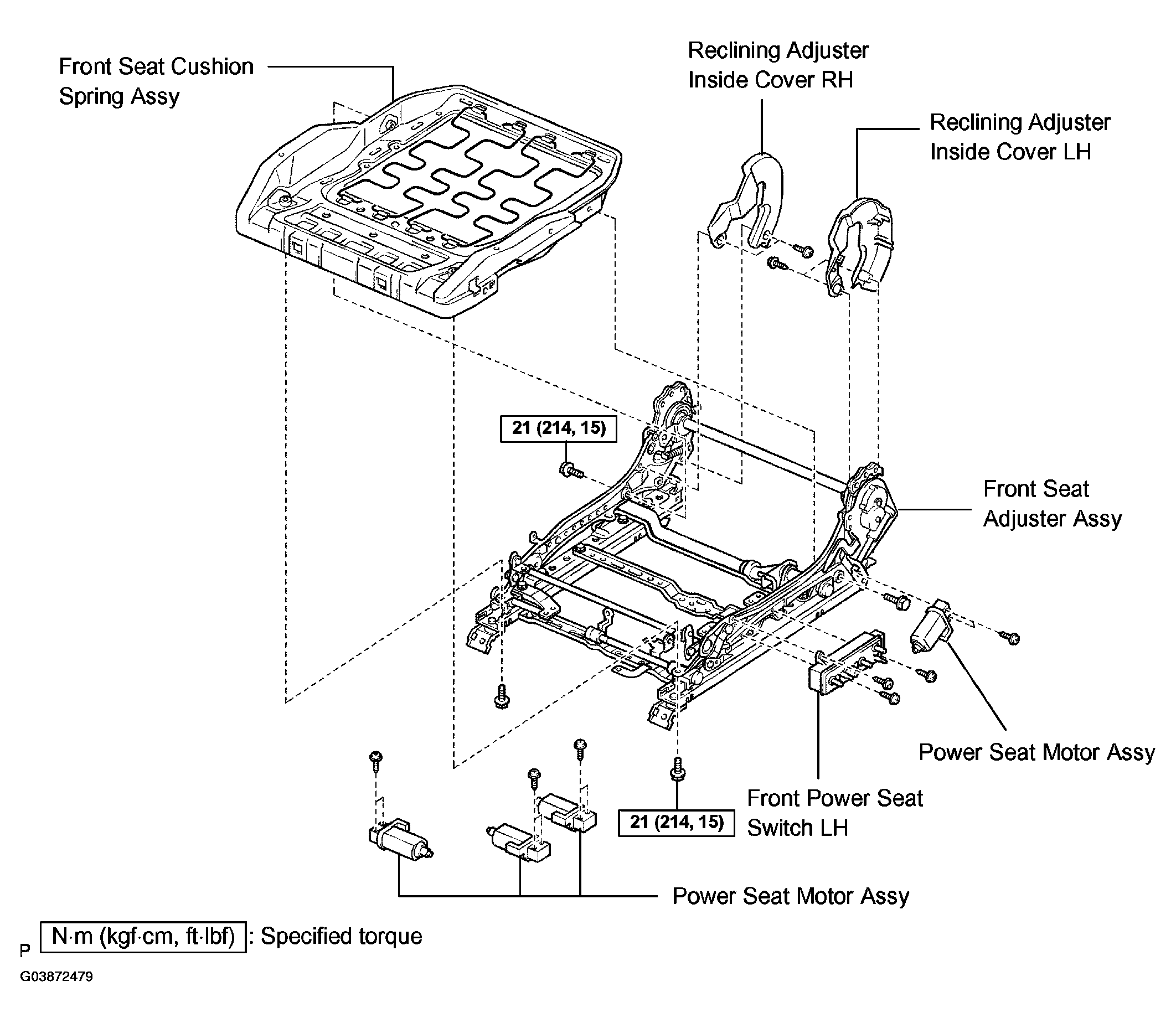

Fig 2: Identifying Front Seat Components & Replacements (2 Of 2)
G03872479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
