Back Window Frame Sub-ASSY Upper: Overhaul

HINT:

A bolt without a torque specification is shown in the standard bolt table (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

1. HALF OPEN ROOF PANEL
   1. Refer to the MANUAL OPEN OPERATION  procedures and half open the roof.

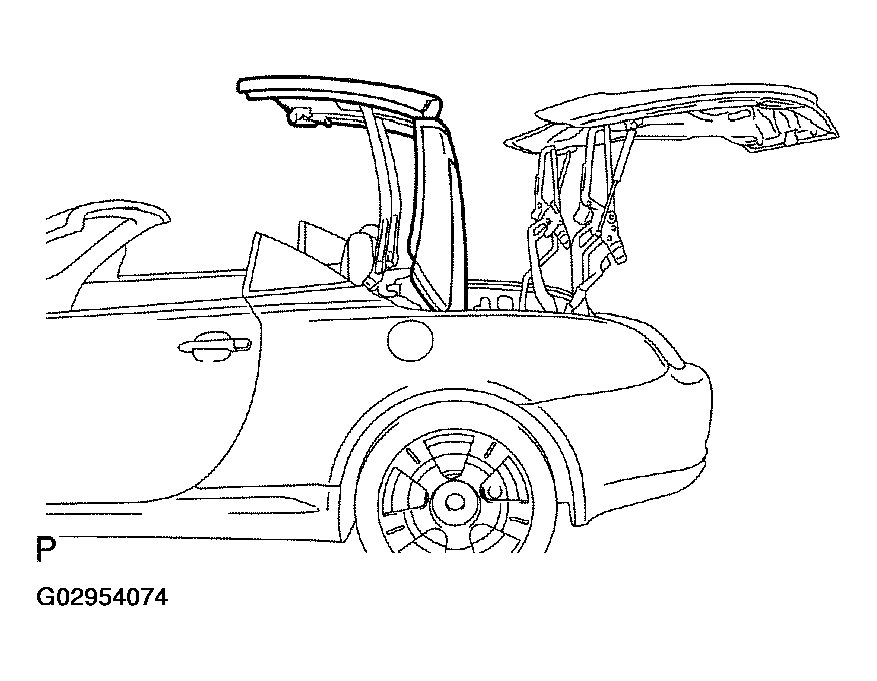

      Fig 1: Identifying Half Open Roof Panel

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. REMOVE ROOF SIDE GARNISH INNER RH
   1. Using a clip remover, remove the clip A.
   2. Using a screwdriver, detach the 7 clips.

      HINT:

      Tape the screwdriver tip before use.

   3. Remove the side garnish.
      Fig 2: Removing Roof Side Garnish With Clips

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE ROOF SIDE GARNISH INNER LH

   HINT:

   Use the same procedures described for the RH side.

4. REMOVE ROOF HEADLINING ASSY REAR
   1. Using a screwdriver, detach the 7 clips.

      HINT:

      Tape the screwdriver tip before use.

   2. Remove the roof headlining.

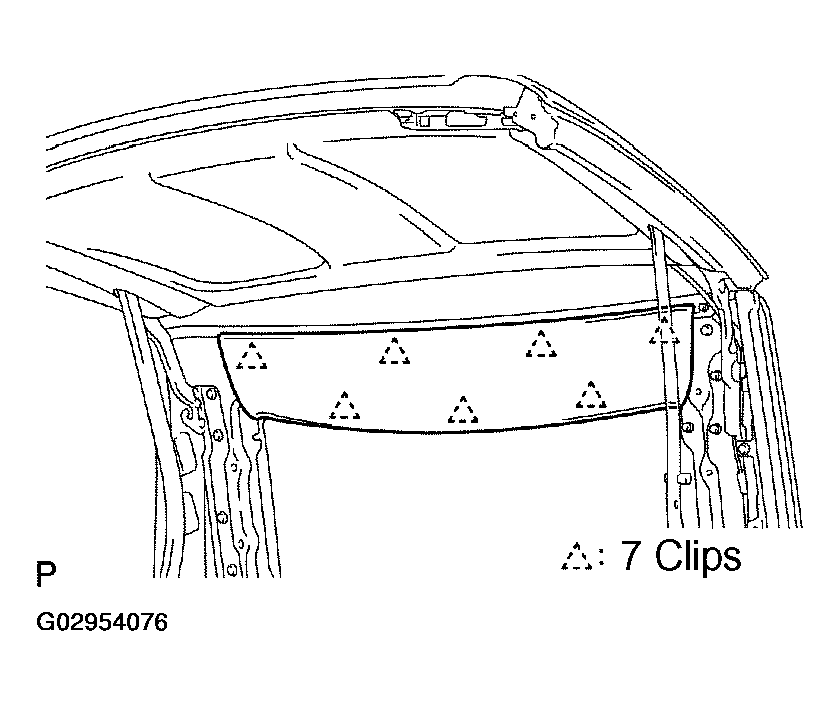

      Fig 3: Removing Roof Headlining With Clips

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE BACK WINDOW FRAME SUB-ASSY UPPER
   1. Using a T40 torx® socket, remove the 8 screws.
   2. Remove the back window frame.

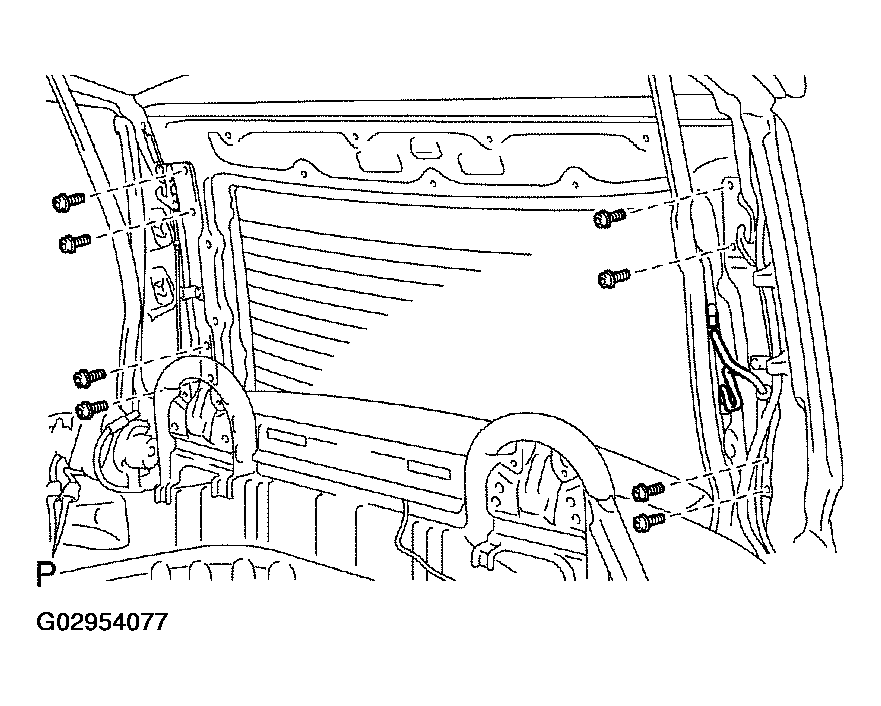

      Fig 4: Removing Back Window Frame With Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE REMOVABLE ROOF WEATHERSTRIP REAR
   1. Remove the 4 screws, 2 nuts and 4 clips.
   2. Using a clip remover, detach the clips.
   3. Remove the removable roof weatherstrip rear.

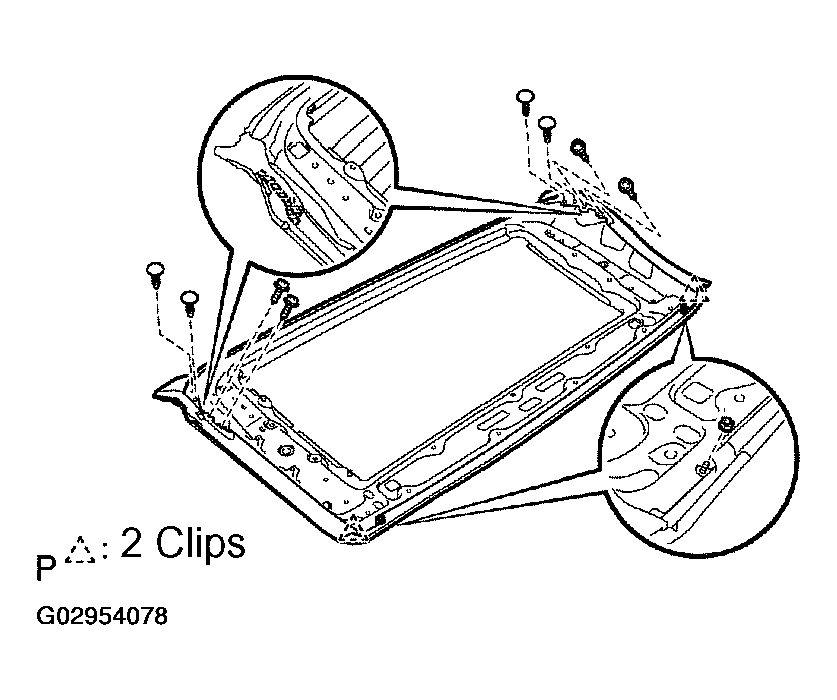

      Fig 5: Removing Removable Roof Weatherstrip Rear With Screws, Nuts & Clips

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. REMOVE ROOF SIDE RAIL WEATHERSTRIP RETAINER RH
   1. Remove the 4 screws and weatherstrip retainer.

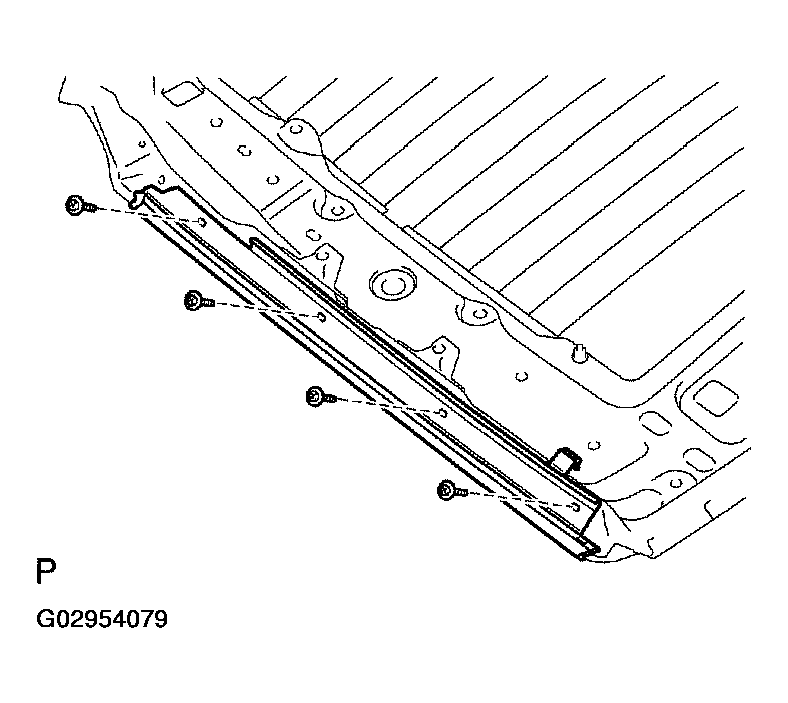

      Fig 6: Removing Weatherstrip Retainer With Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. REMOVE ROOF SIDE RAIL WEATHERSTRIP RETAINER

   HINT:

   Use the same procedures described for the RH side.

9. REMOVE BACK WINDOW OUTSIDE MOLDING (See  REPLACEMENT  )
10. REMOVE BACK WINDOW GLASS (See  REPLACEMENT  )
11. CLEAN BACK WINDOW GLASS (See  REPLACEMENT  )
12. INSTALL BACK WINDOW GLASS ADHESIVE DAM (See  REPLACEMENT  )
13. INSTALL BACK WINDOW GLASS (See  REPLACEMENT  )
14. INSTALL ROOF SIDE RAIL WEATHERSTRIP RETAINER LH
15. INSTALL ROOF SIDE RAIL WEATHERSTRIP RETAINER RH
16. INSTALL REMOVABLE ROOF WEATHERSTRIP REAR
17. INSTALL BACK WINDOW FRAME SUB-ASSY UPPER

    Torque: 40 N.m (408 kgf.cm, 30 ft.lbf)

18. INSTALL ROOF HEADLINING ASSY REAR
19. INSTALL ROOF SIDE GARNISH INNER LH
20. INSTALL ROOF SIDE GARNISH INNER RH
21. INSPECT FOR LEAKS AND REPAIR (See  REPLACEMENT  )
