Roof Panel Link Sub-ASSY: Components

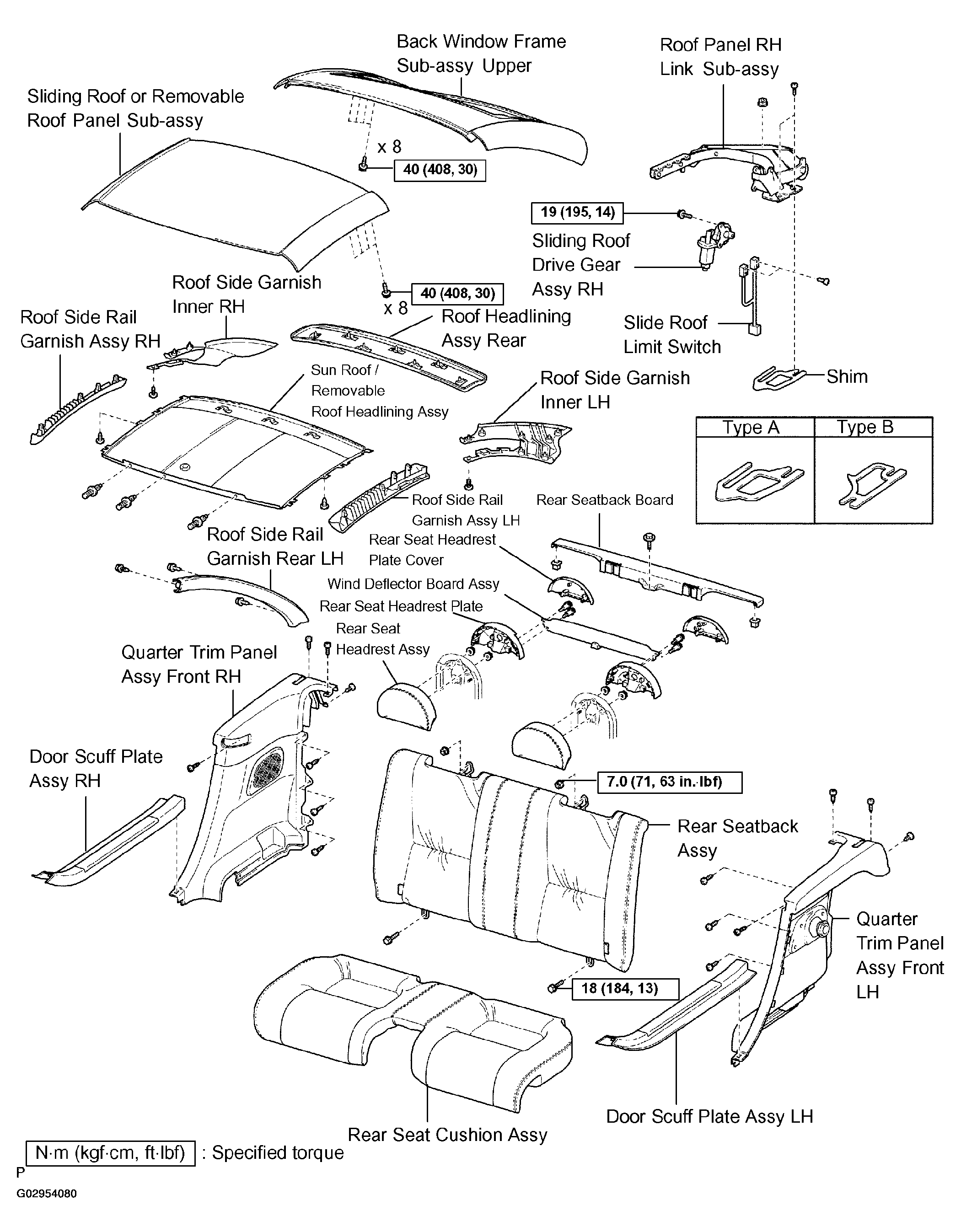

Fig 1: Exploded View Of Roof Panel Link Sub-Assy Components (1 Of 2)
G02954080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Exploded View Of Roof Panel Link Sub-Assy Components (2 Of 2)
G02954081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
