(Door / Hatch): Adjustment

HINT:

Centering bolts are used to mount the hood hinge and hood lock. The hood and hood lock cannot be adjusted with the centering bolts on. Substitute the centering bolts with standard bolts (w/ washers) when making adjustments.
A bolt without a torque specification is shown in the standard bolt table (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

Fig 1: Identifying Centering & Standard Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT HOOD SUB-ASSY

Check that the clearance measurements of areas A and B are within the standard range.

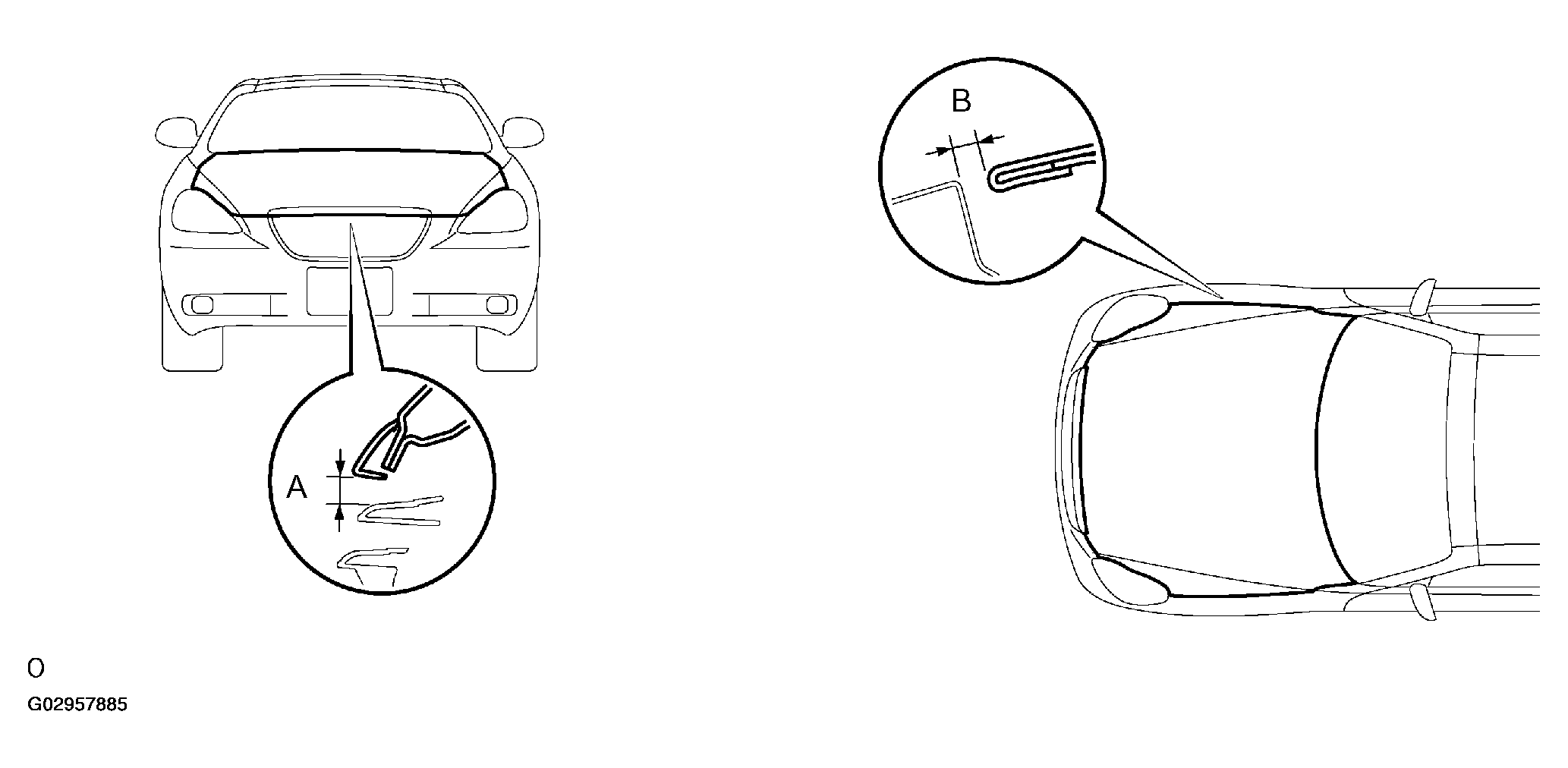

Fig 2: Identifying Hood Clearance

G02957885

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard:

AREA SPECIFICATIONS

Area	Measurement
A	15.5 mm (0.610 in.)
B	2.4 to 5.4 mm (0.094 to 0.213 in.)

ADJUST HOOD SUB-ASSY
1. Adjust the hood's position.
  1. Loosen the hood's 4 hinge bolts.
  2. Move the hood and adjust the clearance between the hood and front fender. Make sure that the clearance is within the standard range.
    Standard (B): 2.4 to 5.4 mm (0.094 to 0.213 in.)
  3. Tighten the hood side hinge bolts after the adjustment.
    Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

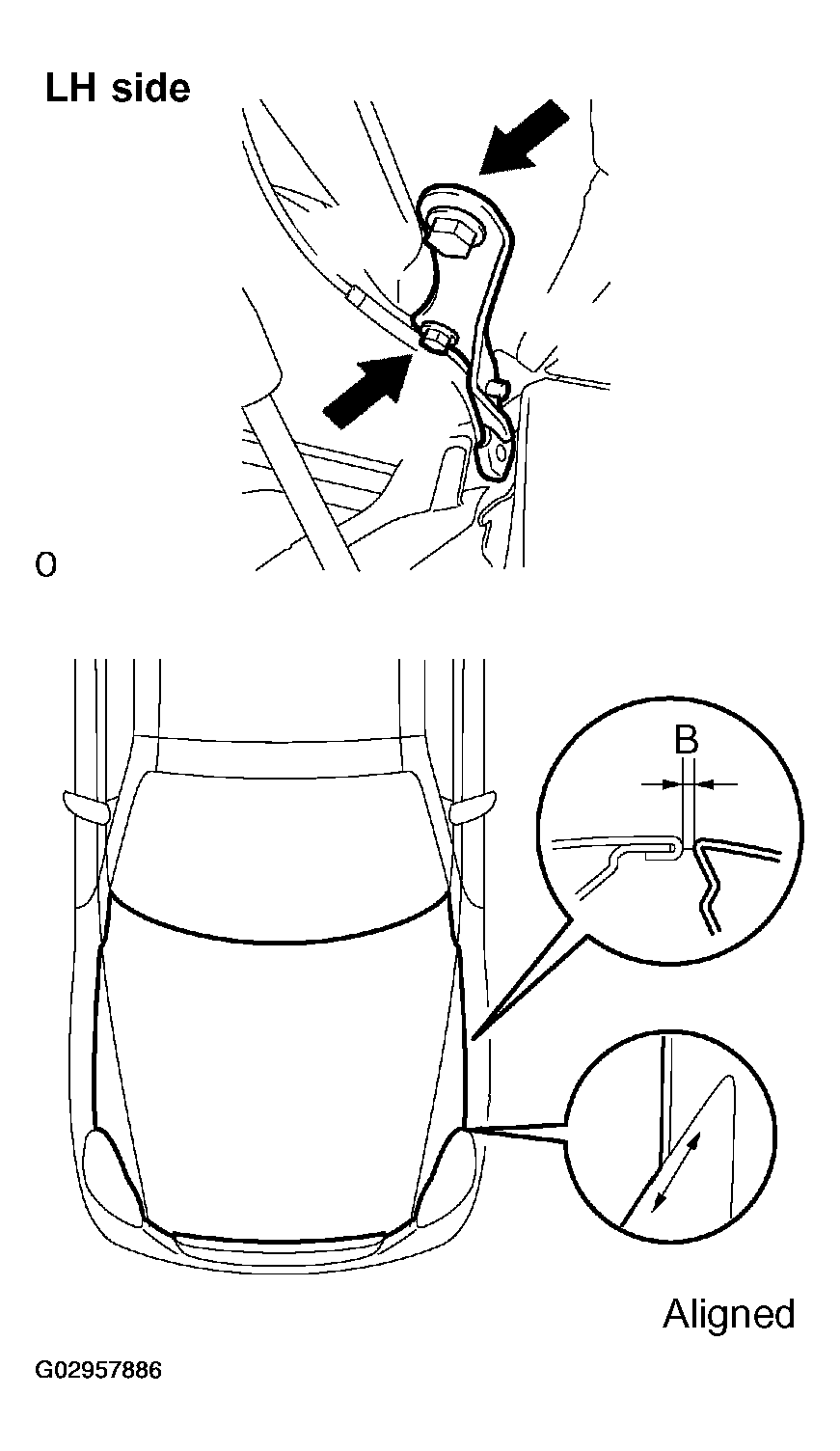

    Fig 3: Tightening Hood Side Hinge Bolts After Adjustment
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Adjust the cushion rubber so that the height of the hood and the fender are aligned.
  1. Raise or lower the hood's front end by turning the cushion rubber. Make sure that the clearance is within the standard range.

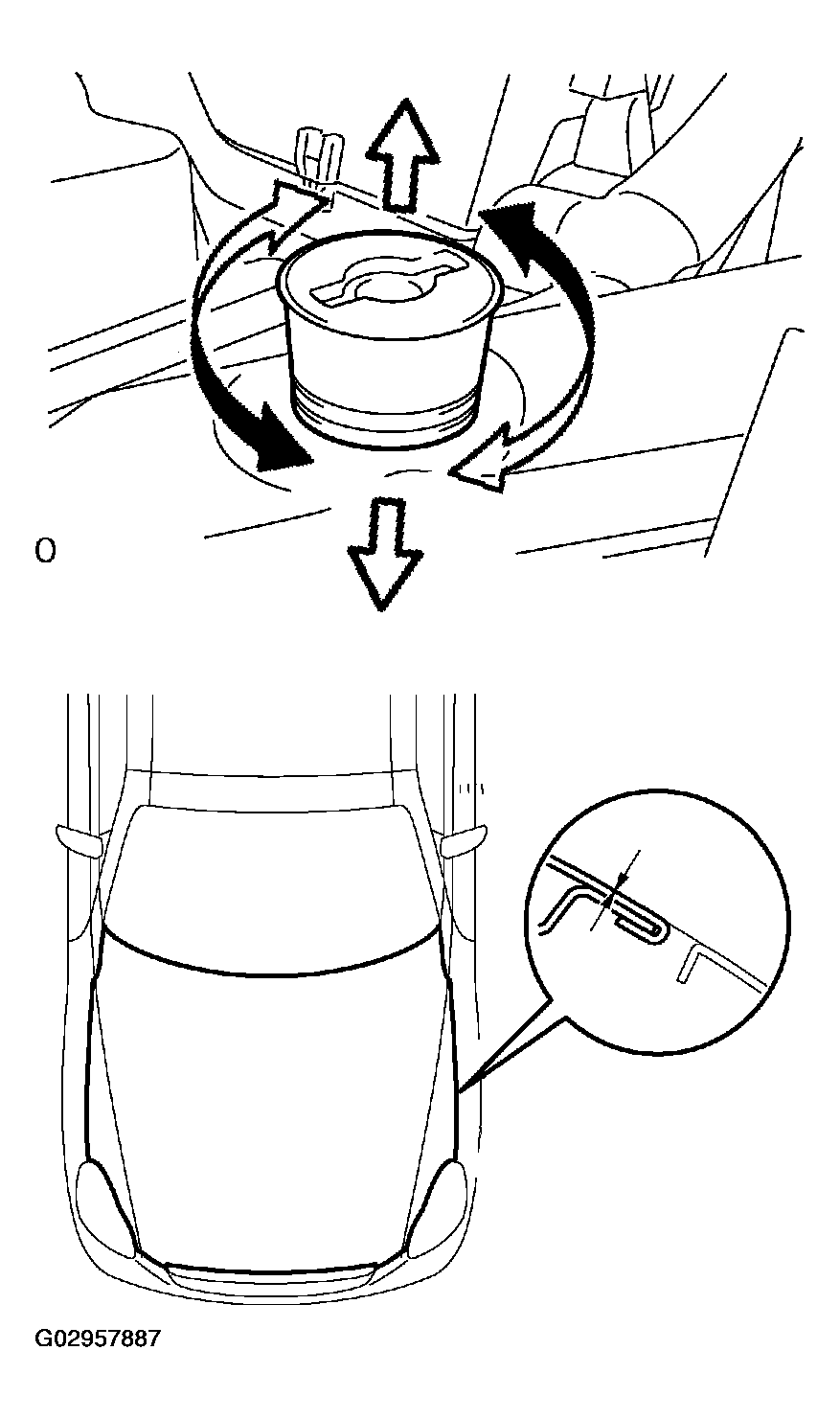

    Fig 4: Adjusting Cushion Rubber
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Adjust the hood lock.
  1. Loosen the 3 bolts.

    Fig 5: Loosening Bolts
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

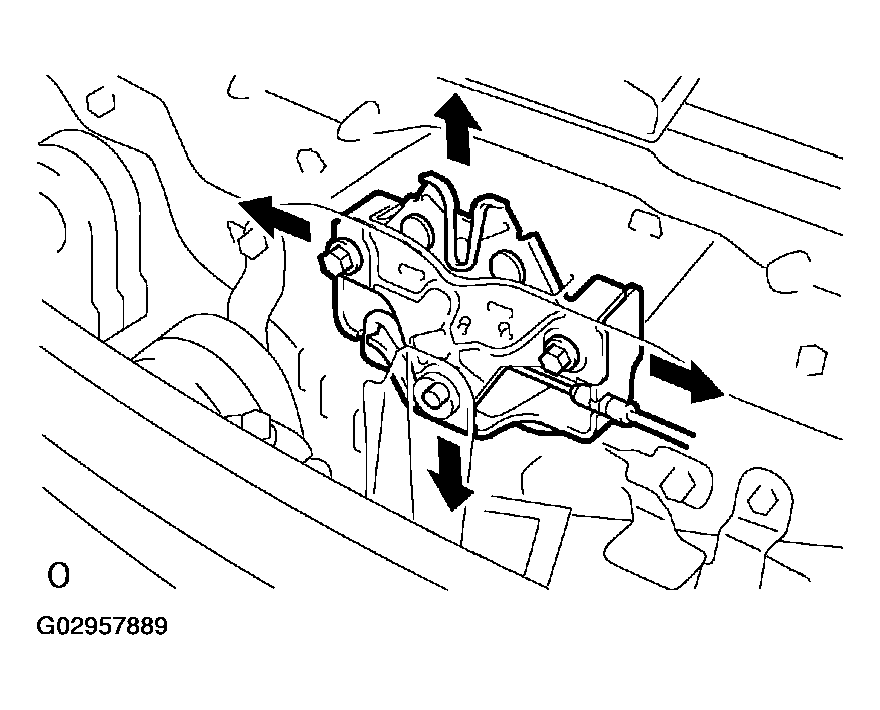

  2. Adjust the hood lock position so that the striker can enter it smoothly.
  3. Tighten the 3 bolts after the adjustment.
    Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

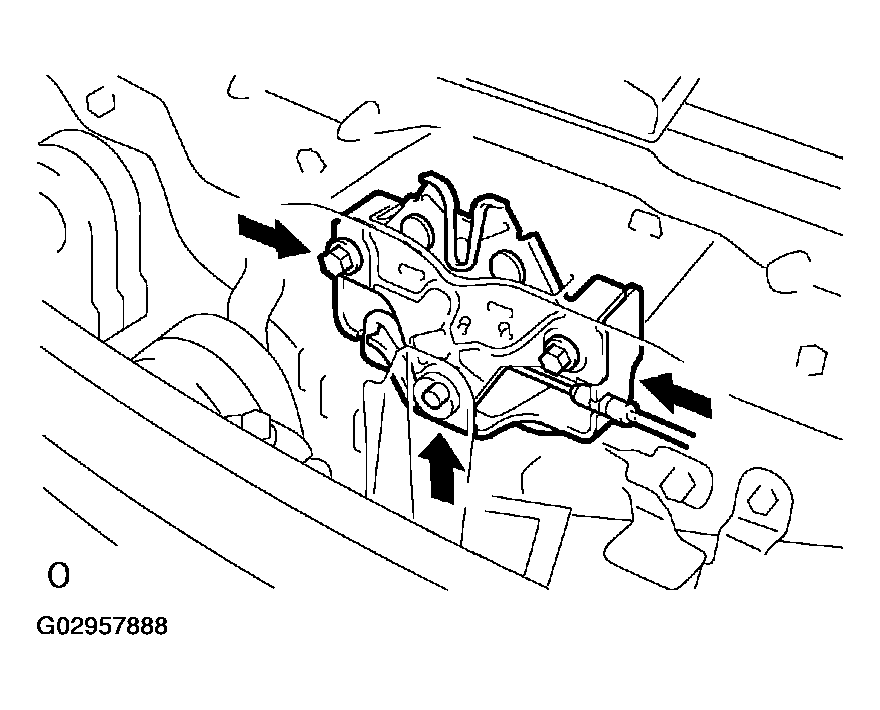

    Fig 6: Tightening Bolts After Adjusting Hood Lock Position
