Power Window Does Not Operate On Passenger Side
›
Wiring Diagram
Power Window Does Not Operate On Passenger Side: Wiring Diagram

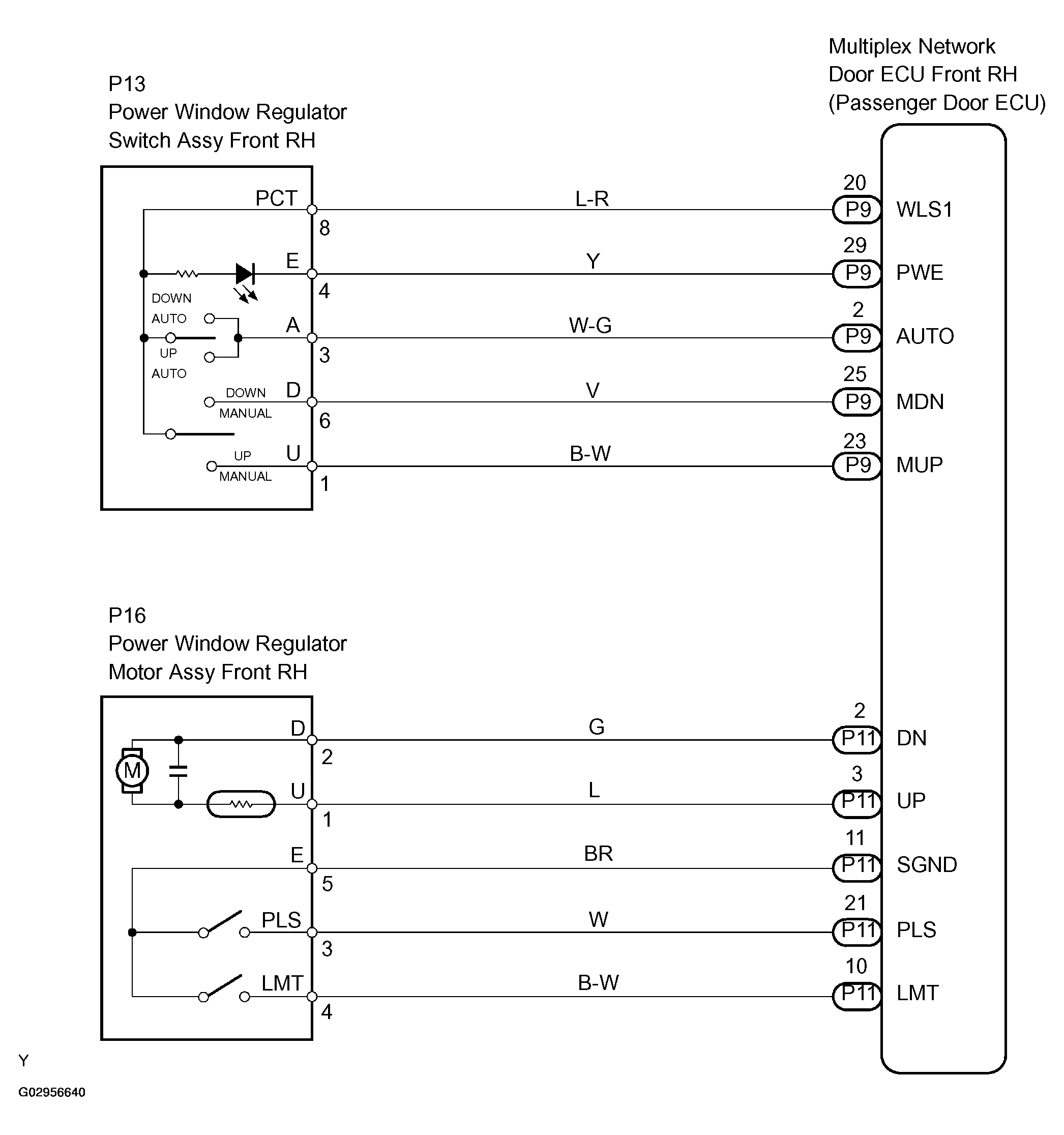

Fig 1: Power Window Does Not Operate On Passenger Side Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
