Passenger Side Junction Block

Passenger side junction block is located behind right kick panel. See Figure.

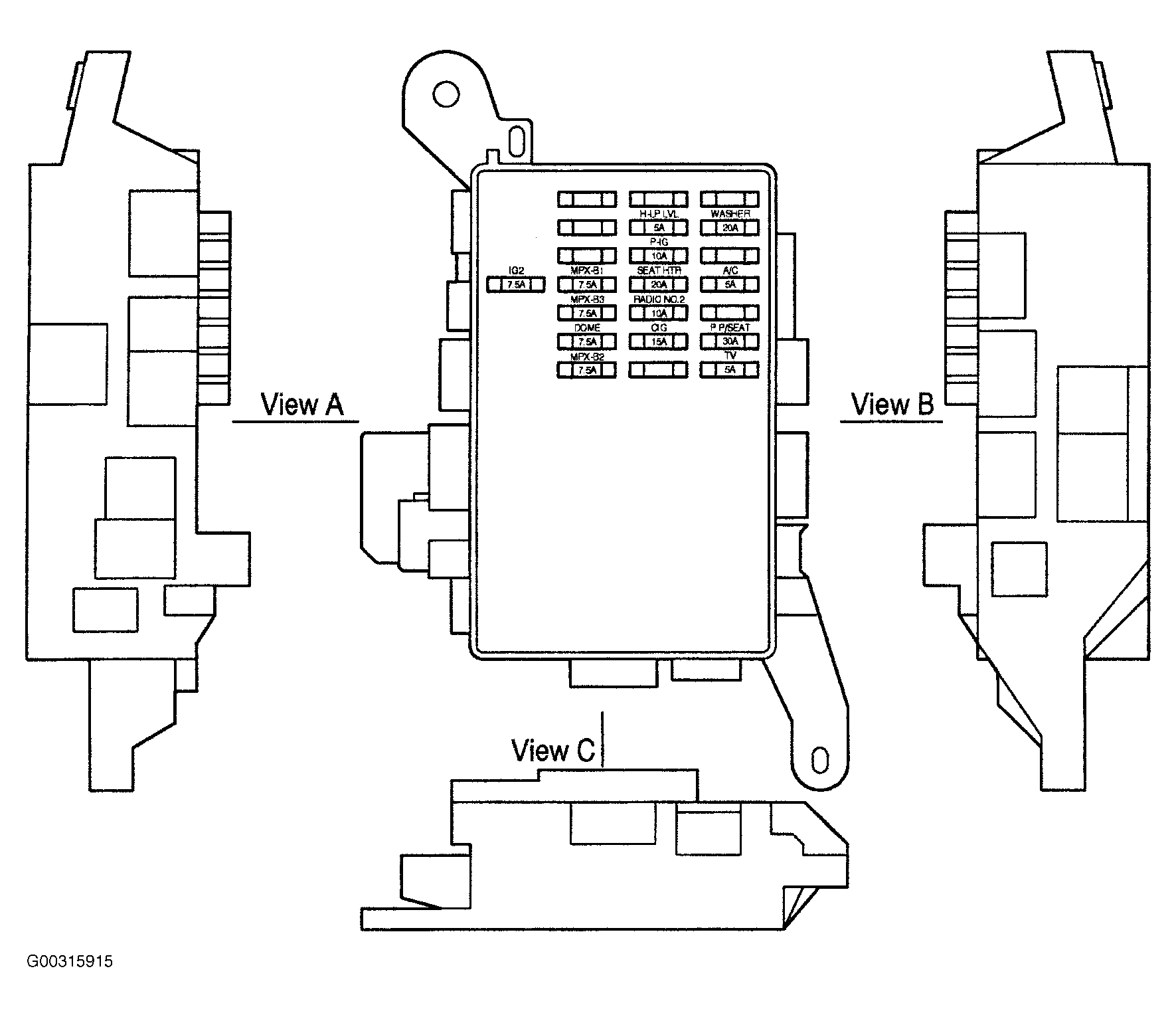

Fig 1: Identifying Passenger Side Junction Block Fuse Locations
G00315915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PASSENGER SIDE JUNCTION BLOCK FUSE IDENTIFICATION LEGEND

Fuse System
5A A/C Automatic Air Conditioning
Clock
5A H-LP LVL Headlight Beam Level Control
5A TV LEXUS Navigation System
7.5A DOME Audio System
Garage Door Opener
Interior Light
Multiplex Communication System (J/B ECU)
Rear Window Defogger
Theft Deterrent and Door Lock Control
7.5A IG2 SRS
7.5A MPX-B1 Engine Immobilizer System
Mirror Heater
Multiplex Communication System (Door ECU)
Power Seat
Power Window
Remote Control Mirror
Retractable Hardtop
Theft Deterrent and Door Lock Control
Wireless Door Lock Control
7.5A MPX-B2 Audio System
Automatic Air Conditioning
Charging
Combination Meter
Cruise Control
Electronically Controlled Transmission and A/T Indicator
Engine Control
Front Fog Light
Headlight
Headlight Beam Level Control
Illumination
Interior Light
Key Reminder and Seat Belt Warning
LEXUS Navigation System
Luggage Compartment Door Opener
Multiplex Communication System (Communication Bus)
Multiplex Communication System (J/B ECU)
Power Tilt and Power Telescopic
Retractable Hardtop
SRS
Stop Light
Taillight
Tire Pressure Warning System
VSC and PPS
Wiper and Washer
7.5A MPX-B3 Headlight
Illumination
Interior Light
Light Auto Turn Off System
Luggage Compartment Door Opener
Multiplex Communication System (J/B ECU)
Power Tilt and Power Telescopic
Remote Control Mirror
Taillight
Turn Signal and Hazard Warning Light
Wiper and Washer
10A P-IG Auto Antenna
Automatic Glare-Resistant EC Mirror
LEXUS Navigation System
Seat Heater
Shift Lock
10A RADIO NO.2 Audio System
Auto Antenna
Automatic Air Conditioning
Clock
Key Reminder and Seat Belt Warning
LEXUS Navigation System
Multiplex Communication System (Communication Bus)
Multiplex Communication System (Door ECU)
Multiplex Communication System (J/B ECU)
Power Window
Shift Lock
Theft Deterrent and Door Lock Control
Wireless Door Lock Control
15A CIG Cigarette Lighter and Power Outlet
20A SEAT HTR Seat Heater
20A WASHER Headlight Cleaner
Multiplex Communication System (J/B ECU)
Wiper and Washer
30A P P/SEAT Power Seat
Seat Heater

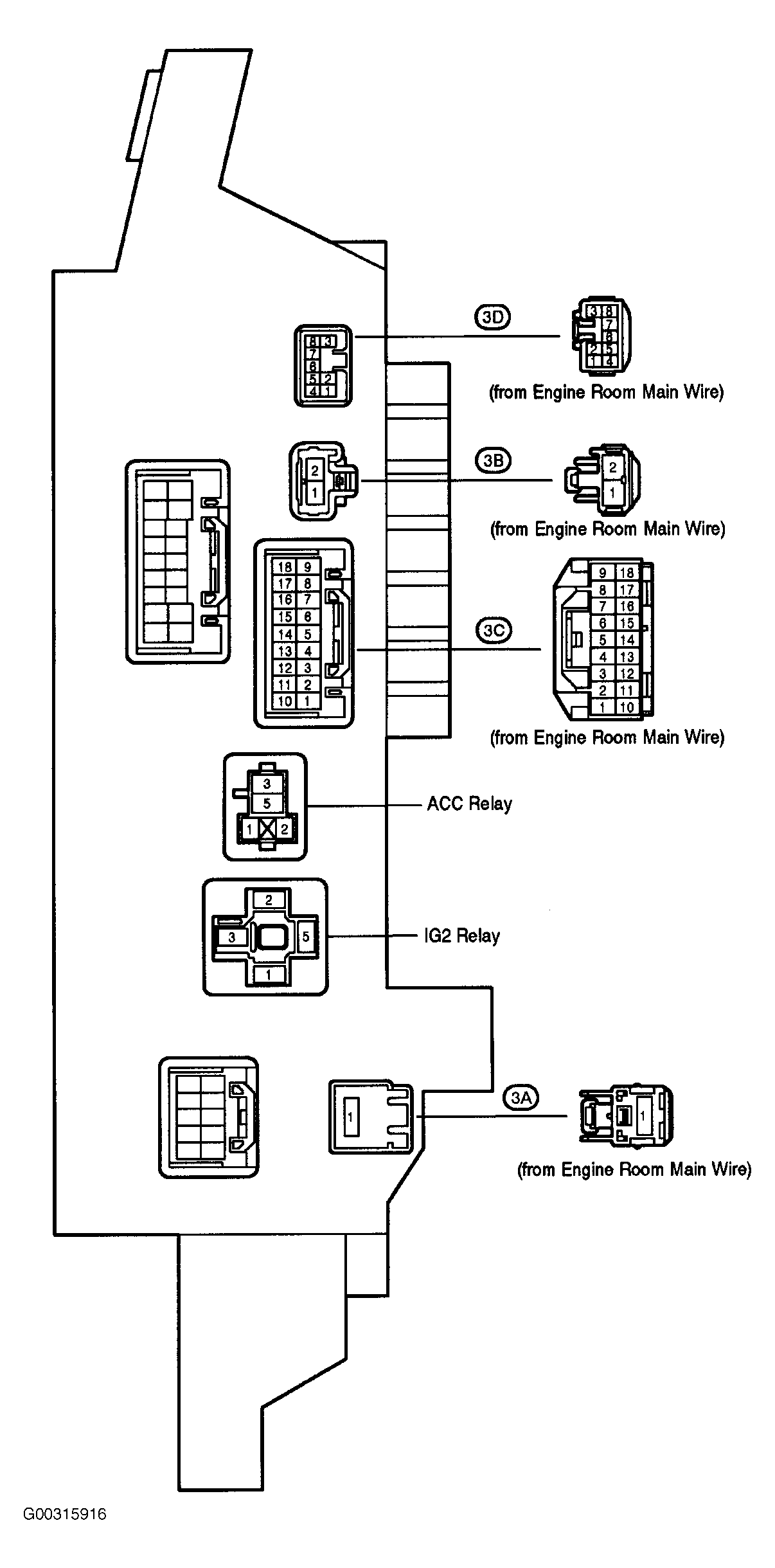

Fig 2: Identifying Passenger Side Junction Block Relay Locations
G00315916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PASSENGER SIDE JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
ACC Relay
IG2 Relay
