Compass Does Not Function: Wiring Diagram

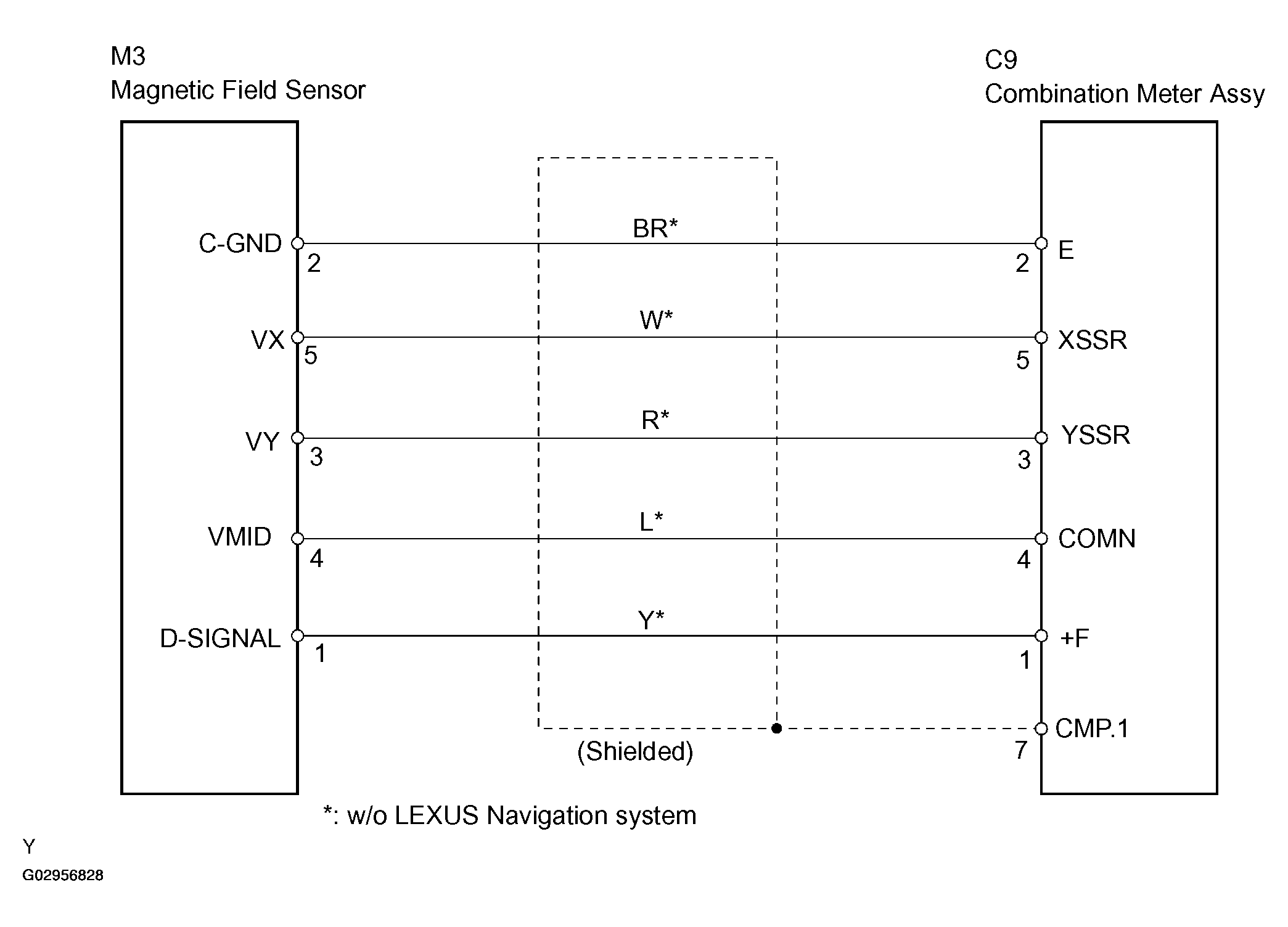

Fig 1: Compass - Wiring Diagram
G02956828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
