Horn System: Location

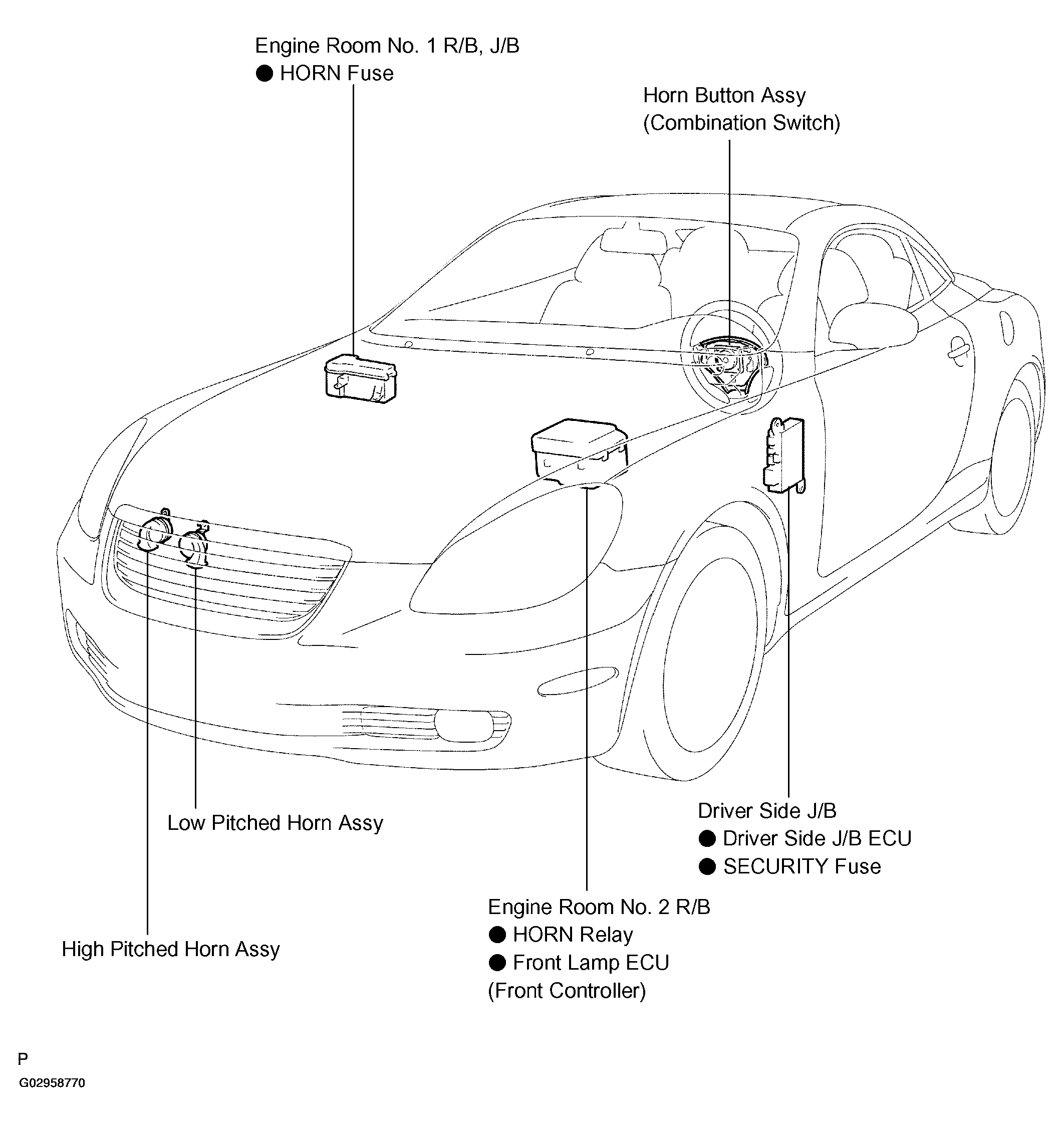

Fig 1: Identifying Location Of Horn System Components And Replacements
G02958770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
