Exhaust Manifold: Components

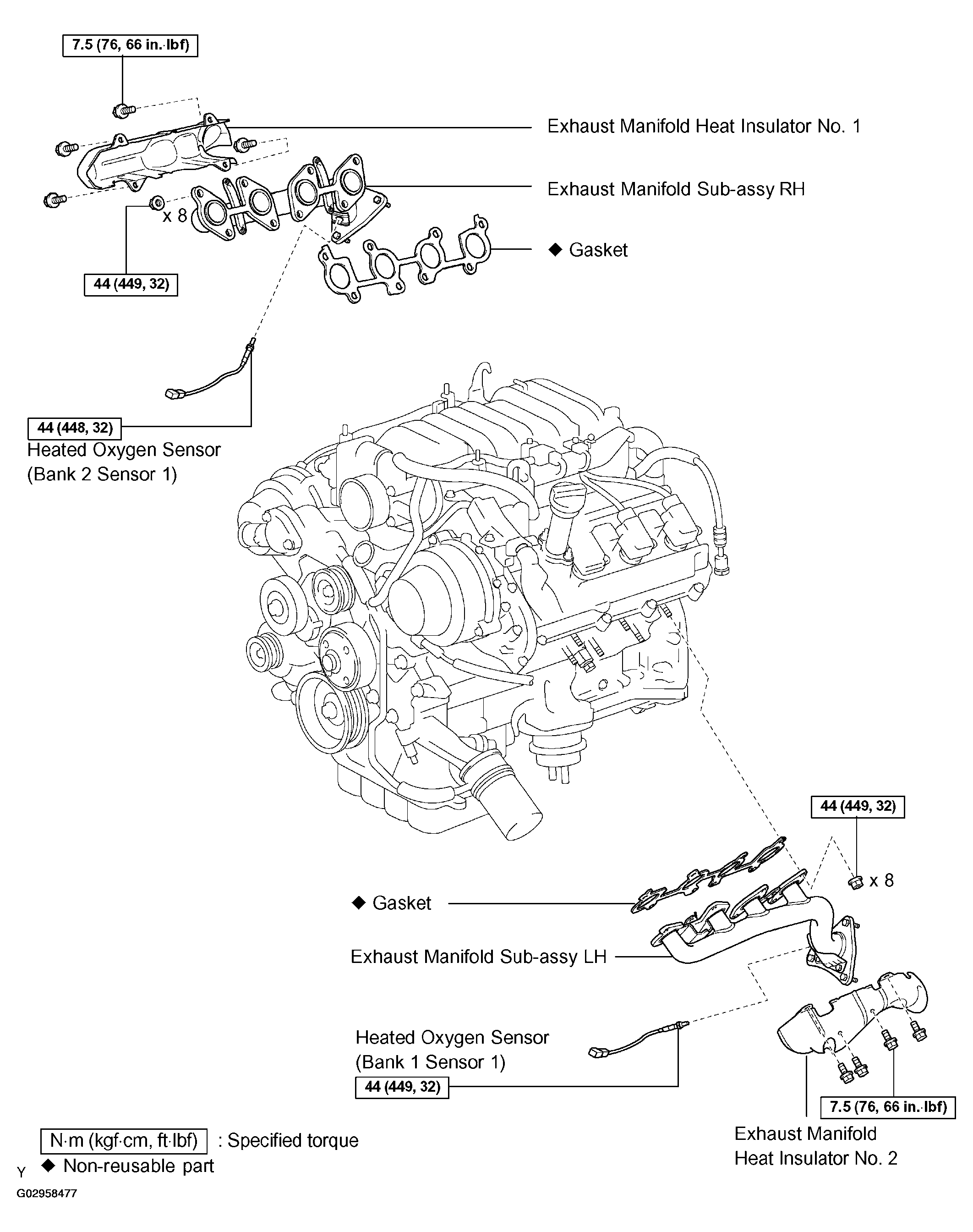

Fig 1: Identifying Exhaust Manifold Components And Replacements
G02958477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
