Exhaust Pipe ASSY: Components

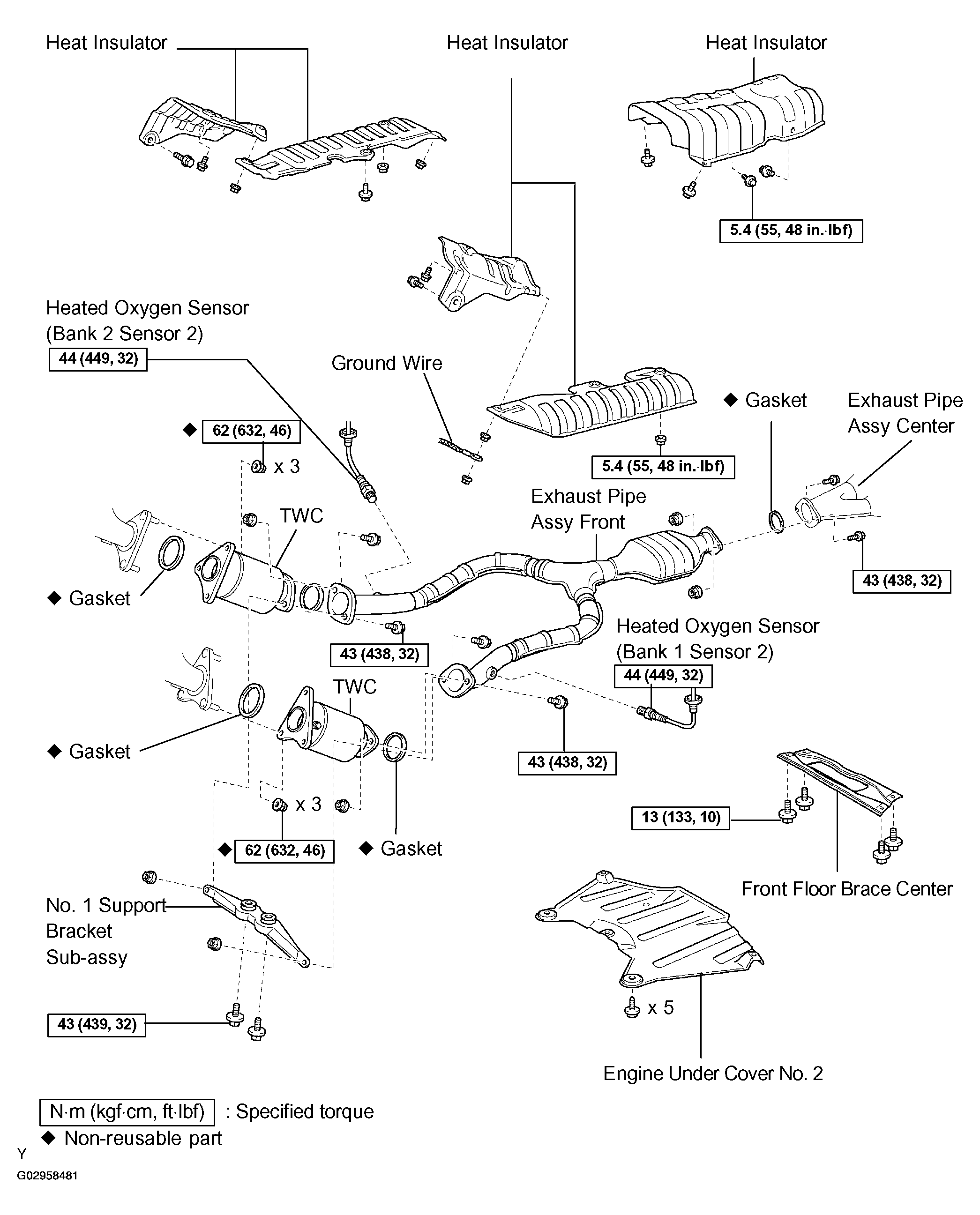

Fig 1: Identifying Exhaust Pipe Assy Components And Replacements (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

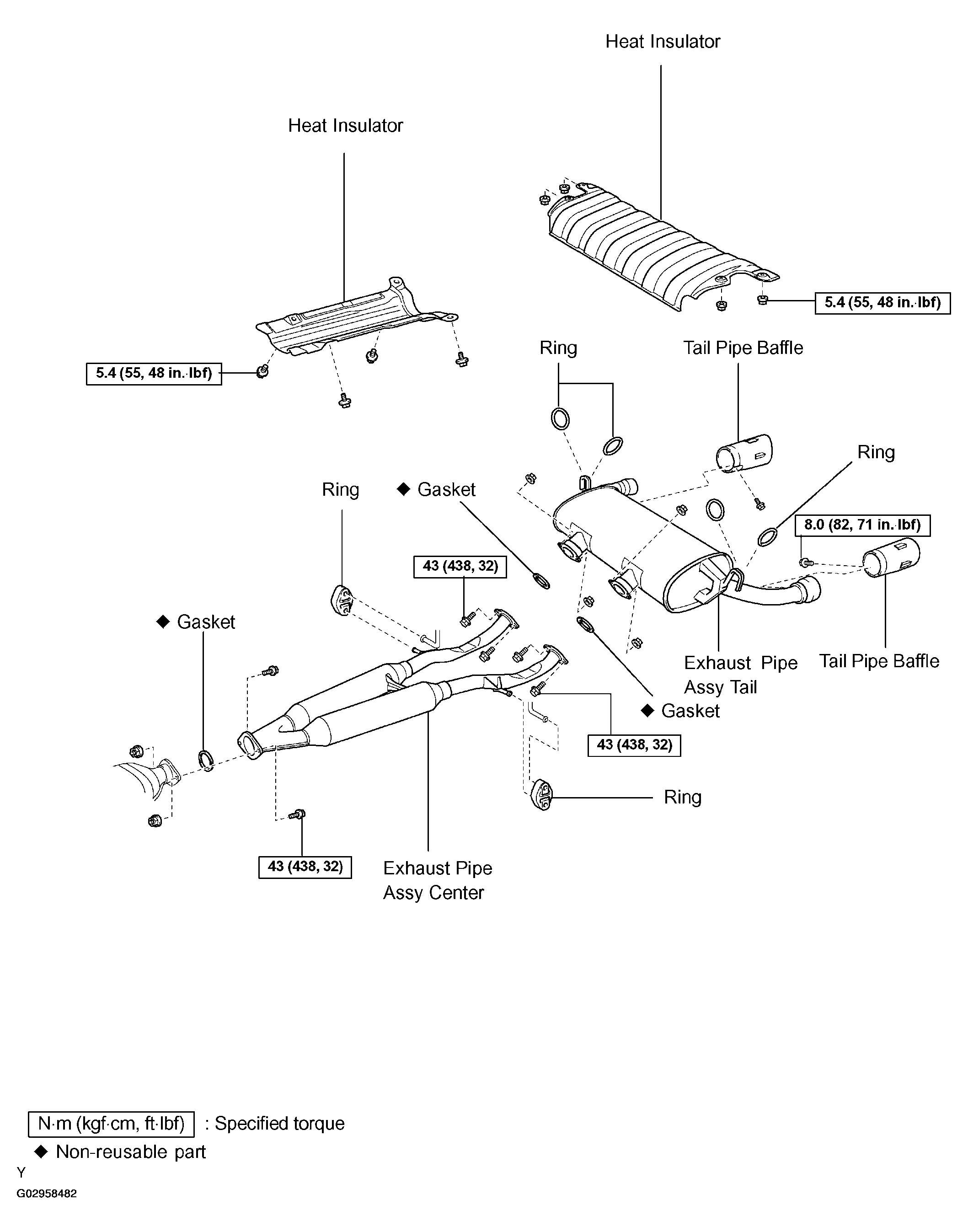

Fig 2: Identifying Exhaust Pipe Assy Components And Replacements (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
