Camshaft Position Sensor: Components

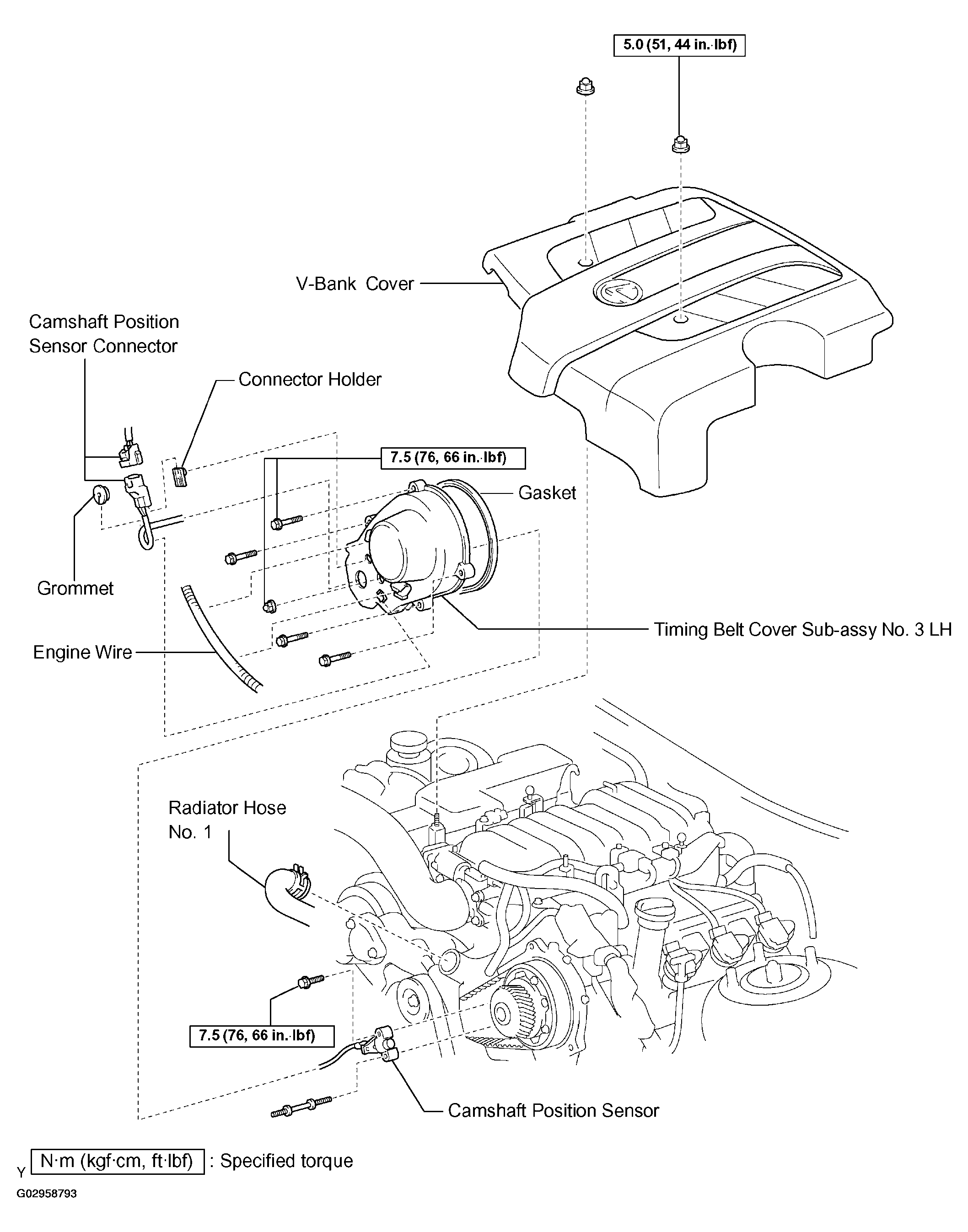

Fig 1: Identifying Camshaft Position Sensor Components & Replacements
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
