ECM Power Source Circuit: Wiring Diagram

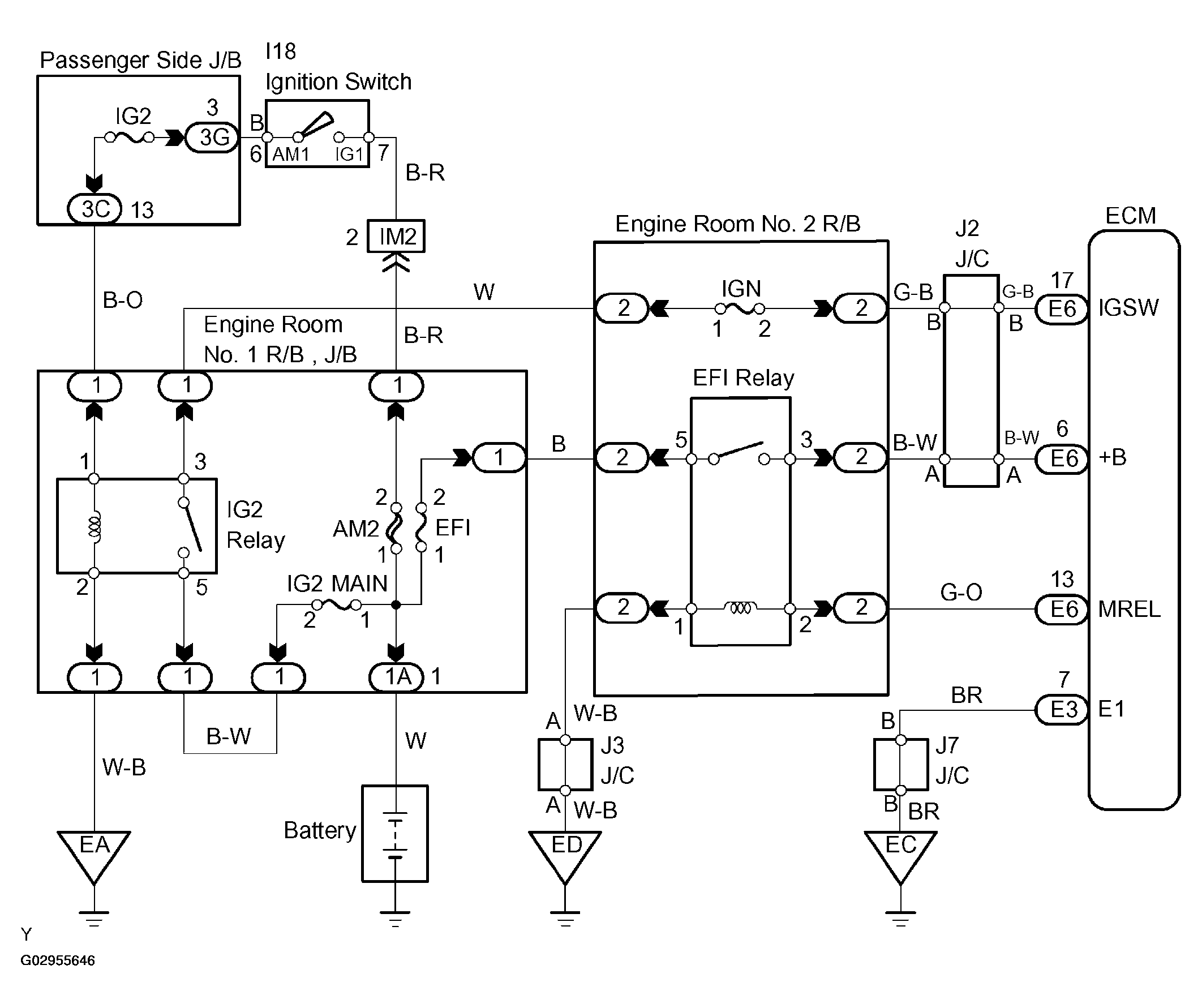

Fig 1: ECM Power Source Wiring Diagram
G02955646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
