Home › Lexus › 2005 › SC 430 › Repair and Diagnosis › Engine Performance › System › SFI System - Diagnostics › Location

SFI System - Diagnostics: Location

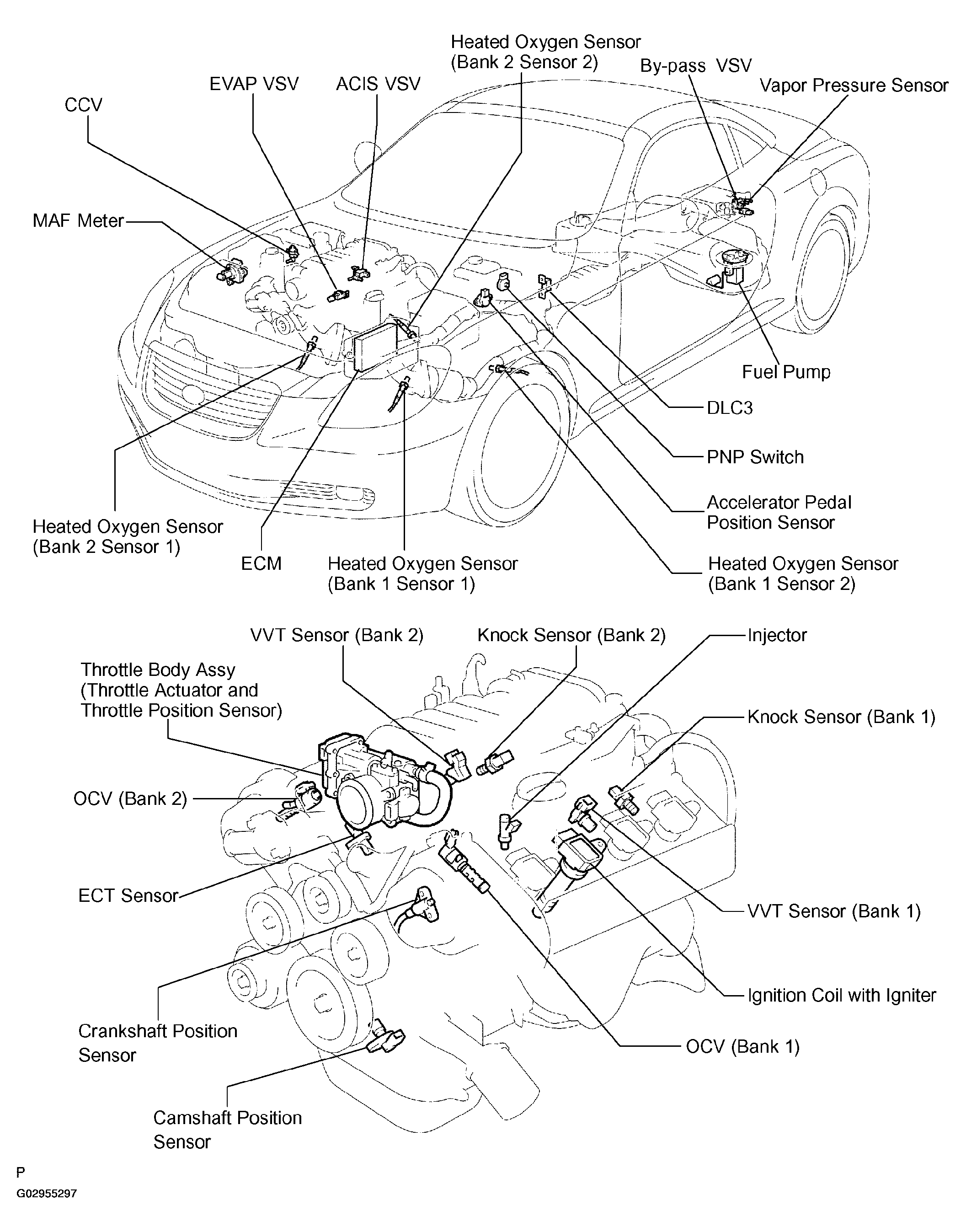

Fig 1: Identifying Location Of SFI System Components
G02955297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
