Rear Seat Belt: Components

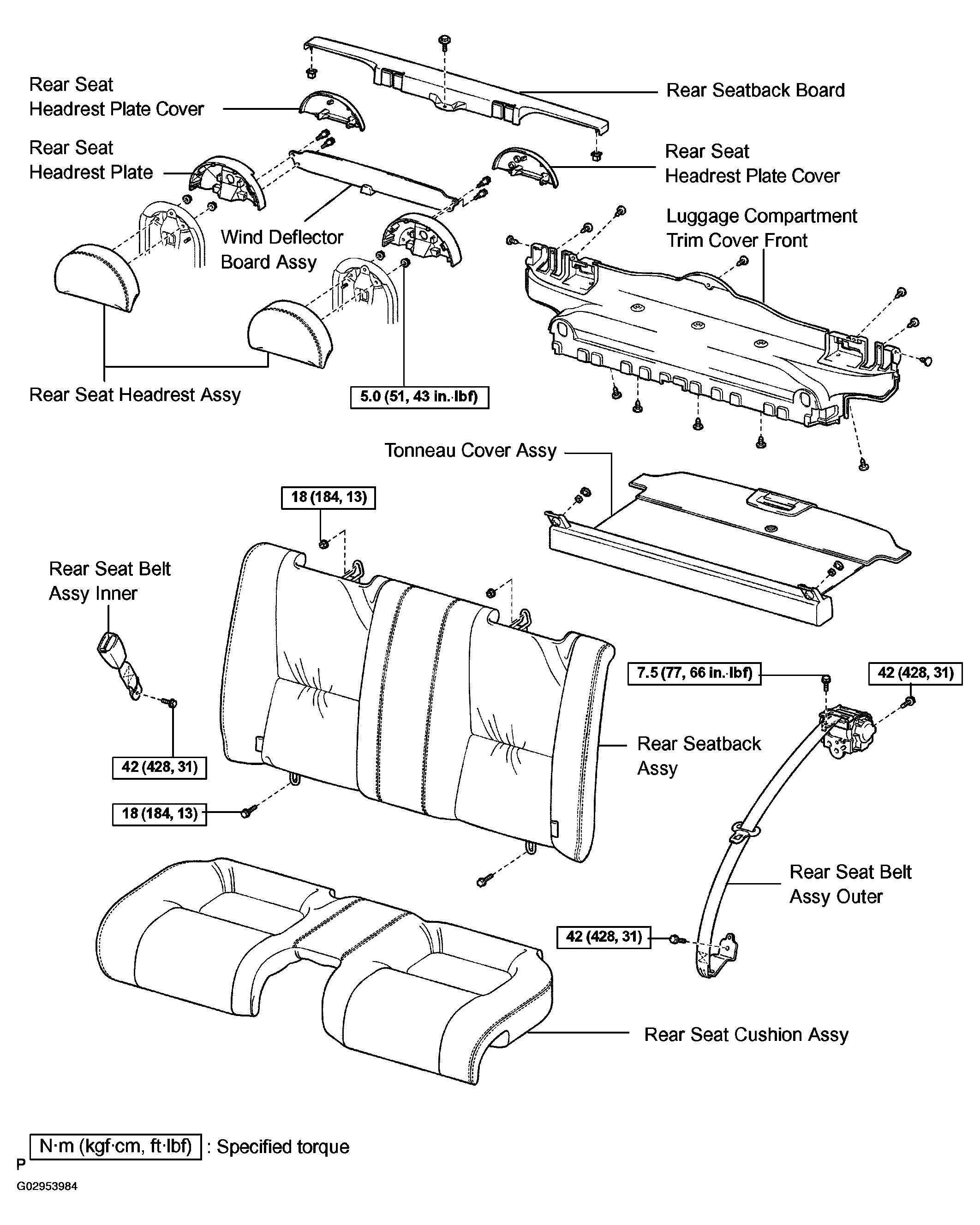

Fig 1: Exploded View Of Rear Seat Belt Components & Replacements
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
