System Diagram
System Diagram

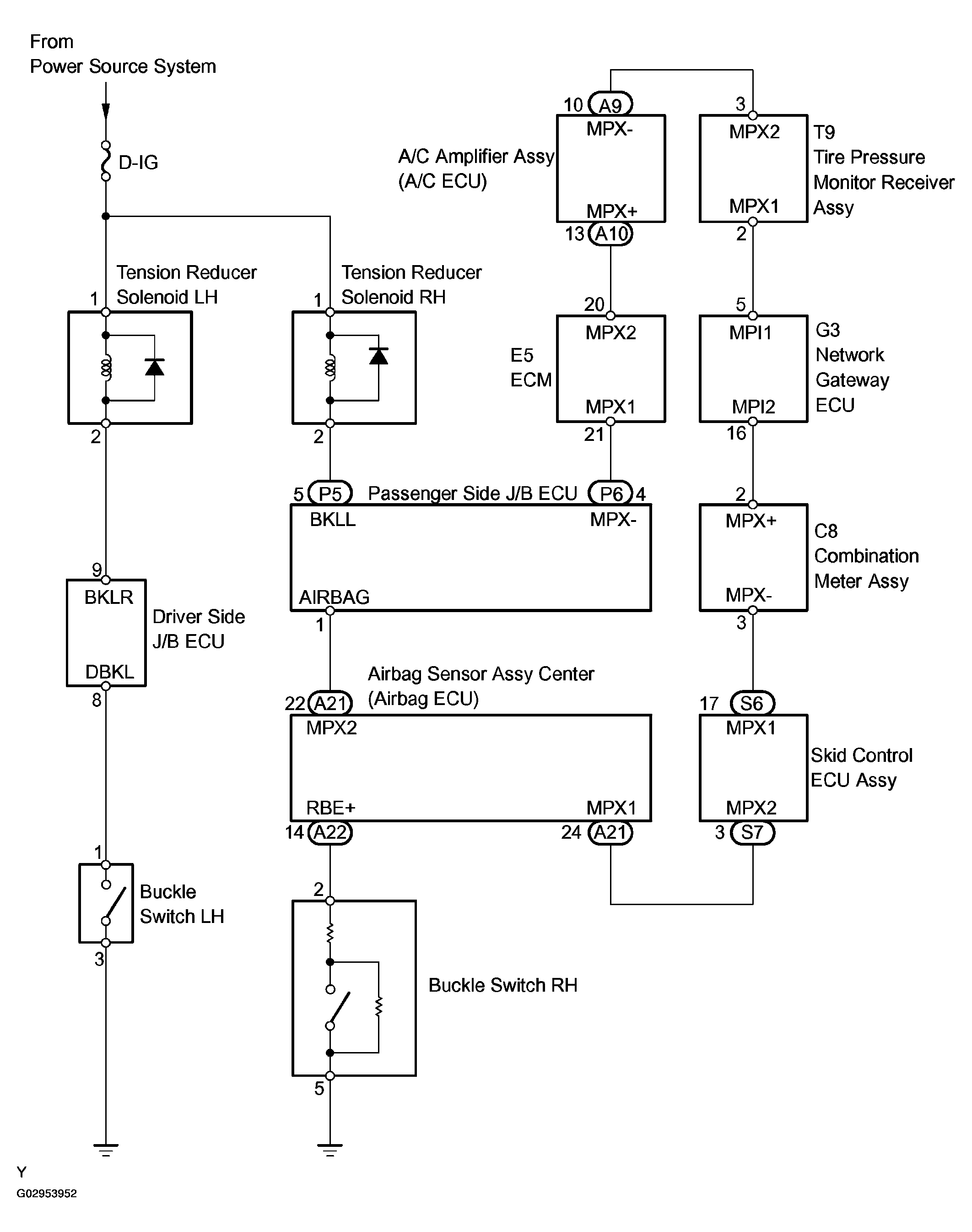

Fig 1: Seat Belt Tension Reducer System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
