Seat Belt Warning System: Location

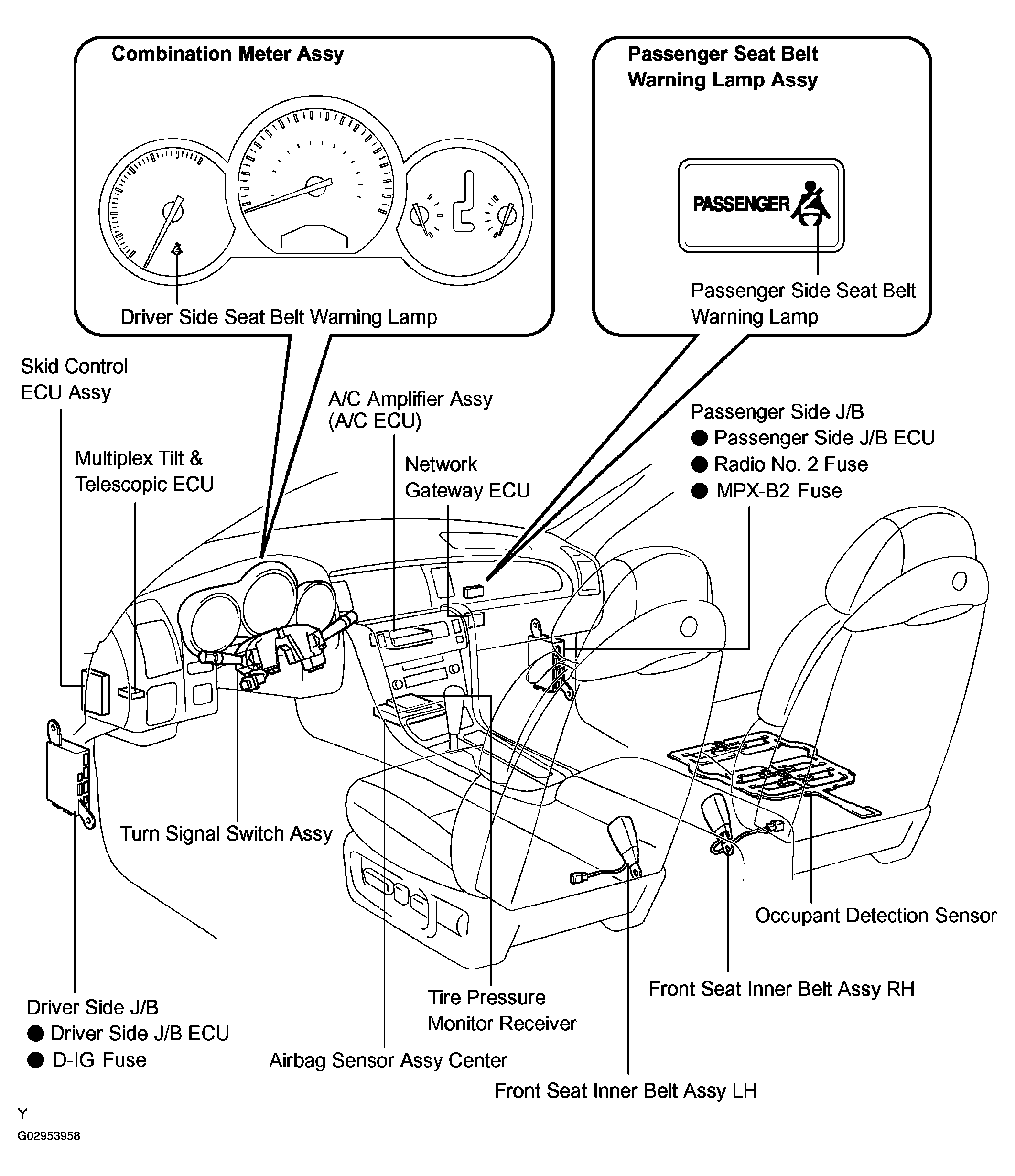

Fig 1: Identifying Locations Of Seat Belt Warning System Components & Replacements (1 Of 2)
G02953958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

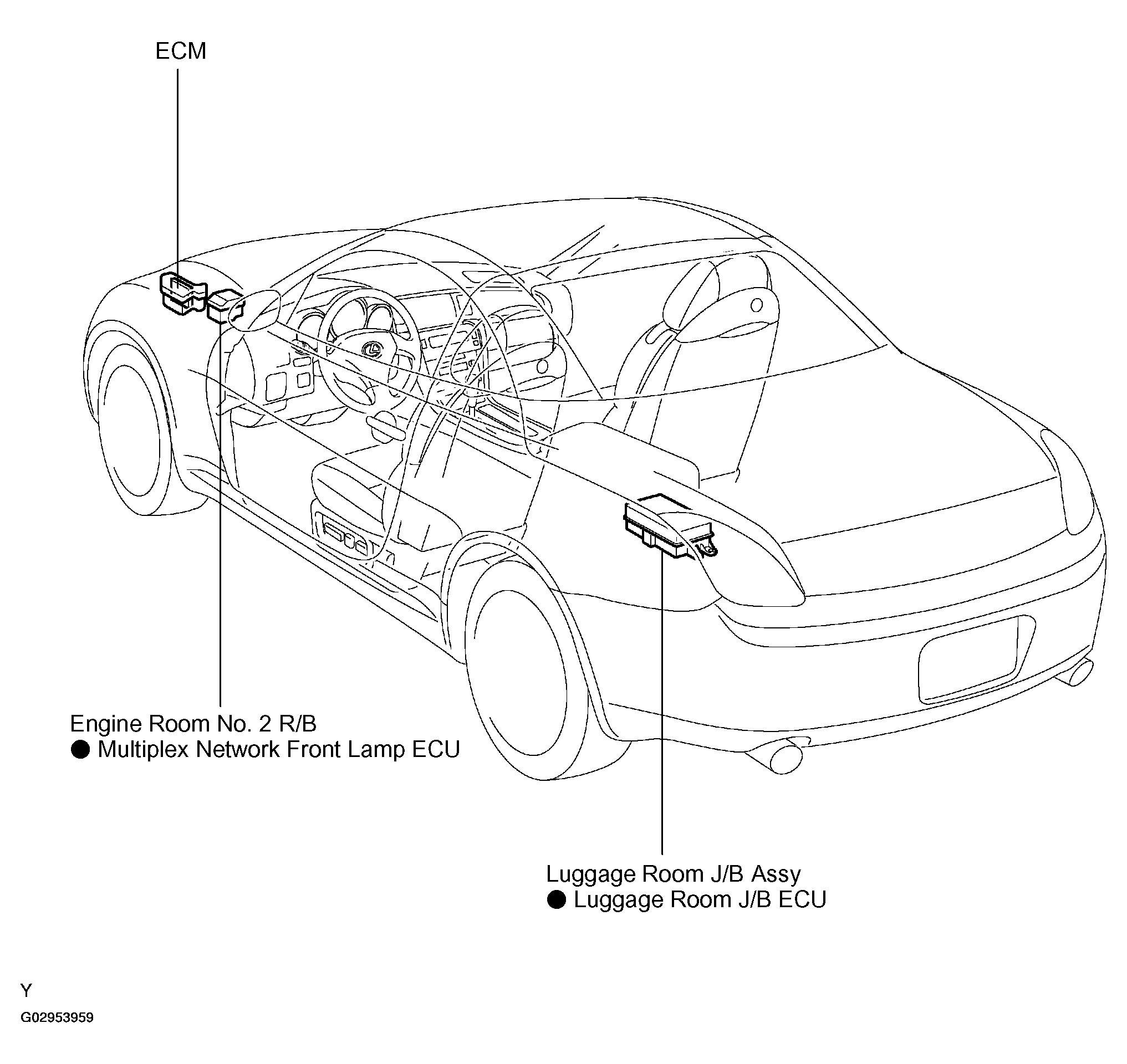

Fig 2: Identifying Locations Of Seat Belt Warning System Components & Replacements (2 Of 2)
G02953959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
