Lexus
›
2005
›
SC 430
›
Repair and Diagnosis
›
Restraints
›
Restraints Control Systems
›
Seat Belt
›
Seat Belt Warning System
›
System Diagram
›
Notes
System Diagram: Notes

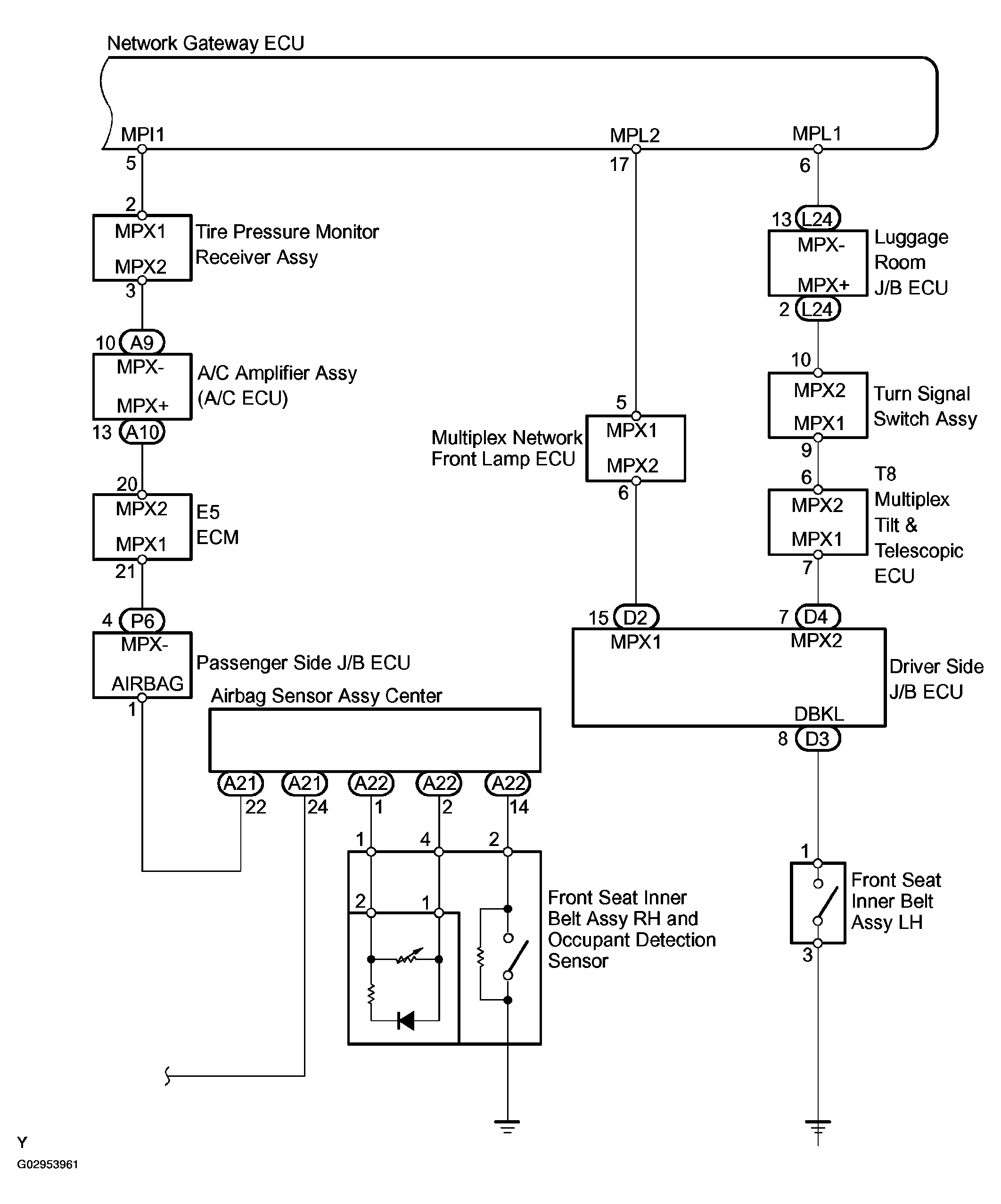

Fig 1: Seat Belt Warning System Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

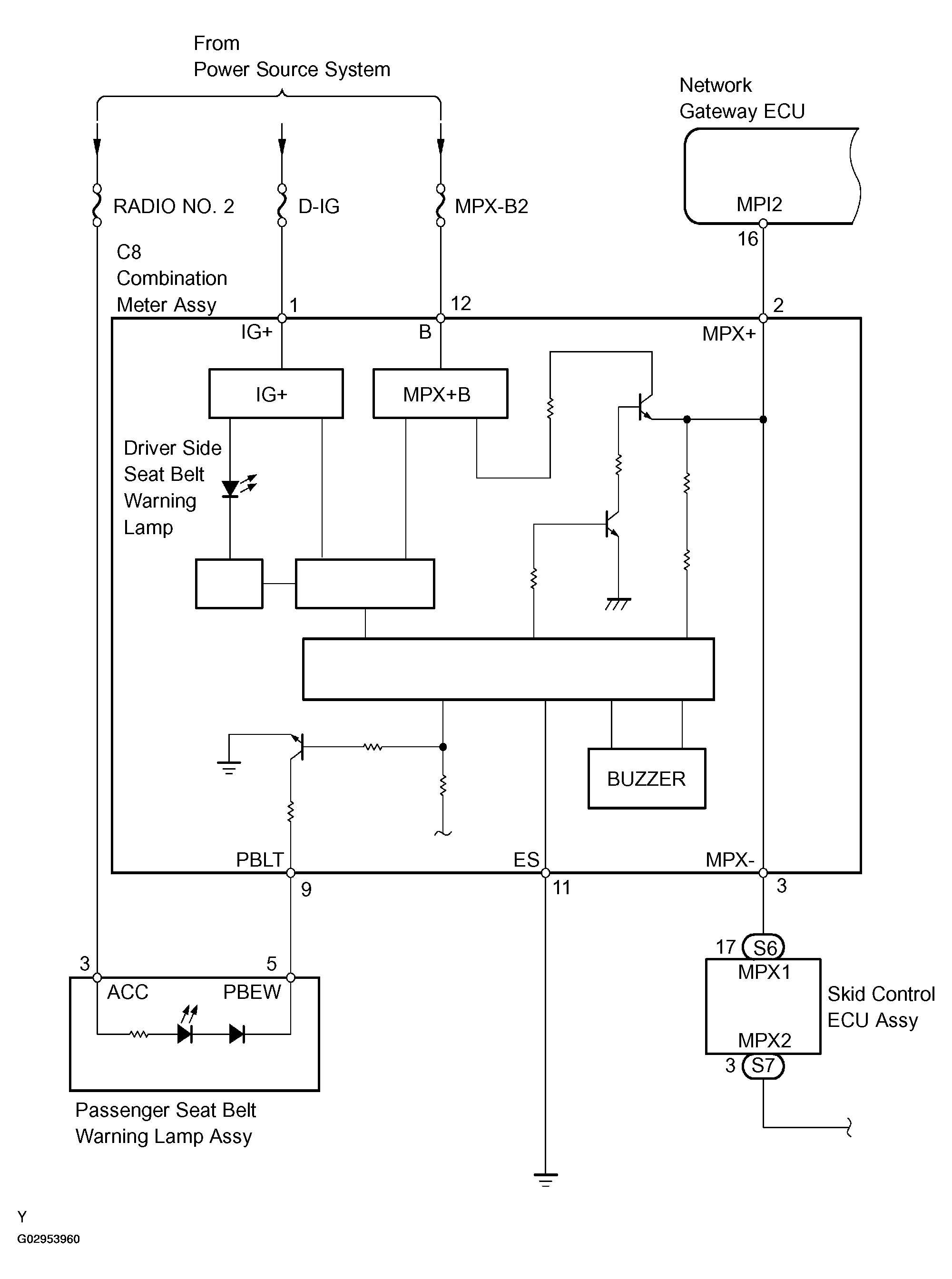

Fig 2: Seat Belt Warning System Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
