DTC Check/Clear

  1. CHECK DTC
    1. Connect the hand-held tester to the DLC3.
    2. Turn the ignition switch ON.
    3. Read the DTCs by following the prompts on the tester screen.

      HINT:

      Please refer to the hand-held tester operator's manual for further details.

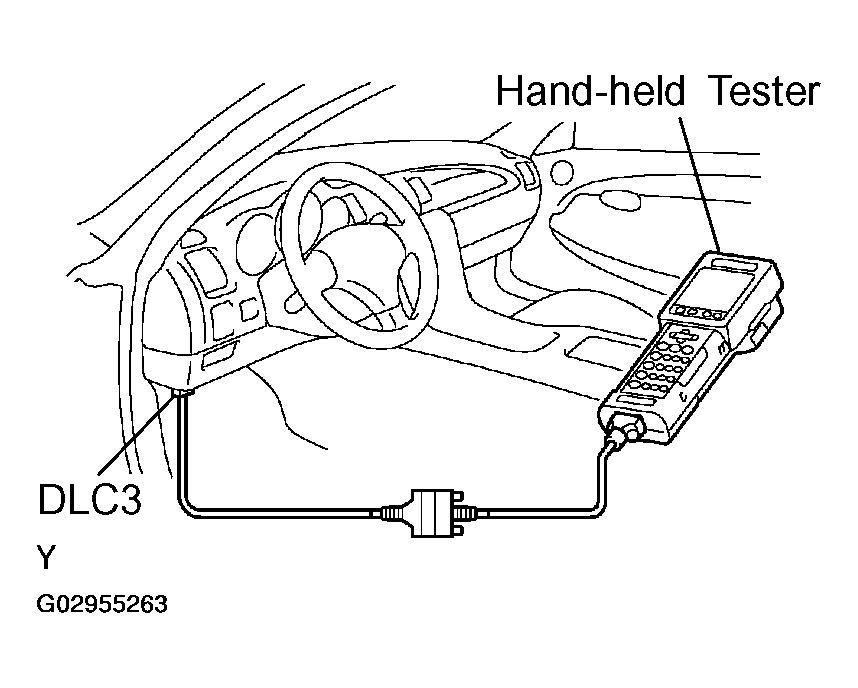

      Fig 1: Connecting Hand-Held Tester To DLC3 (2 Of 2)
      G02955263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CLEAR DTC
    1. Connect the hand-held tester to the DLC3.
    2. Turn the ignition switch ON.
    3. Erase the DTCs by following the directions on the tester screen.

      HINT:

      Please refer to the hand-held tester operator's manual for further details.
