Data List/Active Test

  1. READ DATA LIST

    HINT:

    Using the hand-held tester DATA LIST allows switch, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to save time.

    1. Connect the hand-held tester to the DLC3.
    2. Turn the ignition switch to the ON.
    3. Read the DATA LIST according to the display on the tester.

      Multiplex tilt & telescopic ECU assy:

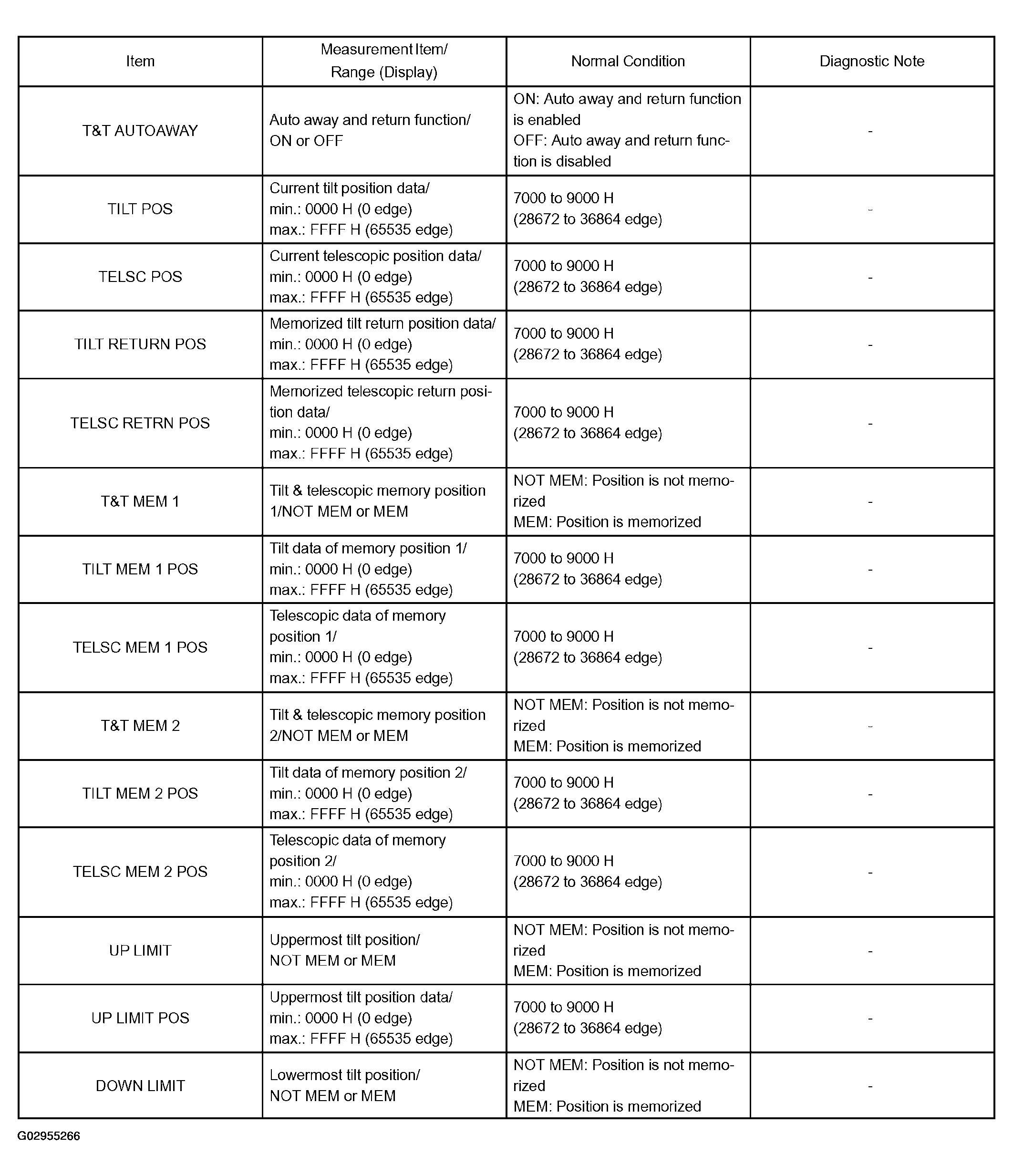

      Fig 1: Data List/Active Test Table (1 Of 2)
      G02955266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

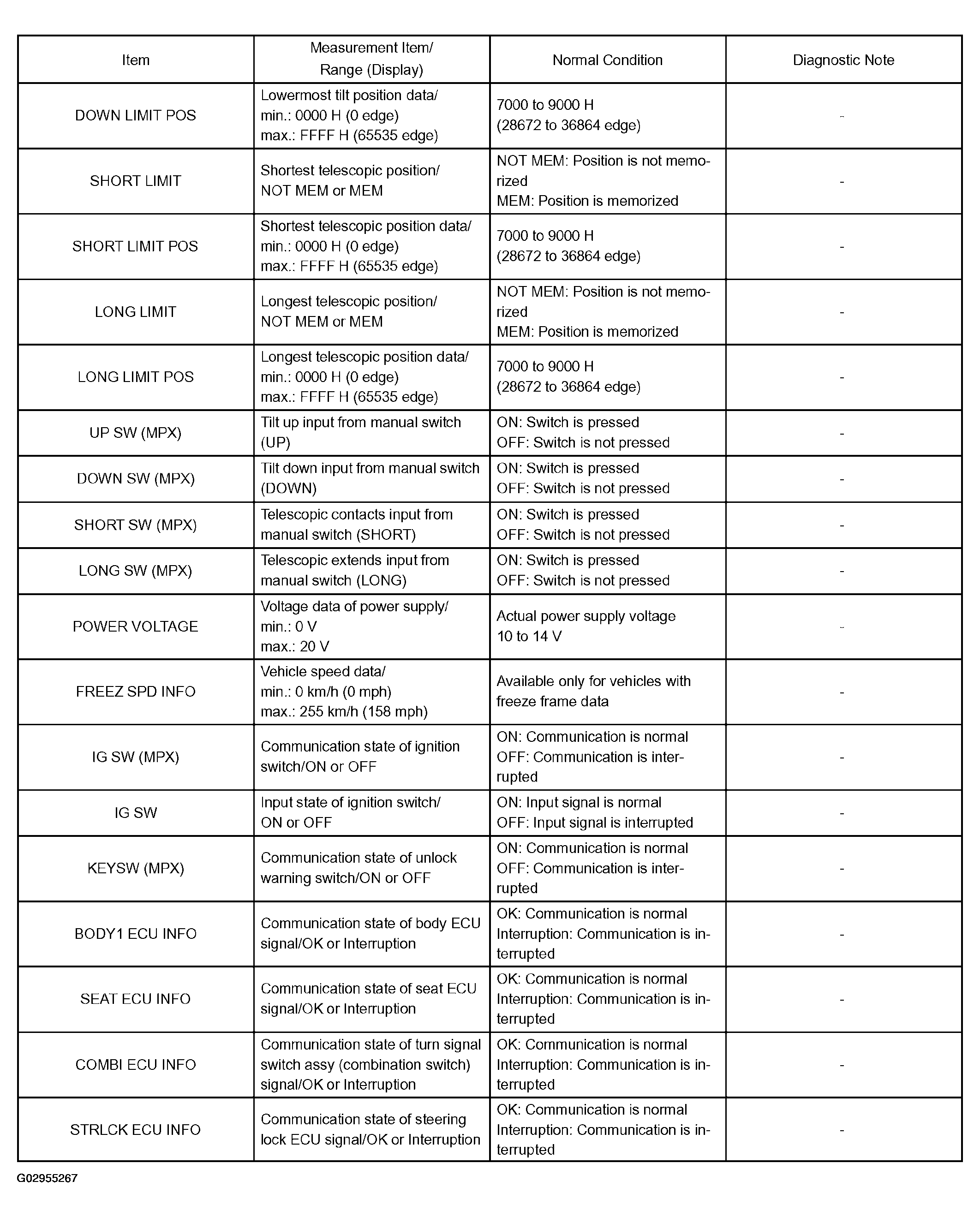

      Fig 2: Data List/Active Test Table (2 Of 2)
      G02955267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. PERFORM ACTIVE TEST

    HINT:

    Performing the hand-held tester's ACTIVE TEST allows relay, VSV, actuator, and other items to be operated without removing any parts. Performing the ACTIVE TEST early in troubleshooting is one way to save time. The DATA LIST can be displayed during the ACTIVE TEST.

    1. Connect the hand-held tester to the DLC3.
    2. Turn the ignition switch ON.
    3. Perform the ACTIVE TEST according to the display to the tester.

      Multiplex tilt & telescopic ECU assy:

      DIAGNOSIS PROCEDURE

      Item Vehicle Condition/Test Details Diagnostic Note
      TILT Tilt operation/UP or DOWN -
      TELESCO Telescopic operation/LONG or SHORT -
