Pattern Select Switch Circuit: Wiring Diagram

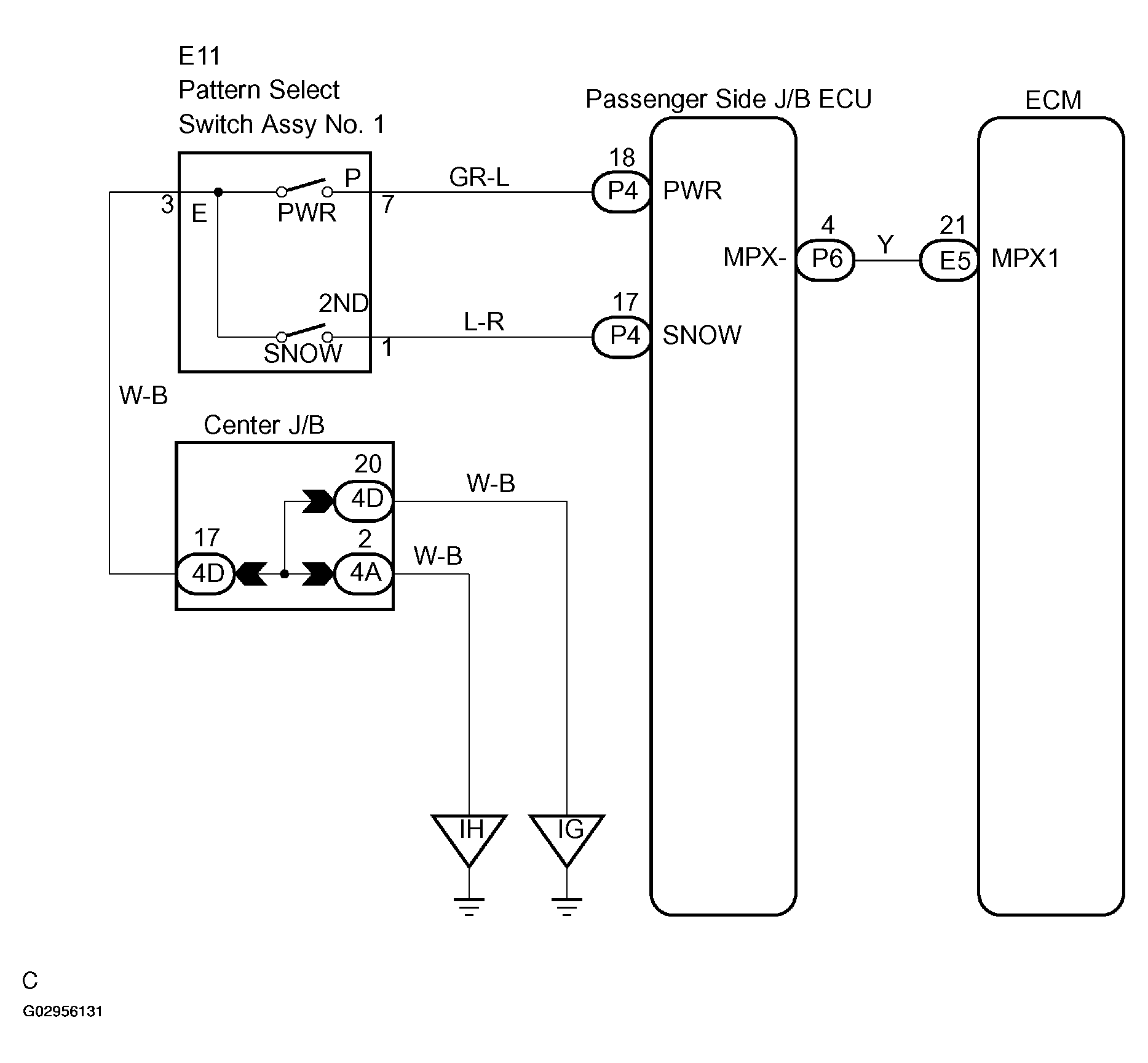

Fig 1: Pattern Select Switch Wiring Diagram
G02956131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
