Mirror Switch Circuit: Wiring Diagram

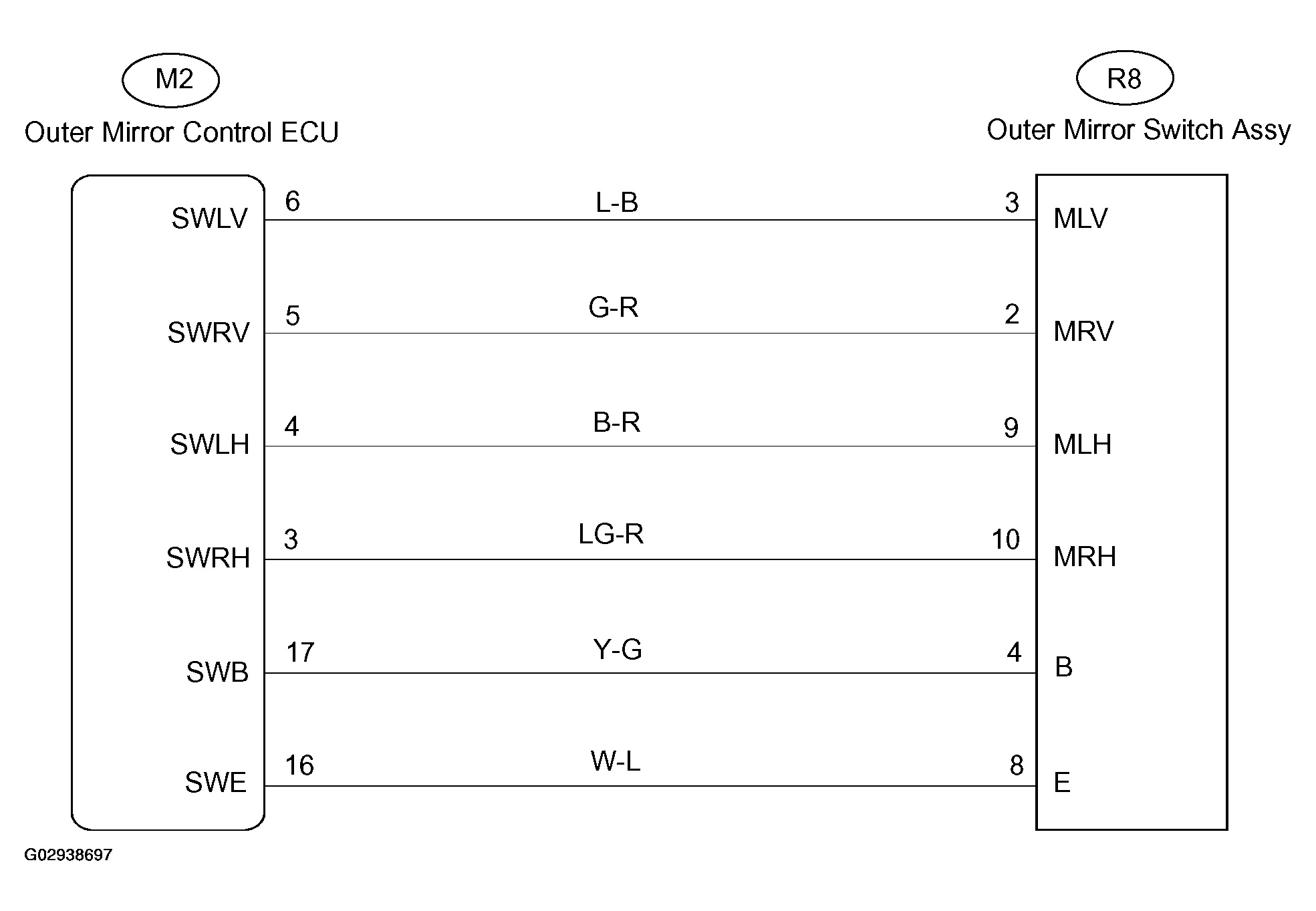

Fig 1: Mirror Switch Circuit Diagram

G02938697

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
