Cigarette Lighter and Power Outlet: Notes

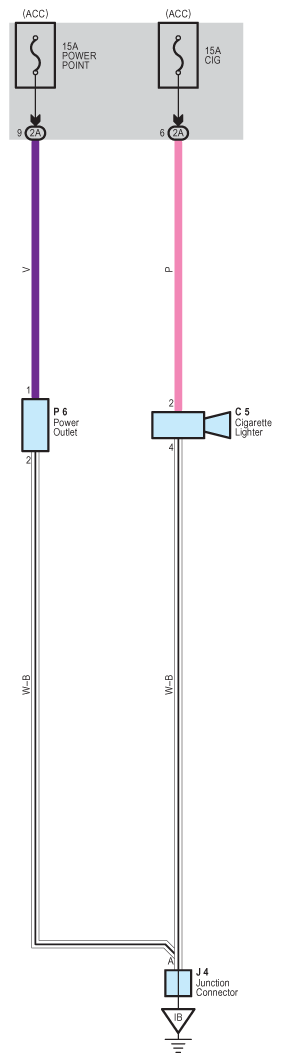

Fig 1: Cigarette Lighter And Power Outlet - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
