Climate Control Seat: Notes

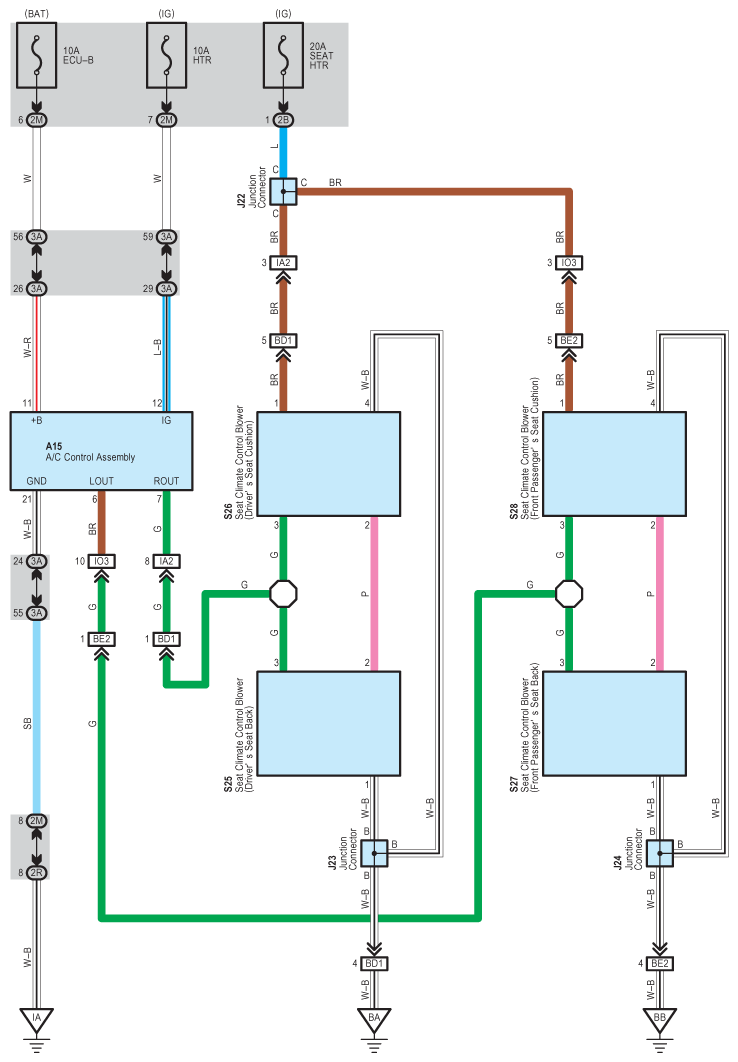

Fig 1: Climate Control Seat - Wiring Diagram
G08930120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
