Lexus
›
2006
›
ES 330
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Cruise Control
›
Notes
Cruise Control: Notes

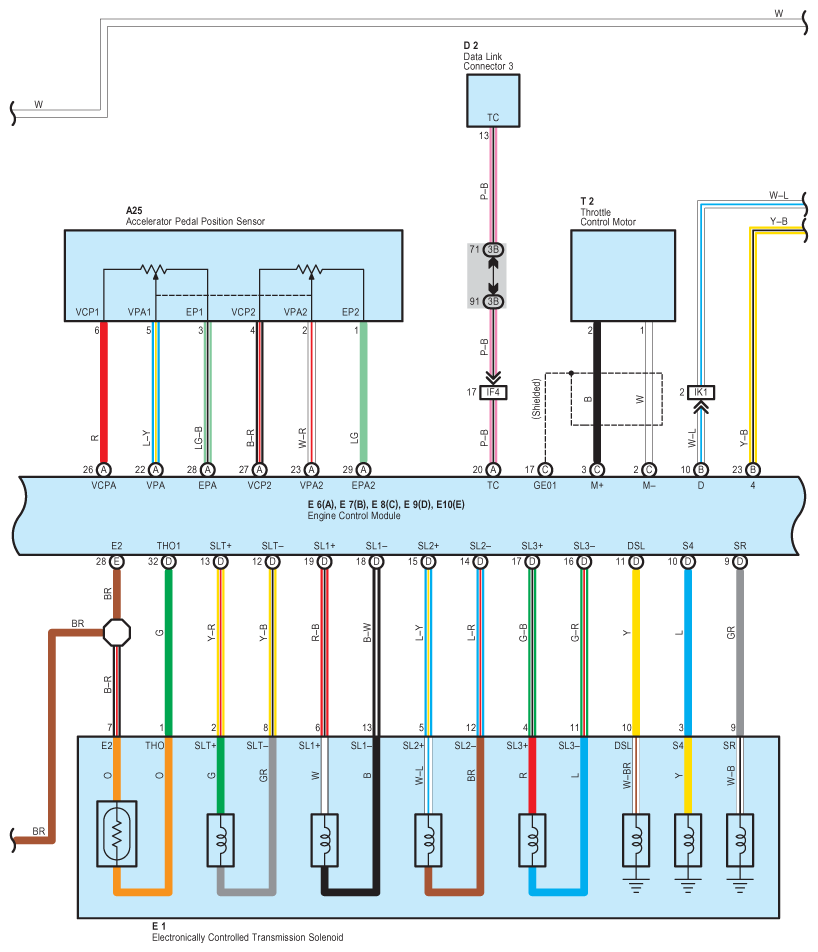

Fig 1: Cruise Control - Wiring Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

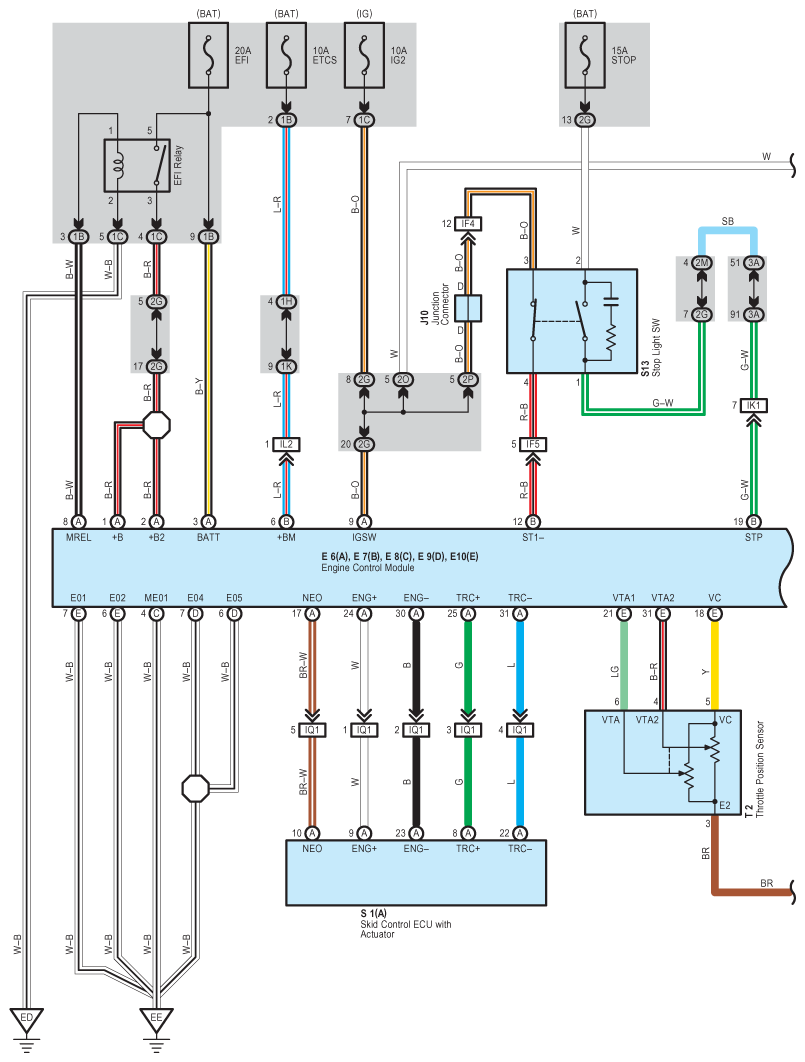

Fig 2: Cruise Control - Wiring Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

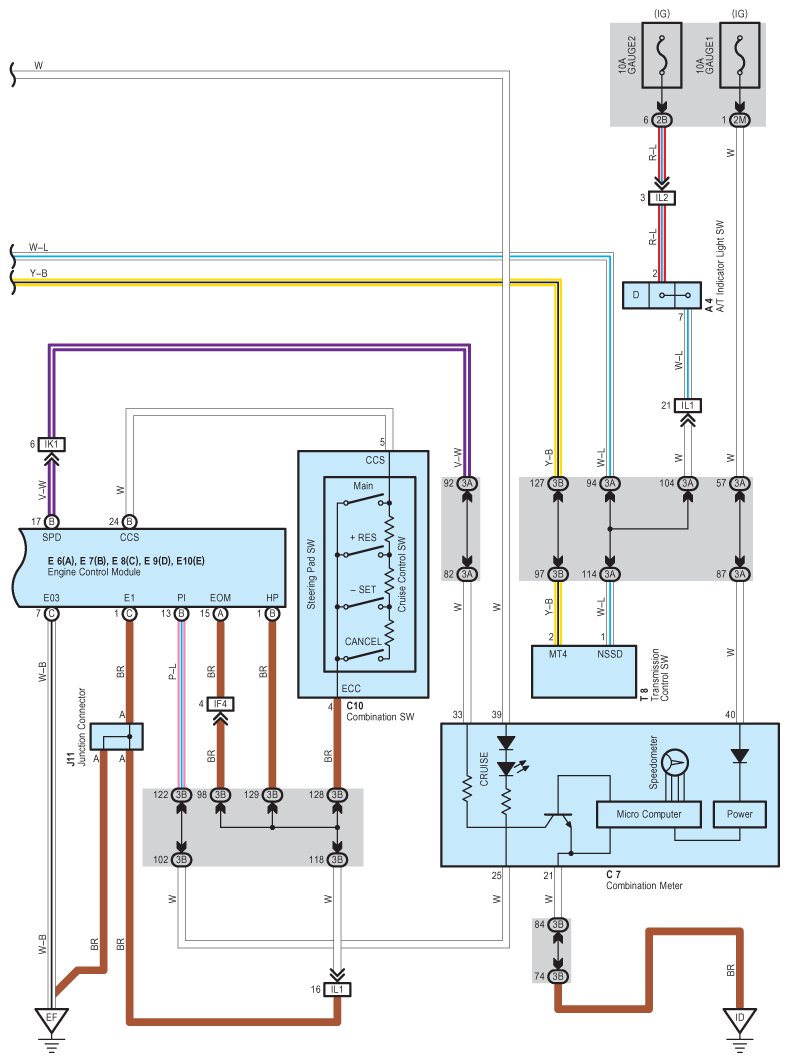

Fig 3: Cruise Control - Wiring Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
