Engine Control: Notes

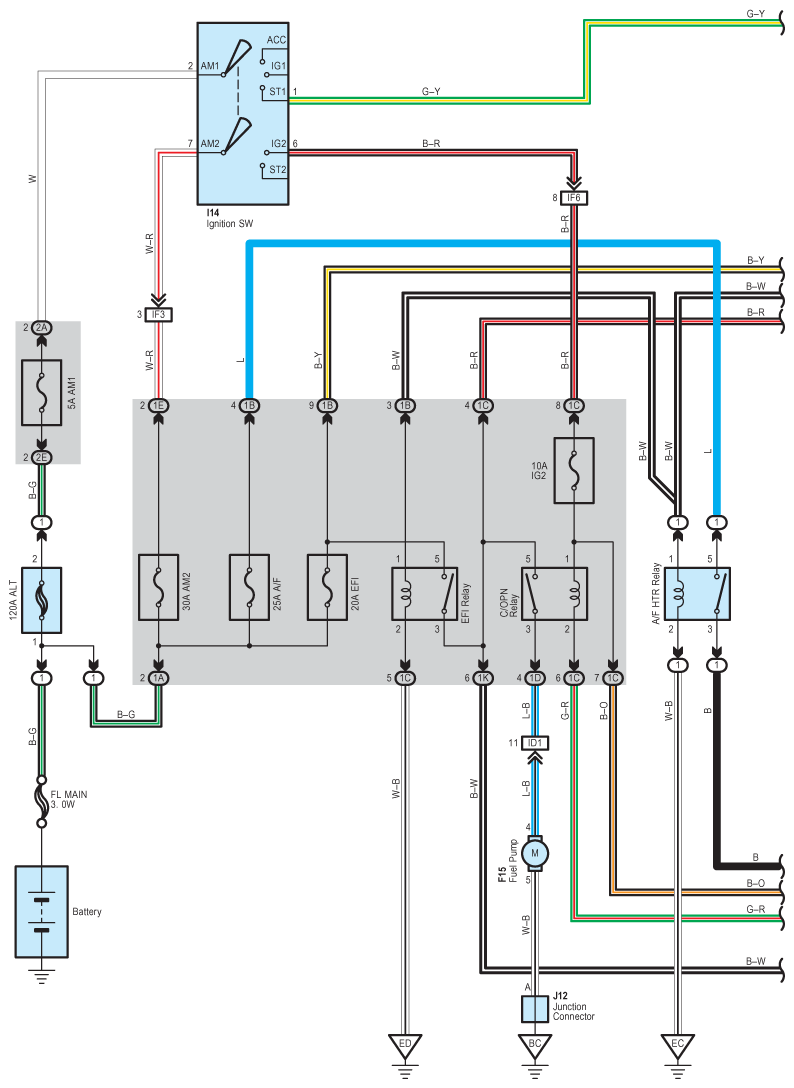

Fig 1: Engine Control - Wiring Diagram (1 Of 9)

G08929990

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

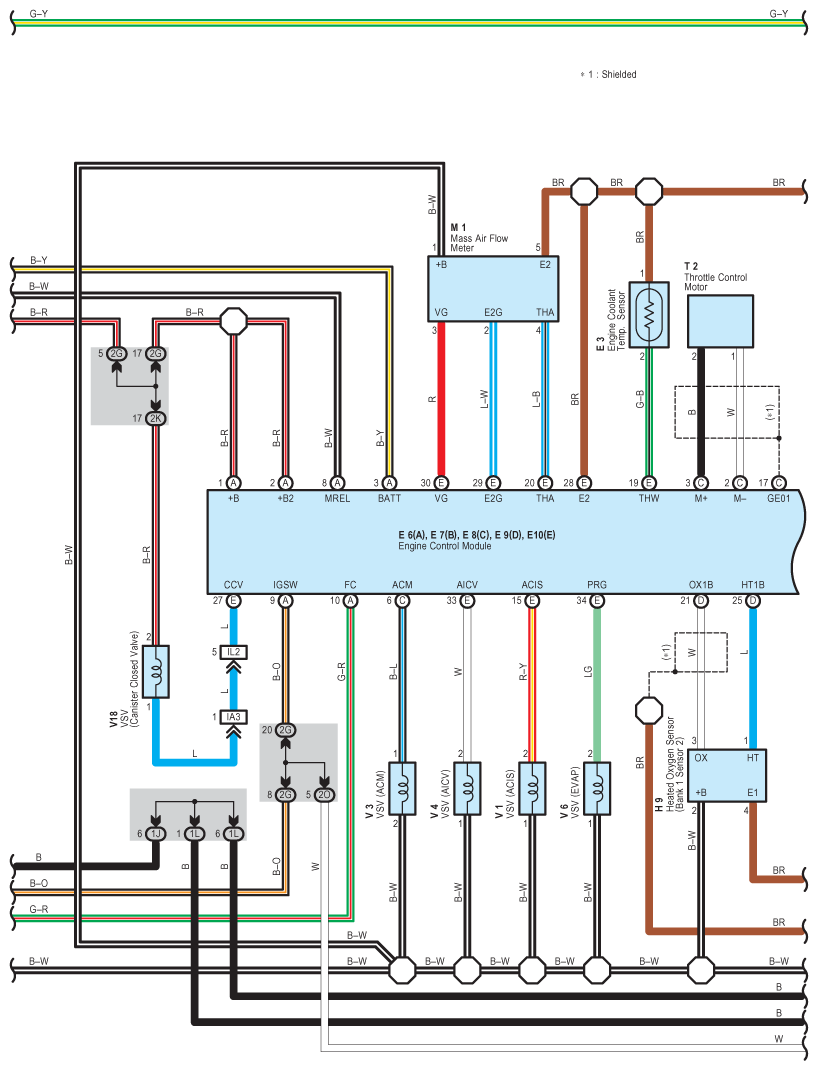

Fig 2: Engine Control - Wiring Diagram (2 Of 9)

G08929991

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

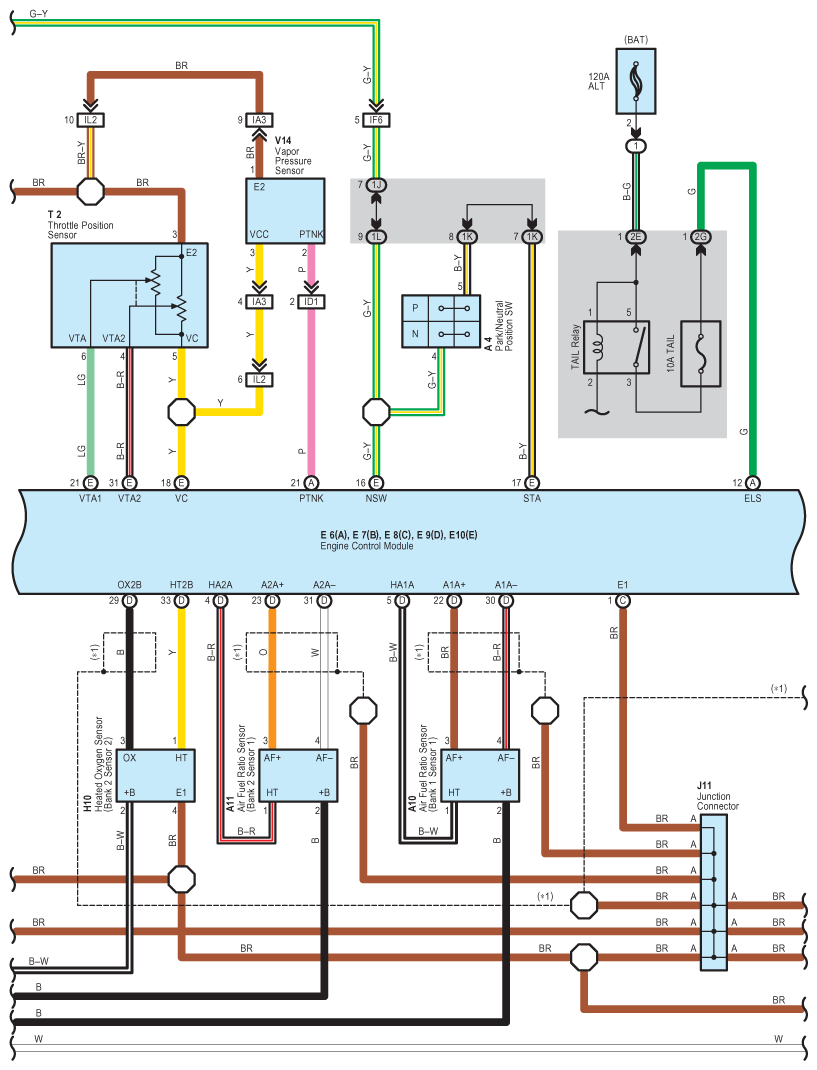

Fig 3: Engine Control - Wiring Diagram (3 Of 9)

G08929992

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

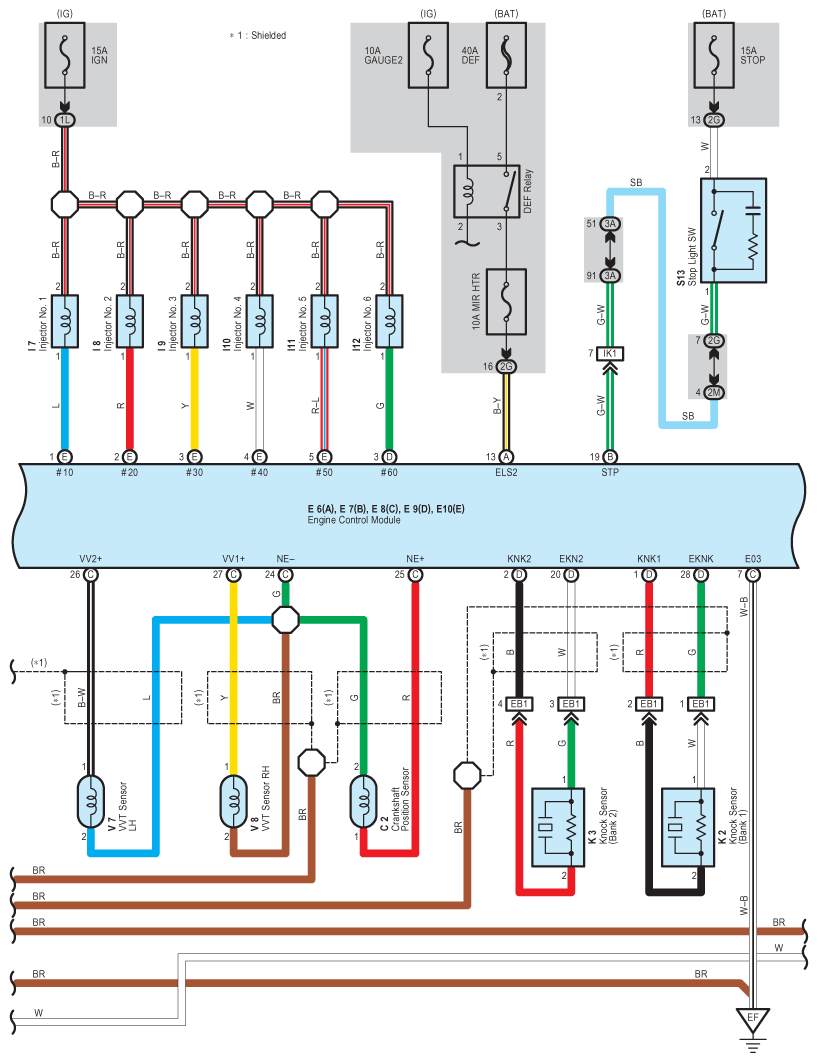

Fig 4: Engine Control - Wiring Diagram (4 Of 9)

G08929993

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

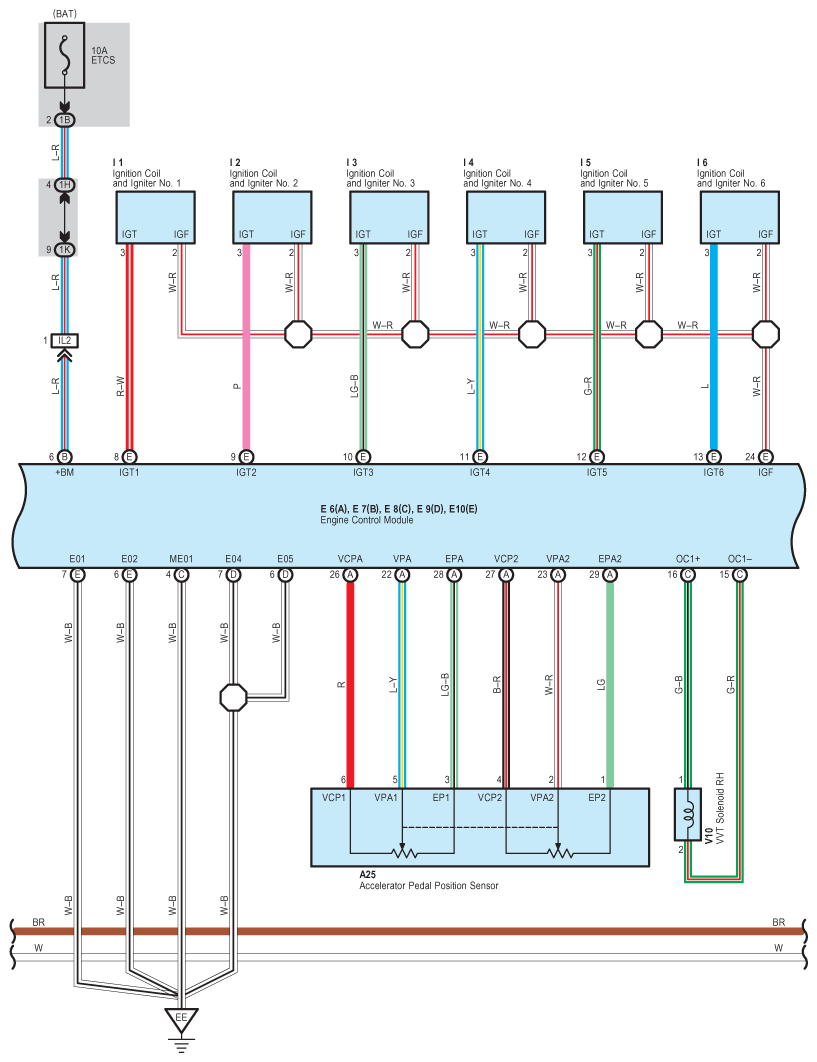

Fig 5: Engine Control - Wiring Diagram (5 Of 9)

G08929994

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

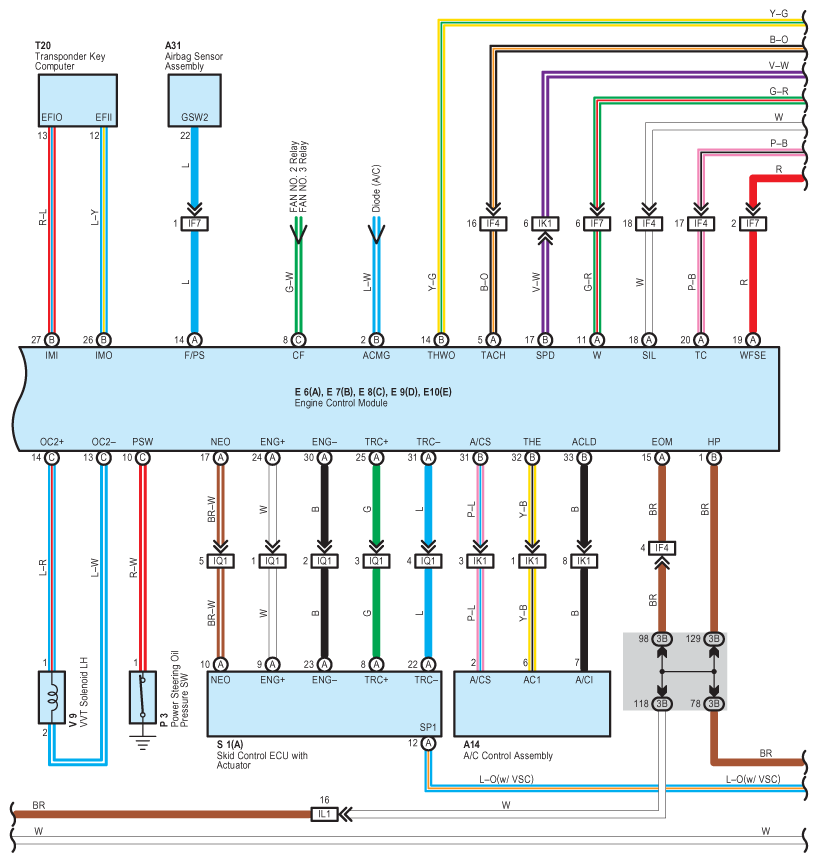

Fig 6: Engine Control - Wiring Diagram (6 Of 9)

G08929995

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

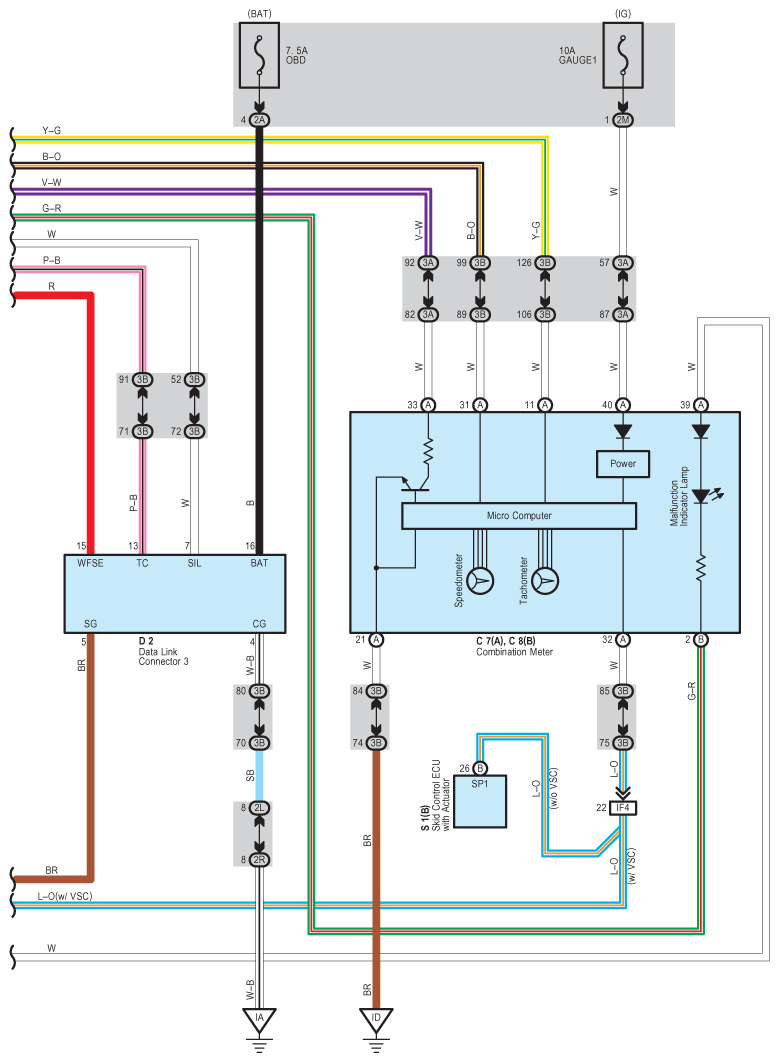

Fig 7: Engine Control - Wiring Diagram (7 Of 9)

G08929996

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
