Fog Light: Notes

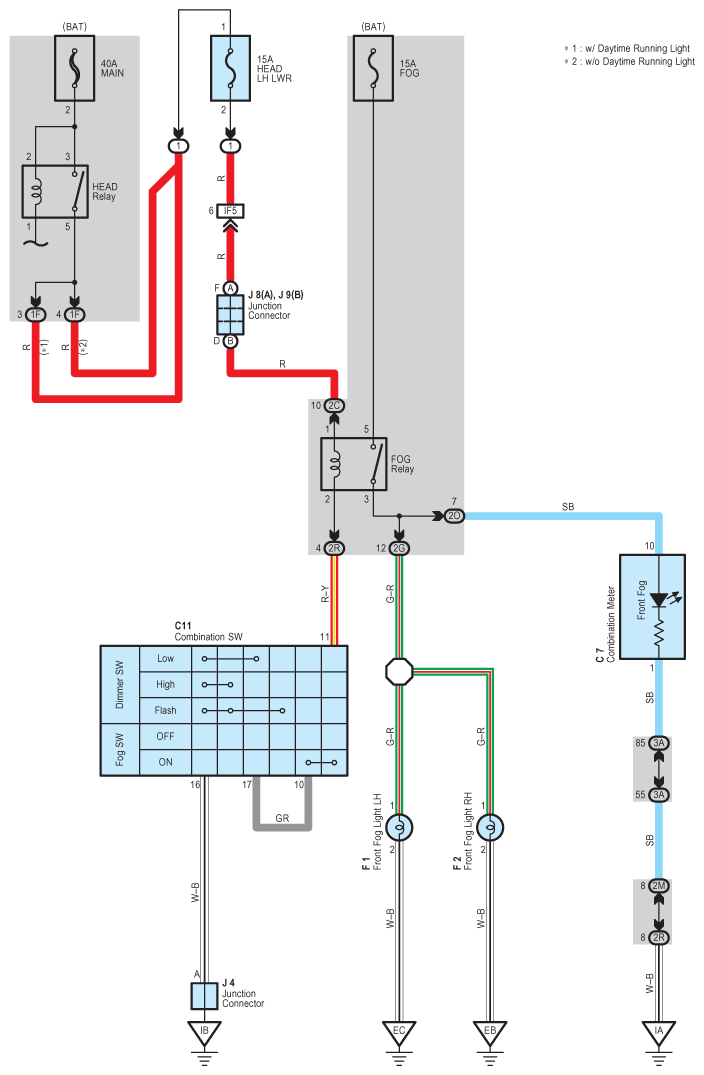

Fig 1: Fog Light - Wiring Diagram

G08930054

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
