Headlight with Daytime Running Light: Notes

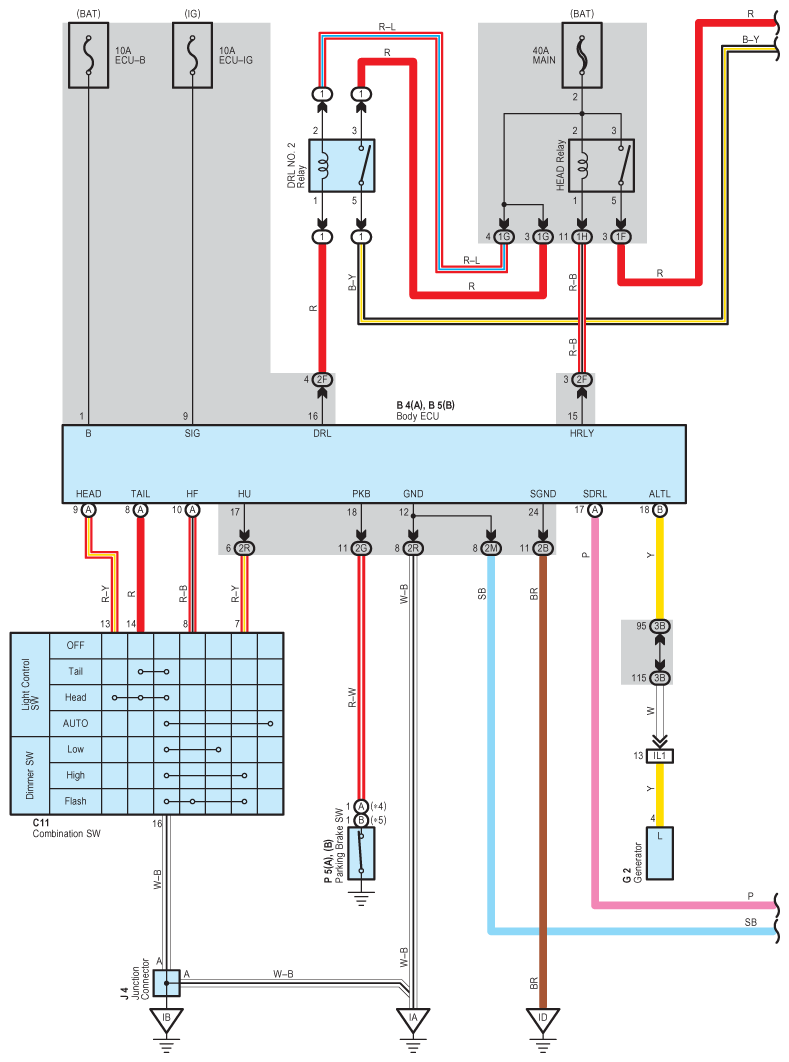

Fig 1: Headlight With Daytime Running Light - Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

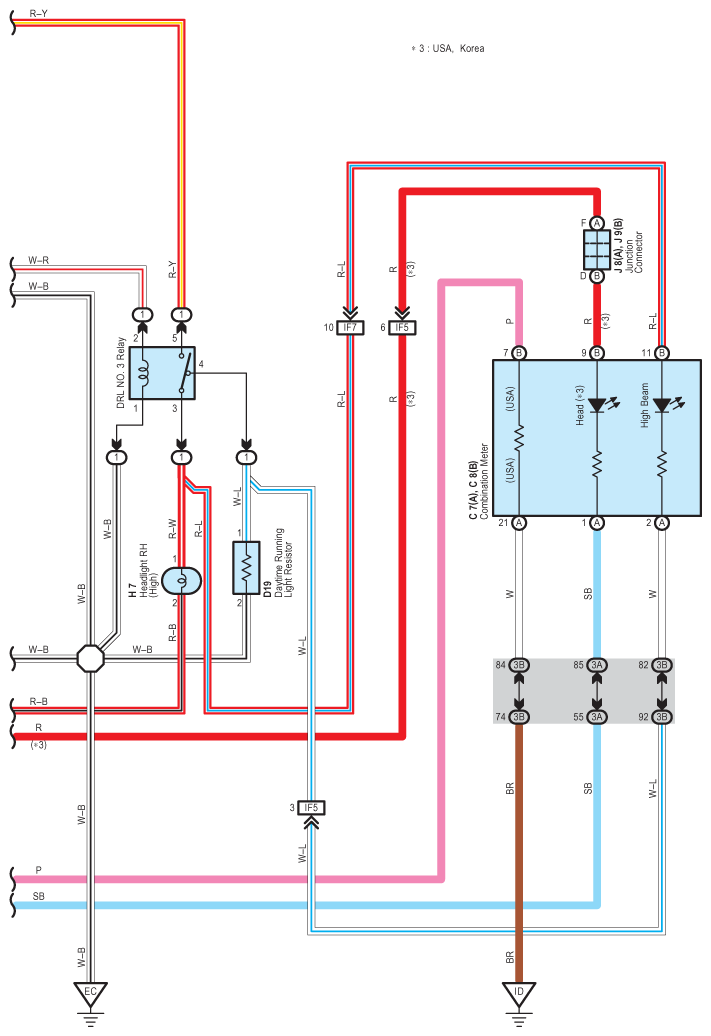

Fig 2: Headlight With Daytime Running Light - Wiring Diagram (2 Of 3)

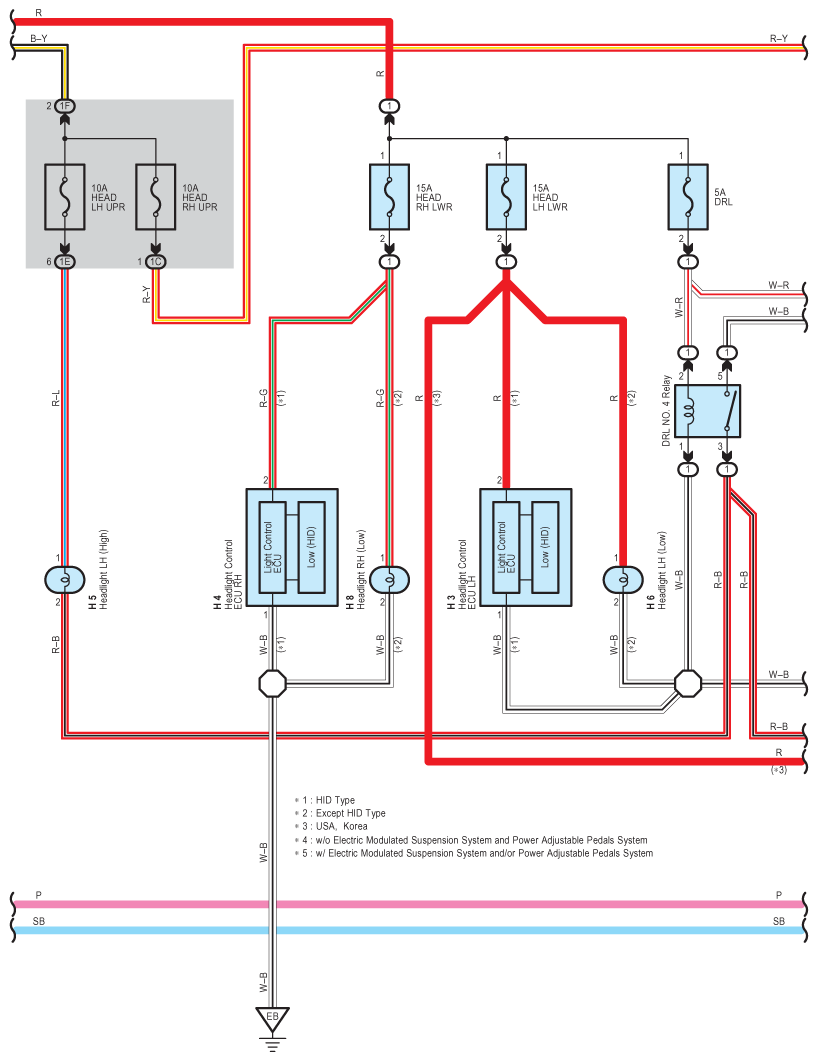

Fig 3: Headlight With Daytime Running Light - Wiring Diagram (3 Of 3)
