OEM System Circuits: Horn: Notes

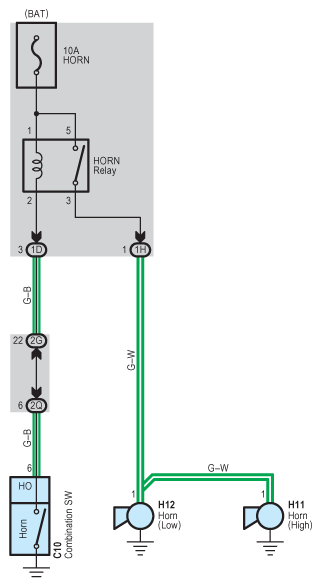

Fig 1: Horn - Wiring Diagram
G08930075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
