Key Reminder
›
Notes
Key Reminder: Notes

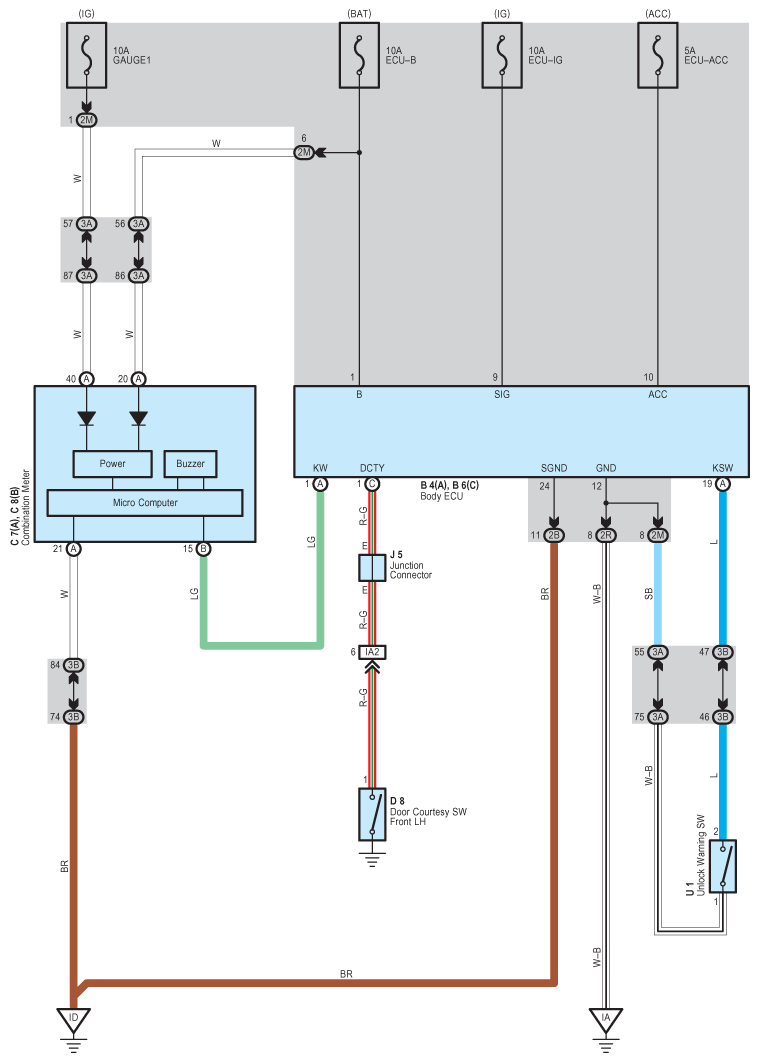

Fig 1: Key Reminder - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
