Radiator Fan and Condenser Fan
›
Notes
Radiator Fan and Condenser Fan: Notes

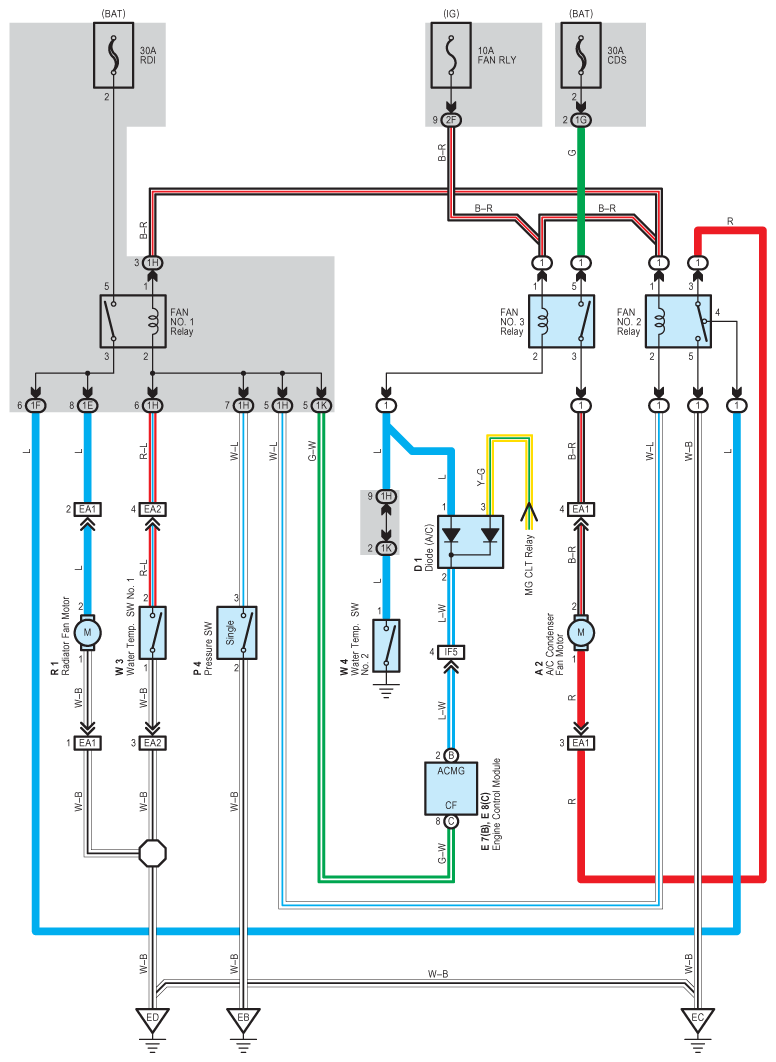

Fig 1: Radiator Fan And Condenser Fan - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
