Rear Sunshade: Notes

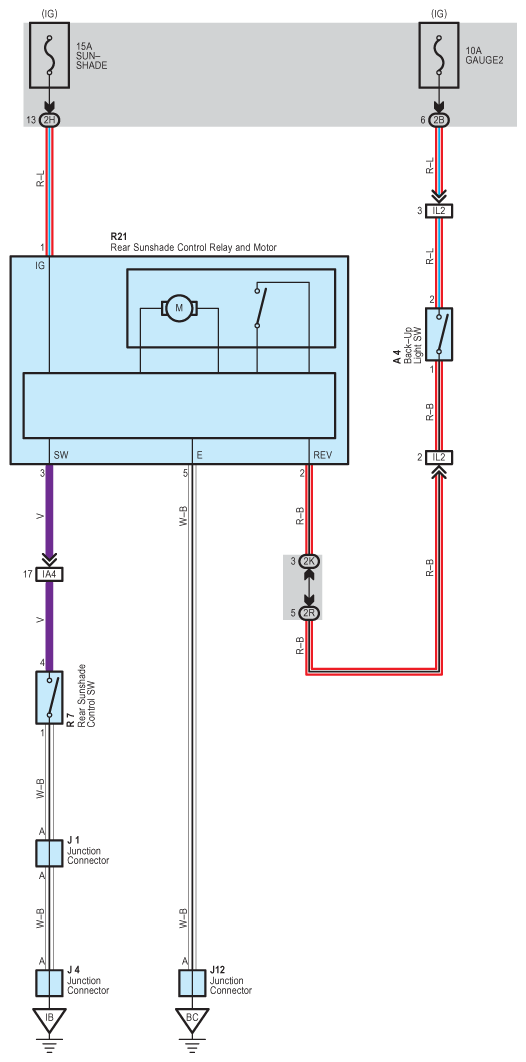

Fig 1: Rear Sunshade - Wiring Diagram

G08930097

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
