Shift Lock: Notes

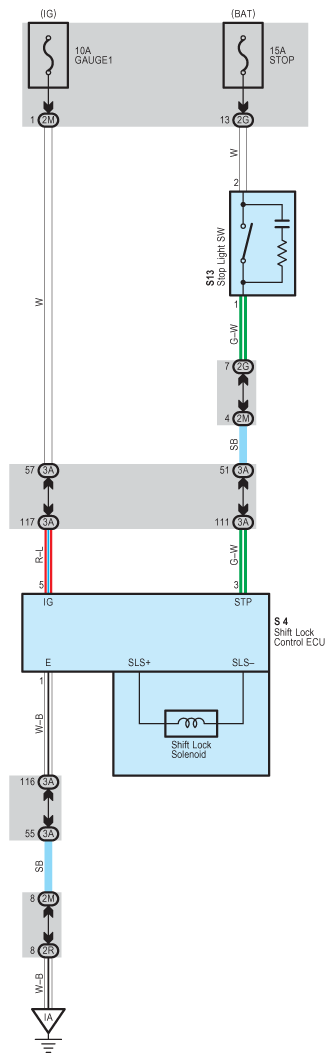

Fig 1: Shift Lock - Wiring Diagram
G08930078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
