Taillight and Stop Light: Notes

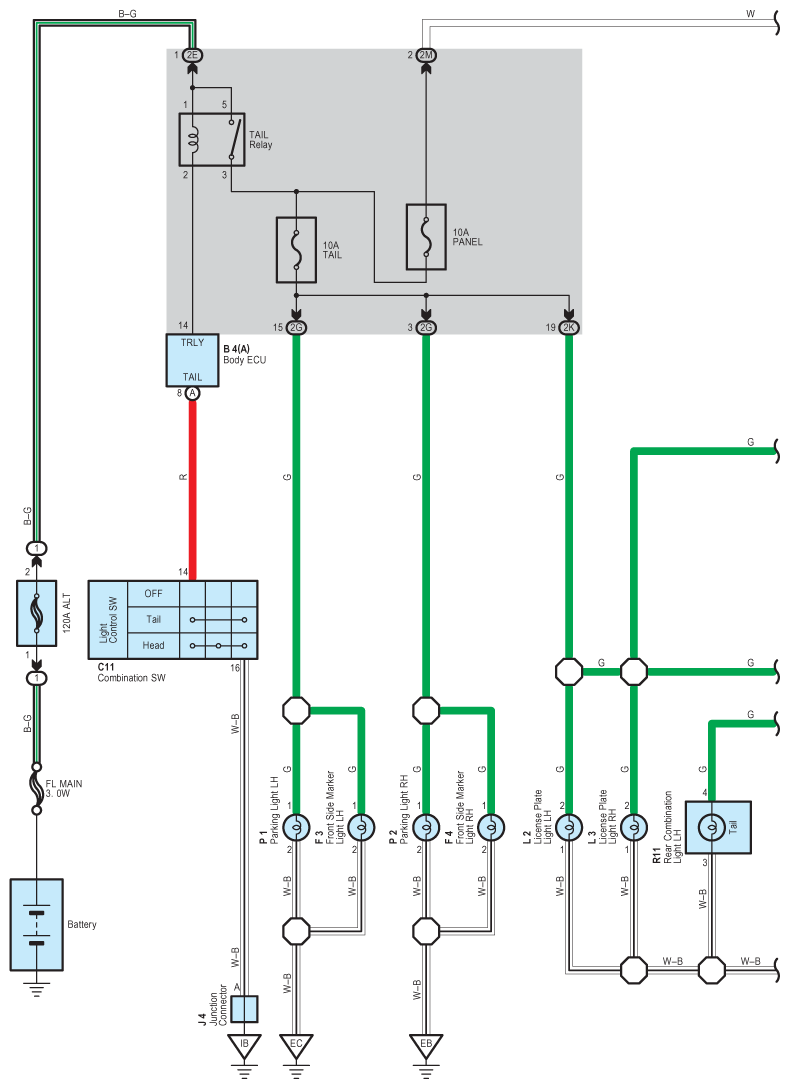

Fig 1: Taillight And Stop Light - Wiring Diagram (1 Of 2)
G08930046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

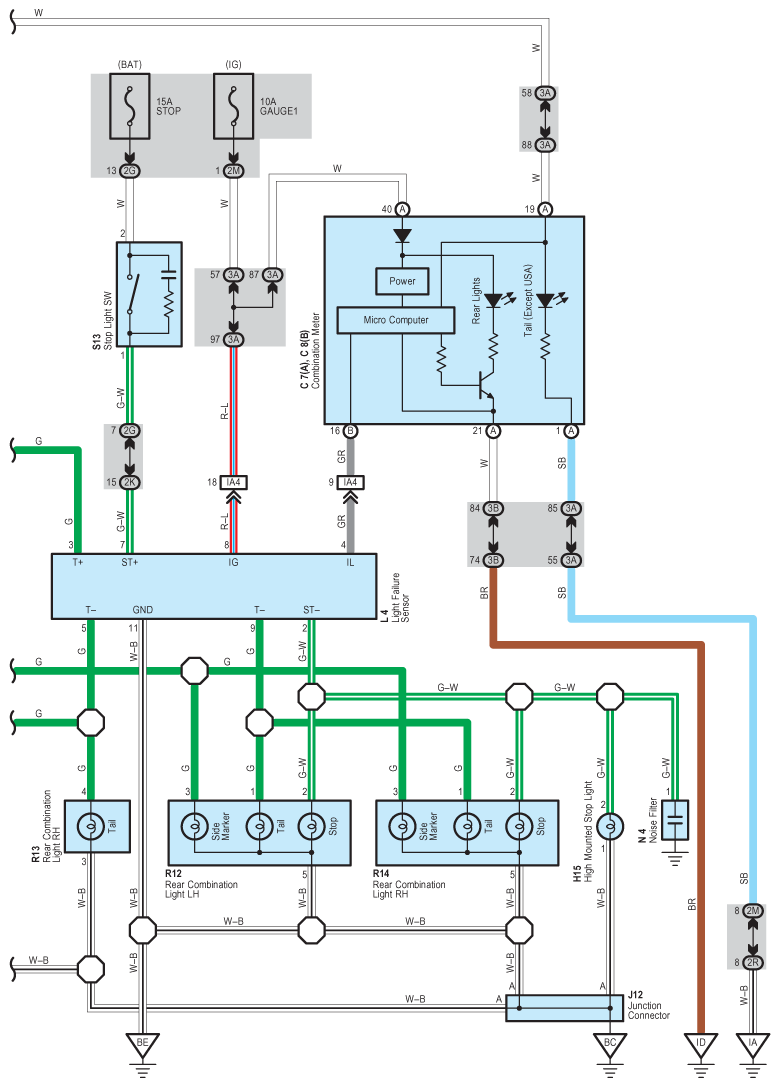

Fig 2: Taillight And Stop Light - Wiring Diagram (2 Of 2)
G08930047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
